Chapter 1
1.4.1 LSX (Label Width)
Specifies the width or "X" direction of the label in the unit of measure selected by the "^D564)"
command. The maximum LSX is the width of the print head installed in the printer. This parameter
is always required for proper script operation. See also ^D631)n command.
1.4.2 LSY (Label Height)
Specifies the height or "Y" direction of the label in the unit of measure selected by the "^D564)"
command. The maximum LSY height is 24". This parameter is always required for proper script
operation. See also ^D632)n command.
1.4.3 GAP (Gap Size)
The GAP is the height of the registration mark on each label and/or tag. This would be the backing
material found between die-cut labels, blowhole sense mark, and/or the blackline height. The value
is entered using the current unit of measure selected by the "^D564)" command. See also ^D633)n
command.
1.4.4 DRM (Distance to Registration Mark)
This parameter used when the registration mark is not located at the edge of the media. The "DRM"
is the distance from the leading edge of the media to the beginning of the registration mark. The
DRM is entered using the current selected unit of measure selected by the "^D564)" command.
See also ^D634)n command.

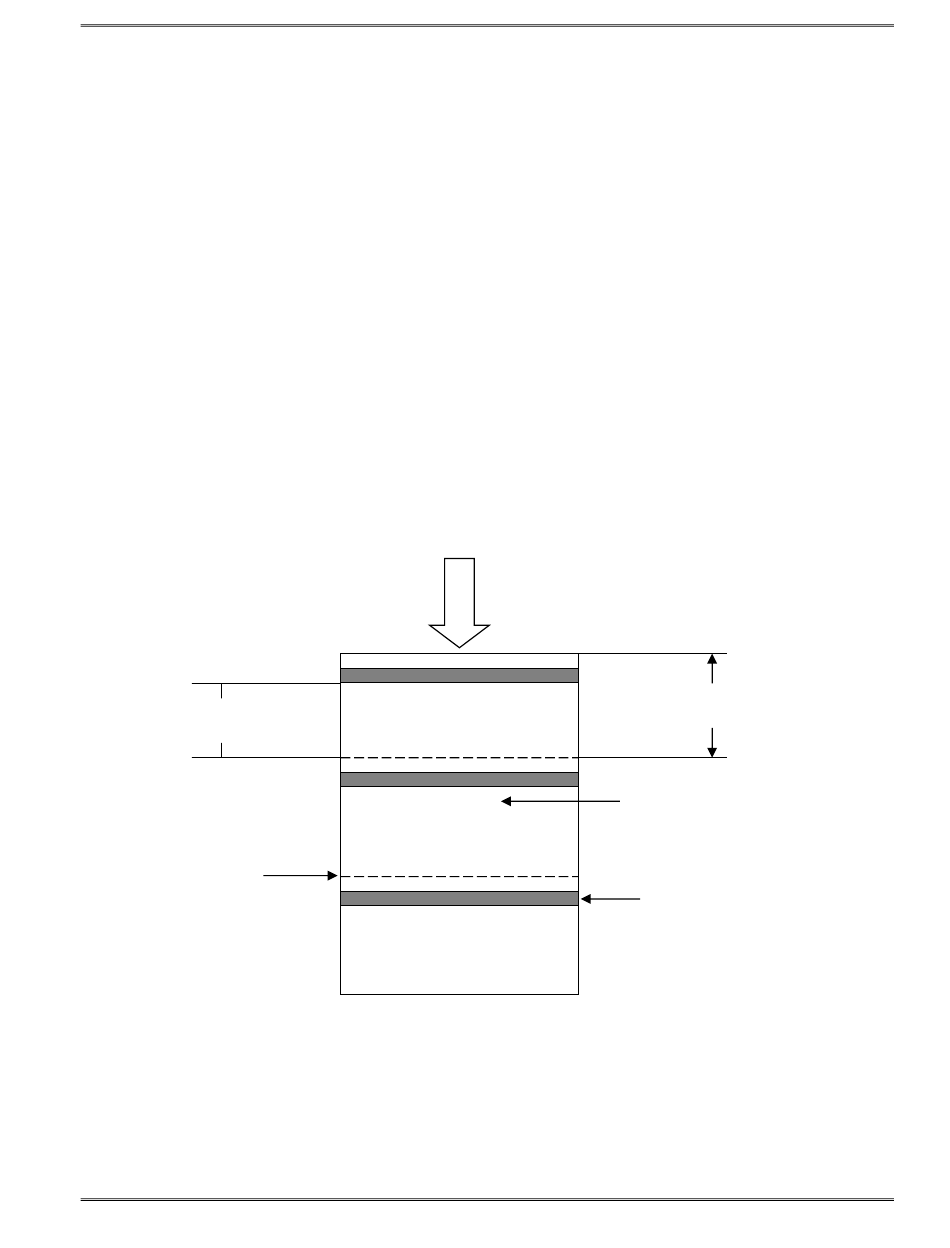

DRM, (0.72")
The perforation
indicates the
separation of
individual tags.
Figure 3
1.4.5 SPD (Print Speed)
This is the speed of the printer while printing, which is defined in either "inches/second (ips)" or
"centimeters/second (cms) as selected by the "^D564)" command. The print speed can be adjusted
anywhere from 1 ips (2.54 cms) to 6 ips (15.24 cms). See also ^D635)n command.
LDS2 Programming Manual – 880019-0202
Print Direction
Distance-to-Registration Mark (DRM)
LSX, LSY, GAP, DRM,
Printer Specifications
LSX
, LSY, GAP, DRM, SPD, DET, OFX, OFY, AGD
LSY
LSX, , GAP, DRM, SPD, DET, OFX, OFY, AGD
GAP
LSX, LSY, , DRM, SPD, DET, OFX, OFY, AGD
DRM
LSX, LSY, GAP, , SPD, DET, OFX, OFY, AGD
Media height (LSY)
Media that contains
an offset registration
mark.
Registration
Mark
(Black line)
SPD
, DET, OFX, OFY, AGD
1-5
