PLC Configuration

8 PLC Configuration
8.1

Export I/O Data Map

When configuring the communication between the PLC and the nodes on the subnetwork, use
the I/O data map as a specification to ensure that the transactions match.
In the Communicator built-in web-interface:

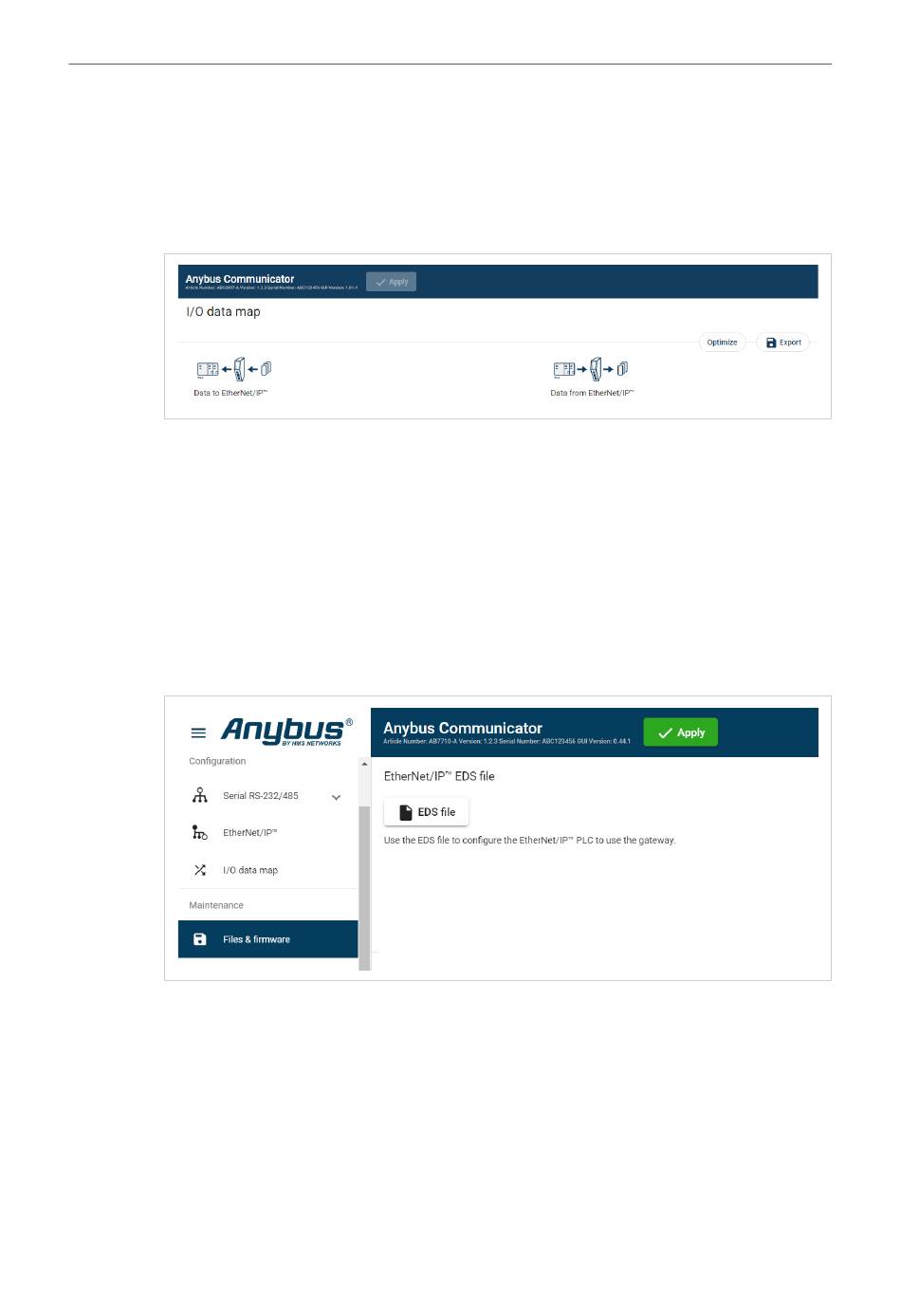

On the I/O data map page you can exported the I/O data map in an Excel XLS file, where all the
nodes and transactions are listed.
To export the I/O data map:
1. Click Export.
→ An Excel XLS file with the mapping is downloaded to your PC.
8.2

Export Product EDS File

Option if the PLC program requires a product file, EDS (Electronic Data Sheet) file, describing how
the Communicator can be used on the high level network.
You find the EtherNet/IP
page, Files & firmware page and on the Support page.
To export the EDS file:
1. Click EDS file.
→ The EDS file is downloaded to your PC.
® ™
Anybus Communicator User Manual
™
EDS file on the Communicator built-in web interface EtherNet/IP
