Troubleshooting
12.1.2 Event Log

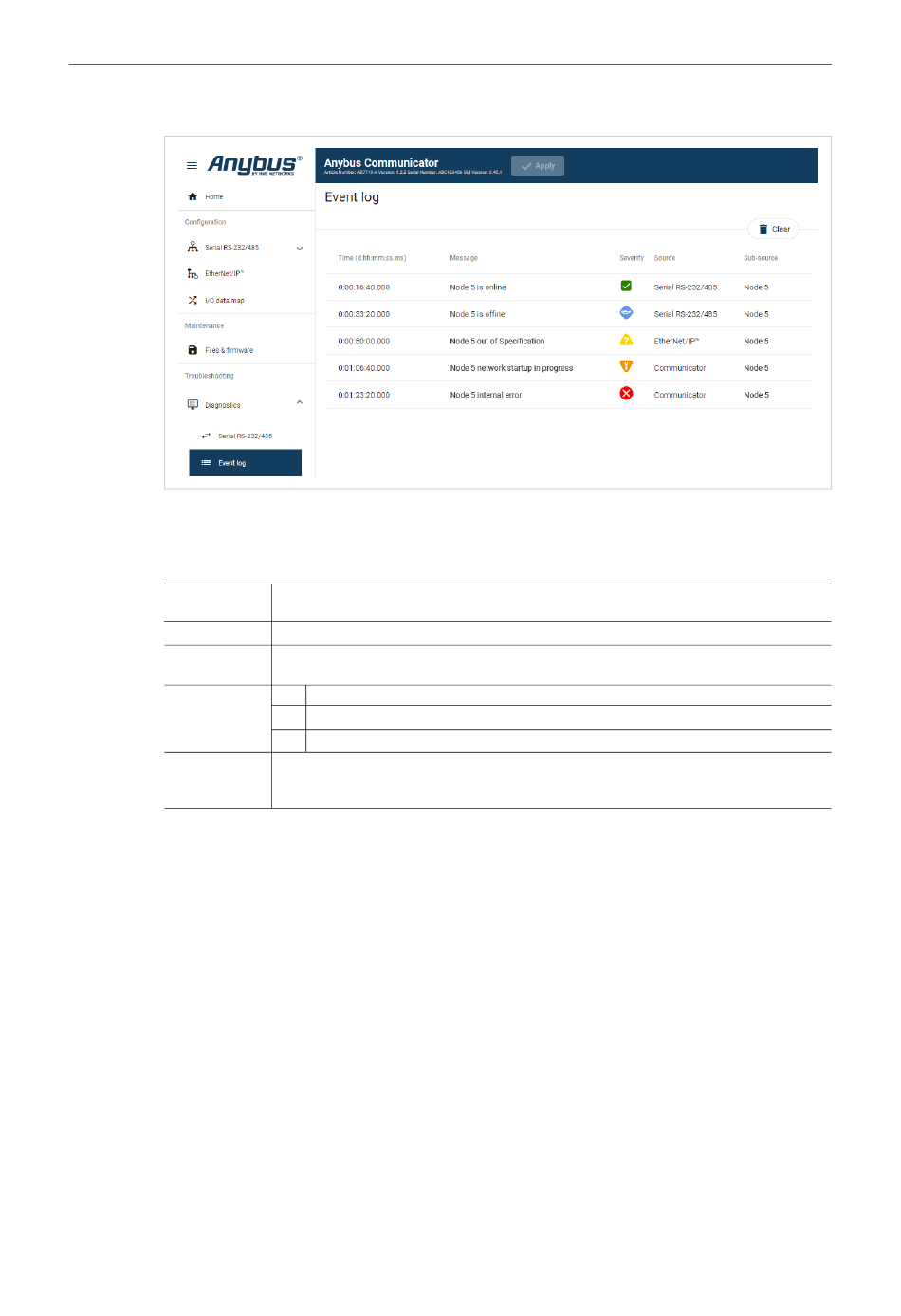

How To Analyze the Information
The log follows the FIFO principle, first in and first out. The oldest (first) value is processed first.
Time (d:hh:mm:
ss.ms)
Message
Severity
Source
Sub-source
To clear the current log, click Clear log.
® ™
Anybus Communicator User Manual
The date and time when the event occurred.
A brief description of the event.
The severity of the event occurred.
For description of the symbols, refer to
0 Communicator
1
High level network, EtherNet/IP
2
Subnetwork, Serial RS-232/485
The nodes connected to the subnetwork and the PLC connected to the high level network.
If there is a problem with a node the node name is displayed in the Sub-source column.
Example: If the node name is 5, number 5 is displayed in the Sub-source column.
Communicator Status Monitor, p.
112 (124)
