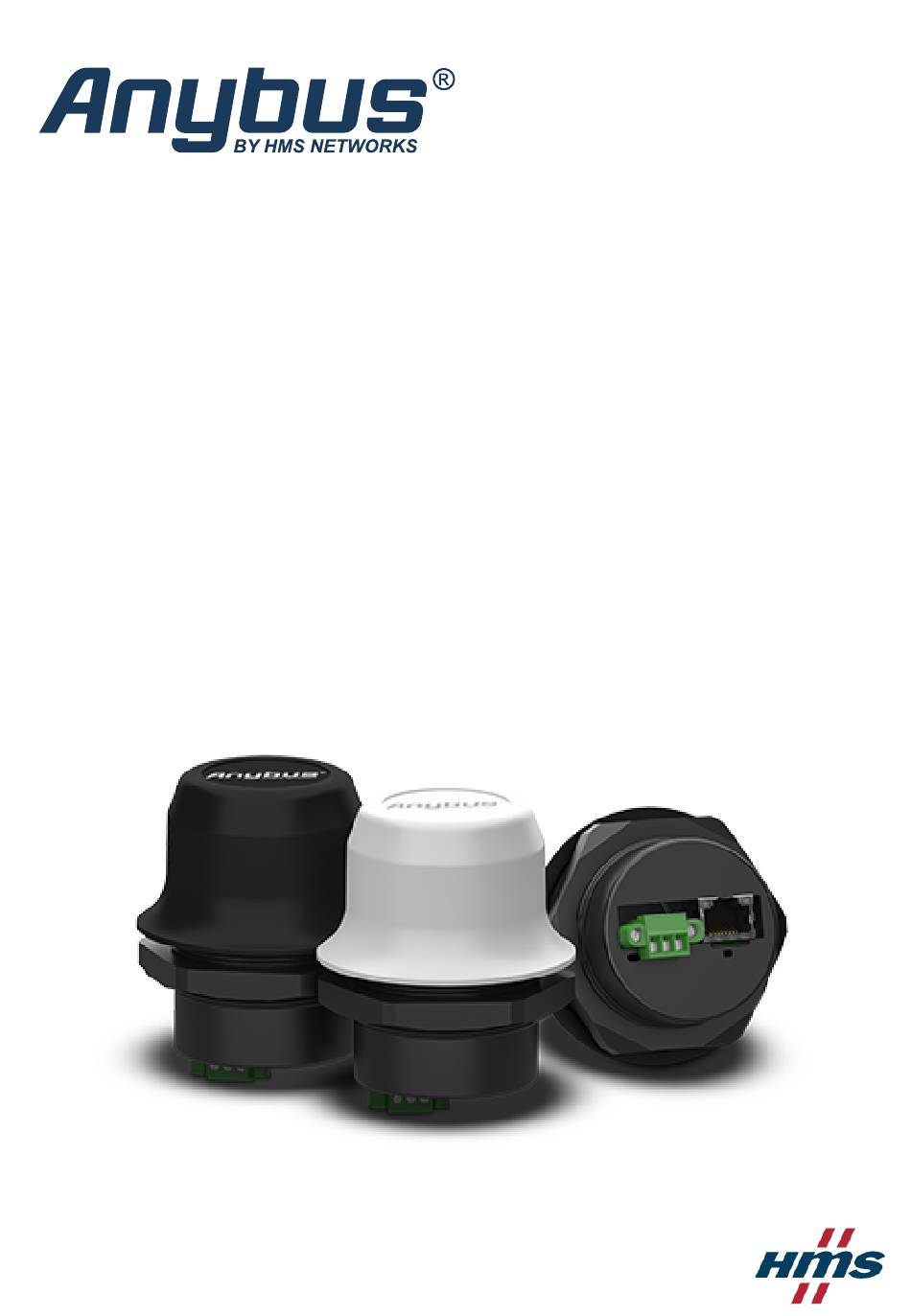

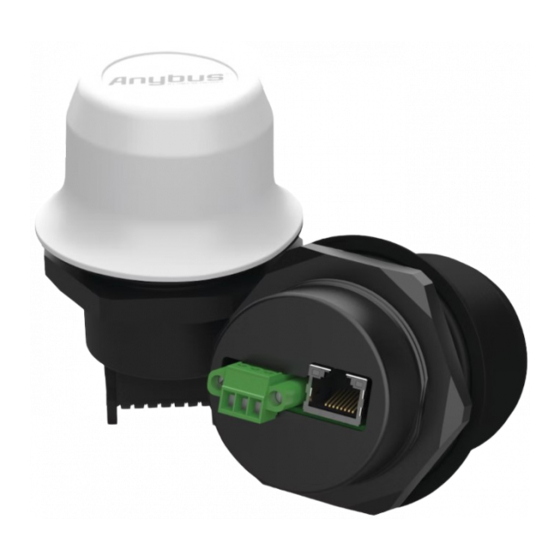

- Page 1 ENGLISH ® ™ Anybus Wireless Bolt LTE STARTUP GUIDE SP2868 Version 1.2 Publication date 2022-05-16...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: About This Document
® ™ Preface Anybus Wireless Bolt LTE 1. Preface 1.1. About This Document ® ™ This document describes how to install Anybus Wireless Bolt LTE For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. 1.2. -
Page 4: Information Symbols
Helpful advice and suggestions. 1.3. Trademarks ® ™ Anybus is a registered trademark and Wireless Bolt LTE is a trademark of HMS Networks All other trademarks are the property of their respective holders. Page 2 of 28 SP2868 Version 1.2... -
Page 5: General Safety
® ™ Safety Anybus Wireless Bolt LTE 2. Safety 2.1. General Safety CAUTION This equipment emits RF energy in the ISM (Industrial, Scientific, Medical) band. Make sure that all medical devices used in proximity to this equipment meet appropriate susceptibility specifications for this type of RF energy. -
Page 6: Intended Use
® ™ Anybus Wireless Bolt LTE Intended Use 2.2. Intended Use The intended use of this equipment is as a communication interface and router. The equipment receives and transmits data over Ethernet and Cellular standard networks. Page 4 of 28 SP2868 Version 1.2... -
Page 7: Network Environment
® ™ Preparation Anybus Wireless Bolt LTE 3. Preparation 3.1. Support and Resources For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Have the product article number available, to search for the product specific support web page. You find the product article number on the product cover. - Page 8 ® ™ Anybus Wireless Bolt LTE SIM Card 3.4. SIM Card Prepaid Data Plan If a prepaid data plan is used, ensure that: • the data amount is sufficient • that any SMS notifications are sent to a monitored number 3.5.
-
Page 9: Installation
® ™ Installation Anybus Wireless Bolt LTE 4. Installation 4.1. Install SIM Card NOTE Supported SIM card types are Nano SIM for IoT and M2M, for data communication, as well as standard mobile phone Nano SIM. Figure 1. Insert SIM card To connect Bolt LTE to a cellular data network, install a cellular SIM card: 1. -
Page 10: Mechanical Installation
® ™ Anybus Wireless Bolt LTE Mechanical Installation 4.2. Mechanical Installation Placement • The device is intended to be mounted on top of a machine or cabinet through an M50 (50.5mm) hole using the included sealing ring and nut. • The top mounting surface, in contact with the sealing, must be flat with a finish equivalent to Ra 3.2 or finer and cleaned and free from oils and greases. - Page 11 ® ™ Mechanical Installation Anybus Wireless Bolt LTE All measurements are in mm. Figure 2. Installation drawing SP2868 Version 1.2 Page 9 of 28...
- Page 12 ® ™ Anybus Wireless Bolt LTE Connect to Power Over Ethernet (PoE) 4.3. Connect to Power Over Ethernet (PoE) Before You Begin IMPORTANT Connecting the Bolt LTE to PoE and DC power simultaneously may result in a current loop that could damage both the power sources and the Bolt LTE.
- Page 13 ® ™ Connect to Power Over Ethernet (PoE) Anybus Wireless Bolt LTE Table 1. Ethernet Connector, RJ45 PoE Data Positive power from alt. A PSE Negative power from alt. A PSE (with pin 6) Positive power from alt. B PSE Negative power from alt.
- Page 14 ® ™ Anybus Wireless Bolt LTE Connect to Power and Ethernet 4.4. Connect to Power and Ethernet Before You Begin CAUTION Connecting power with reverse polarity or using the wrong type of power supply may damage the equipment. Make sure that the power supply is connected correctly and of the recommended type.
- Page 15 ® ™ Connect to Power and Ethernet Anybus Wireless Bolt LTE Figure 4. Functional earth wire screw placement Procedure Connect to power and Functional Earth (FE) Figure 5. Power and Functional Earth (FE) SP2868 Version 1.2 Page 13 of 28...
- Page 16 ® ™ Anybus Wireless Bolt LTE Connect to Power and Ethernet 1. Connect Bolt LTE Power connector to a power supply. 2. Connect Bolt LTE Power connector to Functional Earth (FE). Table 2. Power connector, 3-pin terminal block Function 11-33 VDC Functional Earth (FE) Page 14 of 28 SP2868 Version 1.2...
- Page 17 ® ™ Connect to Power and Ethernet Anybus Wireless Bolt LTE Connect to Ethernet 3. Connect the Bolt LTE to Ethernet. Figure 6. Connect to Ethernet SP2868 Version 1.2 Page 15 of 28...
- Page 18 ® ™ Anybus Wireless Bolt LTE Configuration 5. Configuration 5.1. Connecting to PC and Power When configuring Bolt LTE it must be connected to a PC. Figure 7. Connect to PC and Power 1. Connect the Bolt LTE Ethernet port to your PC. 2.
- Page 19 ® ™ Required IP Address Settings Anybus Wireless Bolt LTE 5.2. Required IP Address Settings To be able to access the Bolt LTE built-in web interface you may need to adjust the IP settings, choose one of the following methods. NOTE The Bolt LTE default IP address is 192.168.0.98 and the subnet mask is 255.255.255.0.
- Page 20 ® ™ Anybus Wireless Bolt LTE Required IP Address Settings Result NOTE The Bolt LTE comes with a default username and password. The default username is admin, written in lowercase letters. You find the default password on the Bolt LTE product housing. Now you can enter the Bolt LTE IP address in your web browser and search to access the built-in web interface login page.
- Page 21 ® ™ Bolt LTE Built-In Web Interface Anybus Wireless Bolt LTE 5.3. Bolt LTE Built-In Web Interface The Bolt LTE built-in web interface is used to configure the Bolt LTE system settings as well as for diagnostics and maintenance. The System Overview page shows the current settings and network connection status. Figure 8.
- Page 22 ® ™ Anybus Wireless Bolt LTE Setting Up Bolt LTE with Automatic APN Assignment 5.4. Setting Up Bolt LTE with Automatic APN Assignment Before You Begin By default, the Bolt LTE APN Assignment is set to automatically search for the SIM card APN setting and assign it to the Bolt LTE.
- Page 23 ® ™ Configuration with REST Commands Anybus Wireless Bolt LTE Figure 9. Connect your device to internet Insert a cellular SIM card in the Bolt LTE SIM card holder. NOTE Ensure that the SIM card contact surface is facing towards the Ethernet port.
-
Page 24: Troubleshooting
® ™ Anybus Wireless Bolt LTE Troubleshooting 6. Troubleshooting 6.1. Reset to Factory Default IMPORTANT If there is no Ethernet connection available after a factory reset, the Bolt LTE starts in the default Easy Config Mode 4. Any one of these actions will restore the unit to factory default settings. Reset Using the RESET Button Press and hold RESET for >10 seconds and then release it. - Page 25 ® ™ Reset to Factory Default Anybus Wireless Bolt LTE Reset Via the Built-In Web Interface Launch the built-in web interface > On the System Settings page, click Factory Restore. Reset Using Digital Input To reset Bolt LTE to factory default, apply voltage to the digital input for >10 seconds. SP2868 Version 1.2 Page 23 of 28...
-
Page 26: Led Status Indication
® ™ Anybus Wireless Bolt LTE LED Status Indication 7. LED Status Indication Figure 10. RJ45 LED indicators LED A – LINK/ACTIVITY Function No Ethernet link Yellow 10 Mb/s Ethernet link established Yellow, flashing 10 Mb/s Ethernet activity Green 100 Mb/s Ethernet link established Green, flashing 100 Mb/s Ethernet activity LED B –... -
Page 27: Technical Data
® ™ Technical Data Anybus Wireless Bolt LTE 8. Technical Data 8.1. Technical Specifications Order code EMEA: AWB1500 EMEA: AWB1501 Americas: AWB1502 Americas: AWB1503 Color Black White top and black base Operating temperature Shadow: -40 to +65 °C Shadow: -40 to +65 °C Direct sunlight: -40 to +45 °C Direct sunlight: -40 to +65 °C Storage temperature... - Page 28 ® ™ Anybus Wireless Bolt LTE Technical Specifications Order code EMEA: AWB1500 EMEA: AWB1501 Americas: AWB1502 Americas: AWB1503 Americas: LTE B2, B4, B5, B12, B13, B14, B25, B26, B66, Fallback 3G Ethernet protocols Transparent transfer of any TCP/UDP based protocol, Built-in firewall, NAT and DHCP server Positioning standards and Positioning services: Satellite Systems - GNSS (GPS, Galileo, Glonass, BeiDou)
- Page 29 This page is intentionally left blank.
- Page 30 This page is intentionally left blank.
