Communicator Configuration
Setting
Data bits
Data bits is the number of bits used in the data representation of characters in the telegrams.
The rate for Modbus RTU is 8 data bits and can not be changed.
Parity
Specify if parity should be used to detect errors in the data.
3. Select parity value from the Parity drop-down menu.
Setting
Parity
Stop bits
Specify the number of stop bits used to indicate the end of data transmission.
4. Select a stop bits value from the Stop bits drop-down menu.
Setting
Stop bits
Apply configuration
5. To apply the settings, click Apply in the web-interface header, and follow the instructions.
7.5.3 Communication Advanced Settings

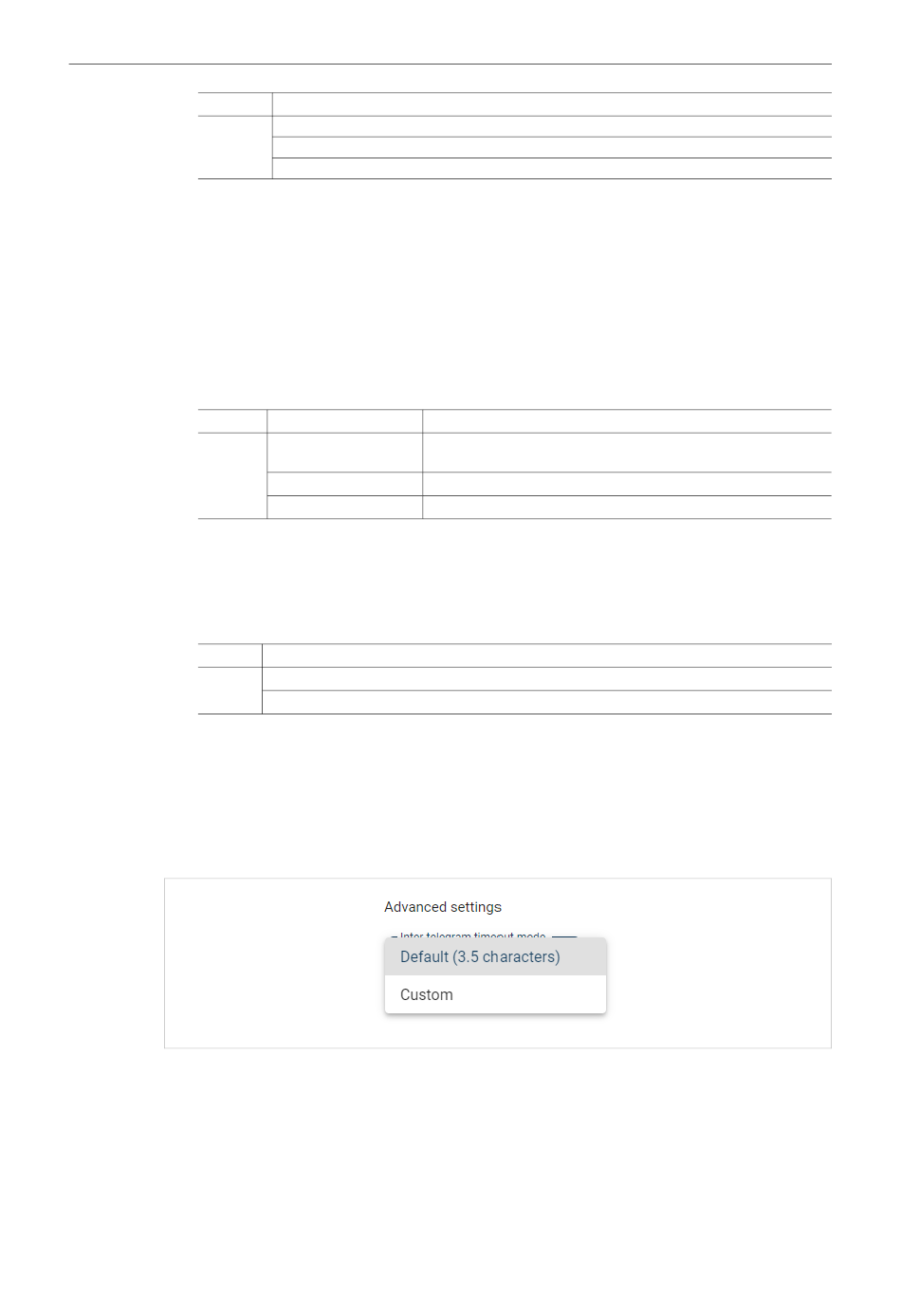

Inter-Telegram Timeout Mode Settings
By default, Inter-telegram timeout mode Default (3.5 characters) is used.
This is according the Modbus RTU standard, which advocates the use of a silent period
equivalent to 3.5 characters between each message. The silent period is used to find out where
one message ends and the next begins.
® ™
Anybus Communicator User Manual
Value
57600 baud
115200 baud
128000 baud
Value Description
None | Default value No parity checking
Parity bit is not transmitted
Odd Odd parity checking
Even
Even parity checking
Value
1 stop bit | Default value
2 stop bit
38 (124)
