Frame fields are low level entities used to compose transactions.
A frame field can represent a:
•
fixed value, a constant
•
range of values, limit objects
•
block of data or a calculated checksum
Transaction Templates

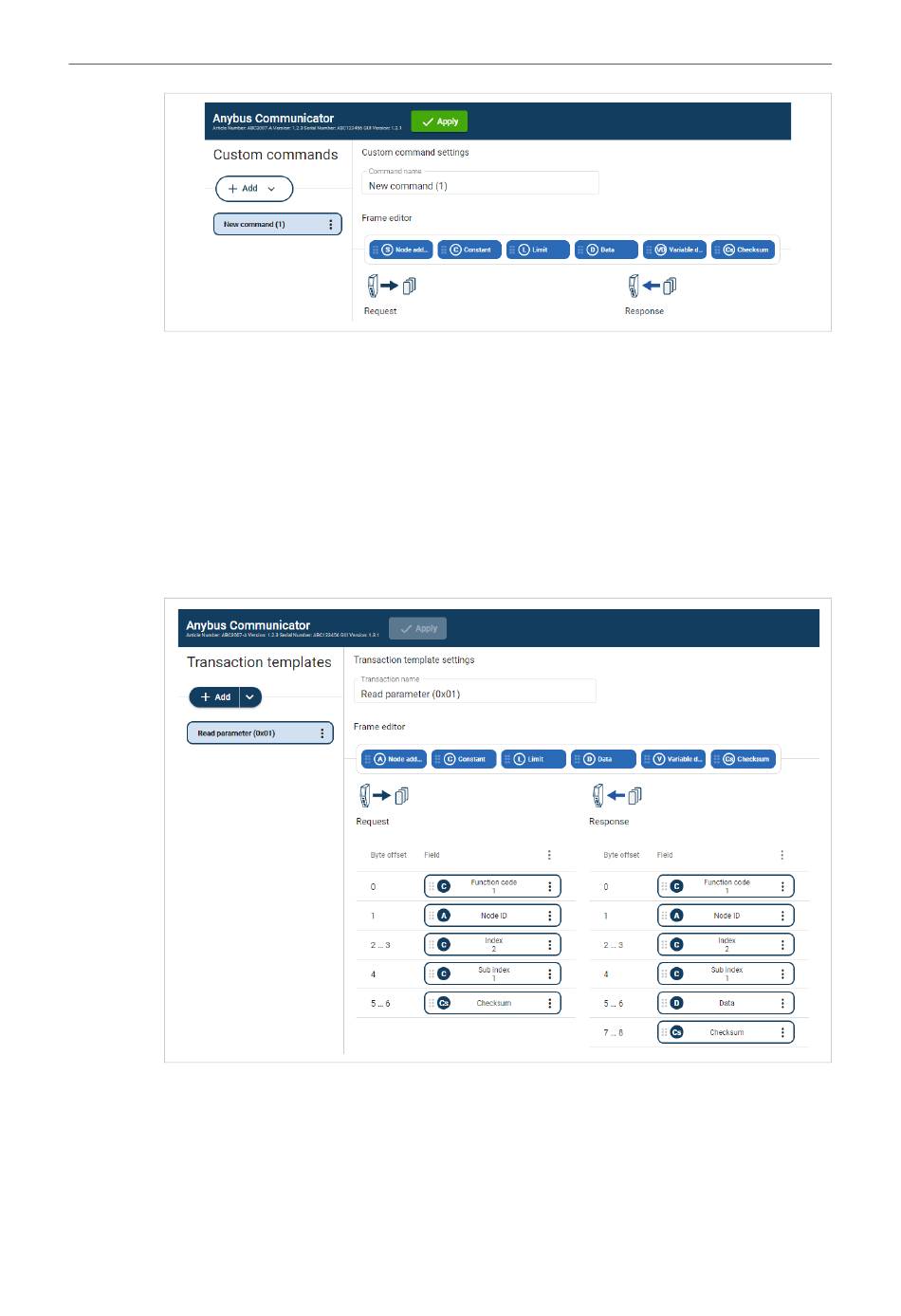

The Transaction templates are available when either the Custom Request/Response or Custom
Produce/Consume serial protocol is enabled.
A transaction represents a complete serial telegram, and consists of a number of frame fields.
Each frame field is associated with a set of parameters controlling what is transmitted on the
subnetwork.
The transaction templates are stored in the Communicator and can be reused multiple times.
®
™
Anybus
Communicator
User Manual
11 (124)
SCM-1202-152 1.10 en-US
