Communicator Configuration
7.10.7

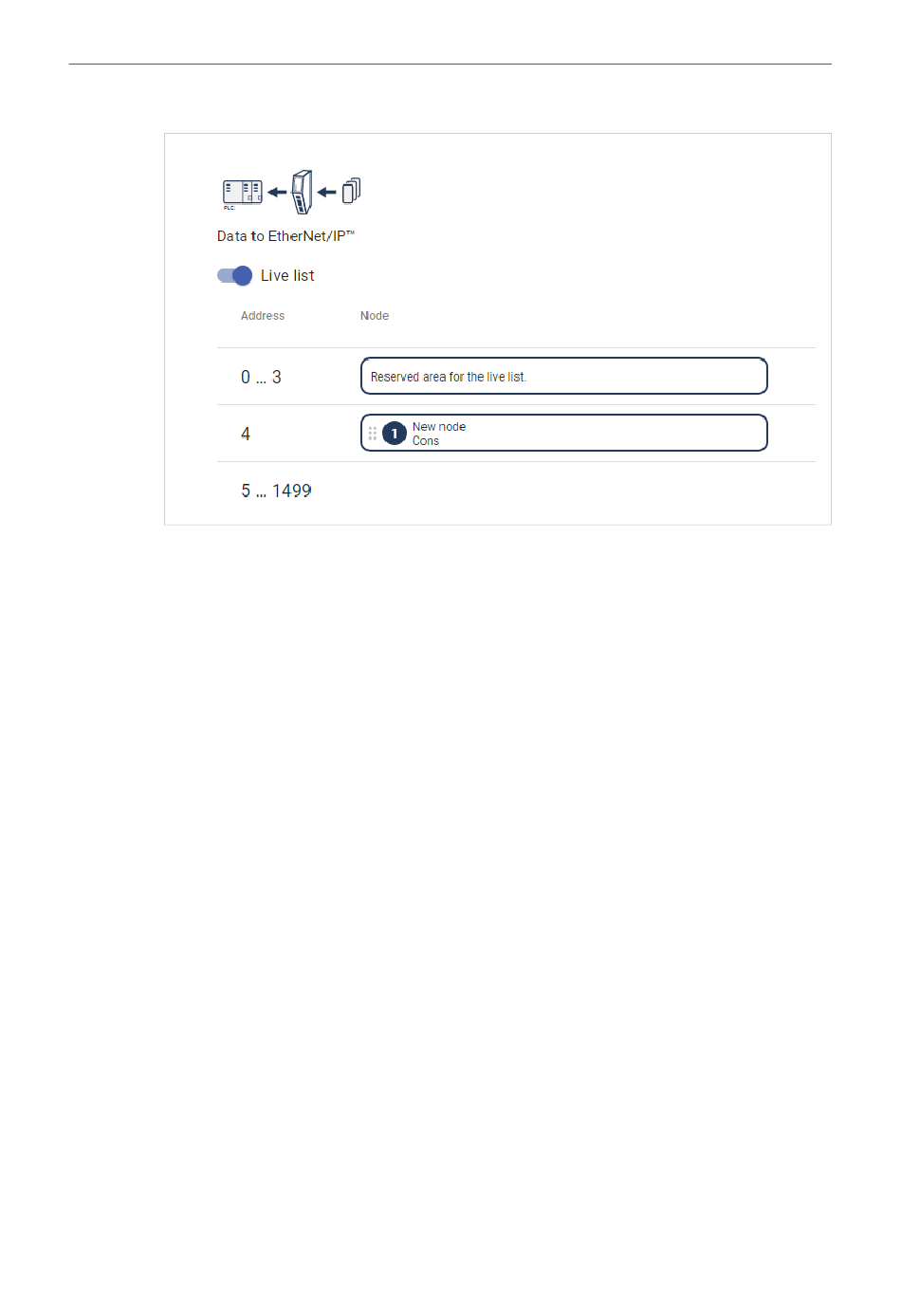

Live List
By default Live list is disabled.
When Live list is enabled, the first four bytes of process data on the EtherNet/IP network contain
the live list.
The Live list holds 32 bits.
Each bit in the Live list can hold the status for a total of 32 nodes connected to the
Communicator.
The bit is 0 when the bit does not correspond to the configured node. For example, this occurs
when the number of configured nodes is less than 32.
Each bit is 1 when the corresponding node is online.
®
™
Anybus
Communicator
User Manual
77 (124)
SCM-1202-152 1.10 en-US
