Communicator Configuration
7.7.2

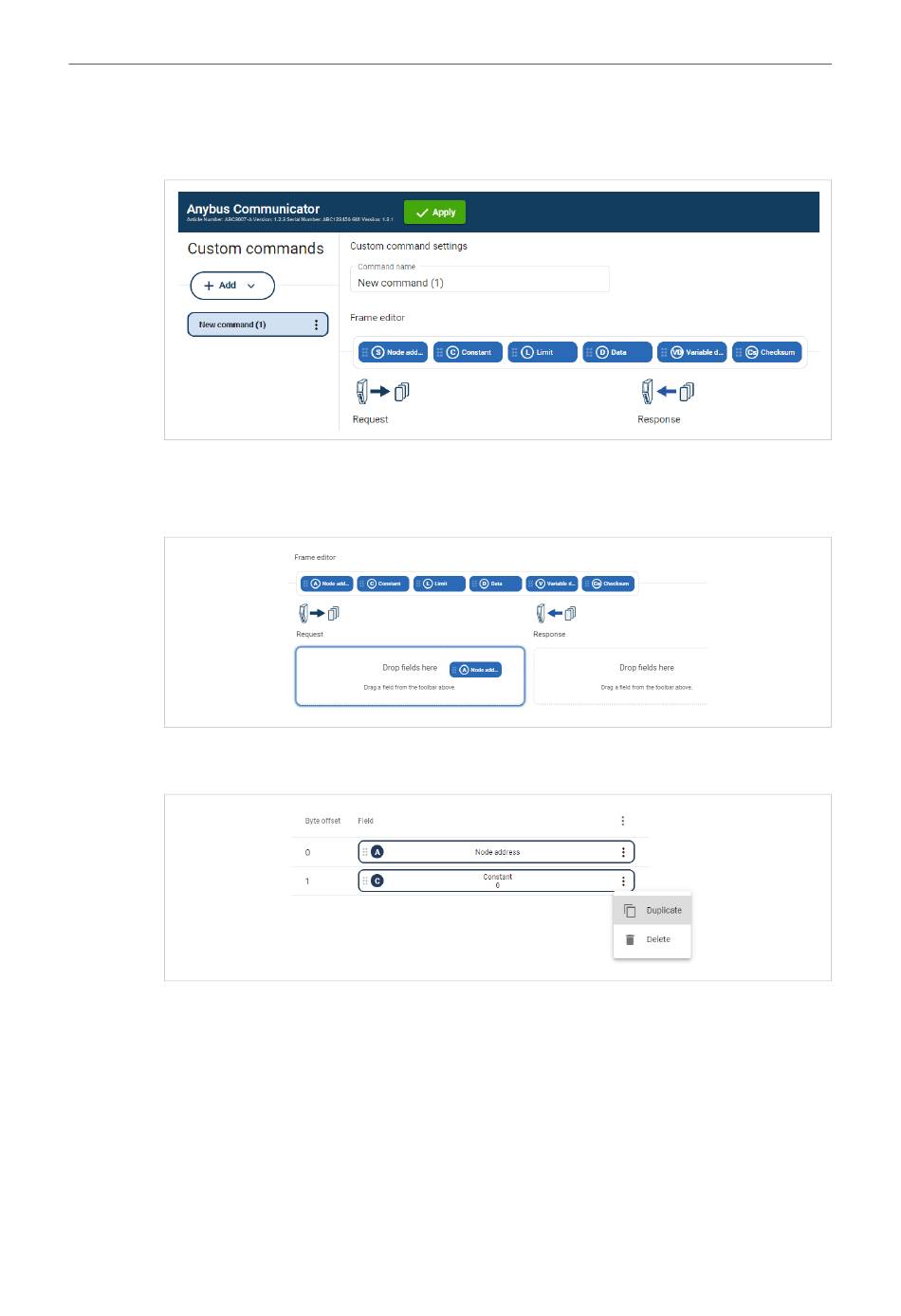

Add Frame Fields
Procedure
1.
In the transaction template list, select a transaction template to add frame fields to.
2.
Build the transactions.
►
To add frame fields: In the Frame editor frame fields menu, drag and drop the desired
frame fields into the drag and drop fields.
►
To duplicate a frame field: On the frame field that you want to delete, click the three dots
icon and then click Duplicate.
®
™
Anybus
Communicator
User Manual
50 (124)
SCM-1202-152 1.10 en-US
