Communicator Configuration

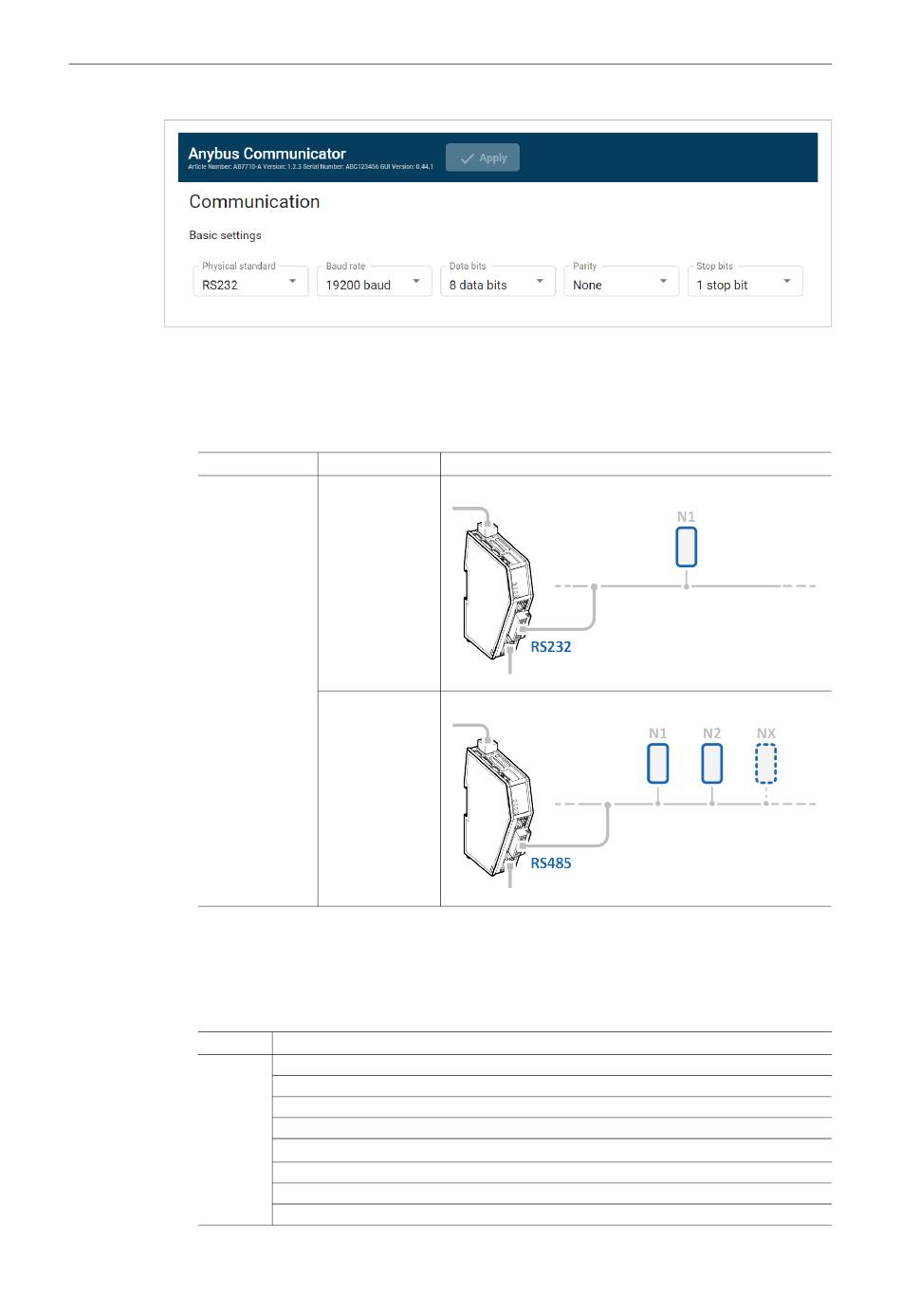

7.5.2 Communication Basic Settings
Physical standard
Specify the physical interface type for the device connected to the Communicator.
1. Select a physical standard from the Physical standard drop-down menu.
Setting
Physical standard
Baud rate
Specify the baud rate; the serial transfer speed, maximum bits per second.
2. Select a baud rate value from the Baud rate drop-down menu.
Setting
Baud rate
® ™
Anybus Communicator User Manual
Value Description
RS-232
Use RS-232 when one single node is connected to the subnetwork.
Default standard
RS-485
Use RS-485 when multiple nodes are connected to the subnetwork.
Value
1200 baud
1800 baud
2400 baud
4800 baud
9600 baud | Default value
19200 baud
35700 baud
38400 baud
