Communicator Built-In Web Interface Overview

Use the Communicator built-in web interface to configure, maintain and troubleshoot the
Communicator.
Home
Apply
Serial RS-232/485
EtherNet/IP ™
I/O data map
Files & firmware
Diagnostics
Support
® ™
Anybus Communicator User Manual

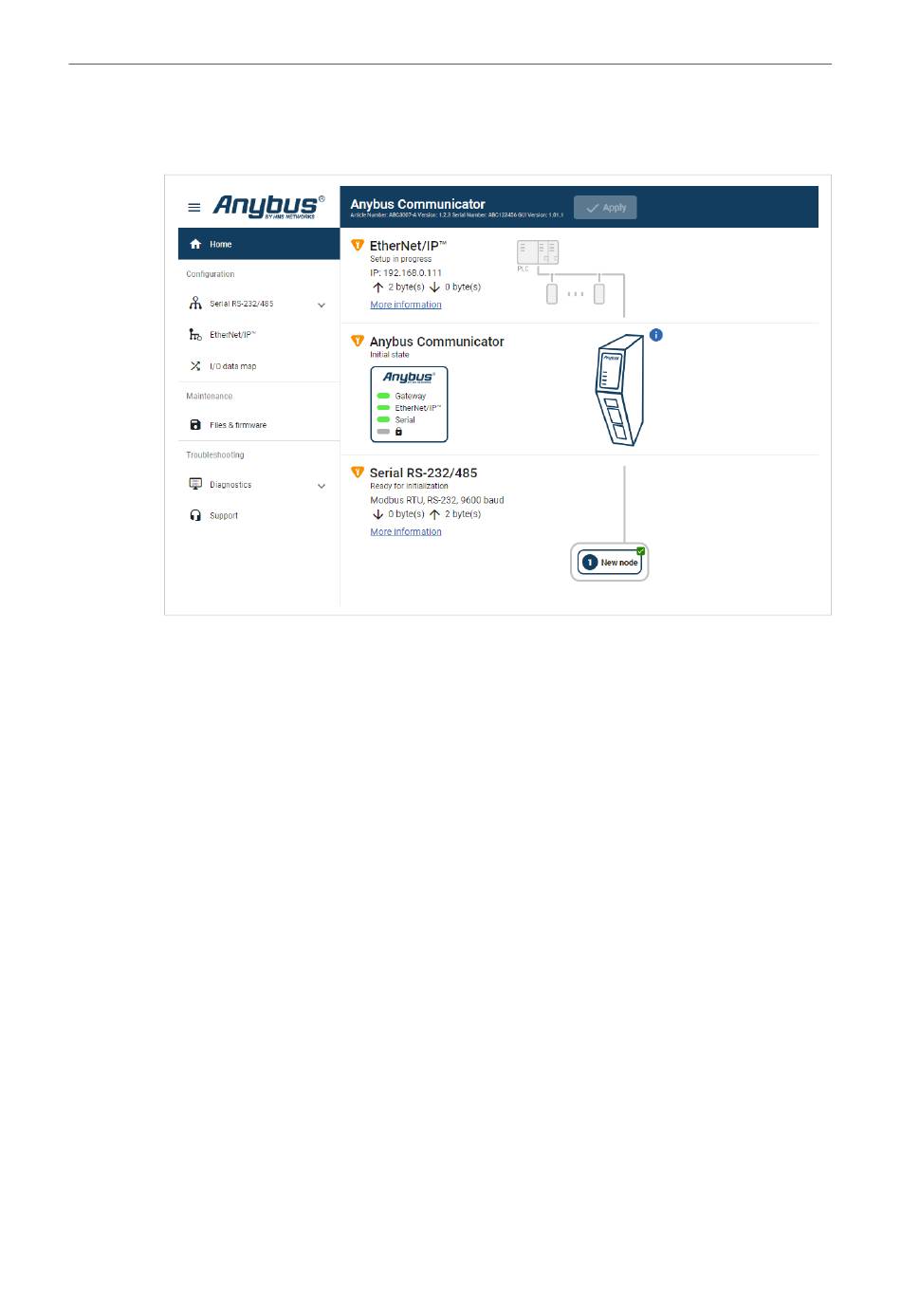

View the Communicator, network and node status.
After configuration changes are made and verified,
press Apply to make the settings take effect.
Serial Subnetwork with Nodes.
Select a Serial protocol, use Modbus RTU standard transactions or create your own
transaction templates.
Configure communication and add nodes and transactions.
High Level Network with Client. Configure I/O Size and IP settings.
View the added transactions mapped to the Communicator internal memory area.
Save settings in a configuration files, upload configuration files and upgrade firmware.
Monitor and troubleshoot the Communicator.
Contains Communicator product information, Anybus contact information,
link to Anybus support website, and product file for download.
Here you can generate a support package with product information, to send to your
Anybus support technician.
