Serial Protocol Communication

4.1.1 Serial Protocol Types

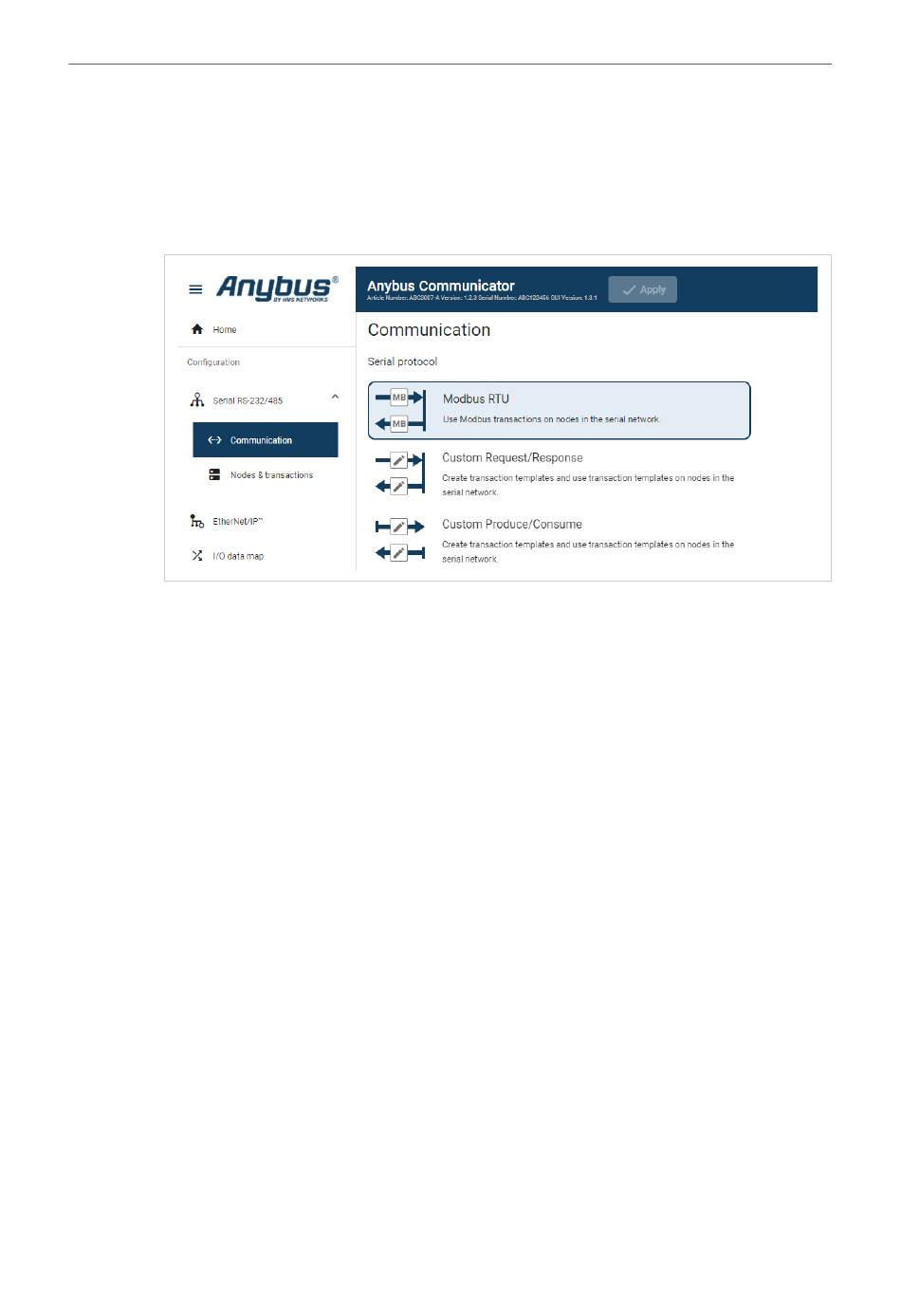

The gateway features three distinct modes of operation for the subnetwork communication,
called Modbus RTU, Custom Request/Response and Custom Produce/Consume.
Modbus RTU
By default the Communicator uses the Modbus RTU serial protocol.
The Communicator uses Modbus transactions defined by the Modbus standard.
The Communicator acts as a client on the subnetwork, and the serial communication takes place
in a request/response fashion.
The nodes on the network are not permitted to issue messages unless they have been addressed
by the Communicator first.
Custom Request/Response
In this mode, you can define your own serial transactions to handle a wide range of custom serial
protocols.
The Communicator acts as a generic serial client on the subnetwork.
The serial communication takes place in a request/response fashion.
Custom Produce/Consume
In this mode, you can define your own serial transactions to handle a wide range of custom serial
protocols.
The Communicator may consume and/or produce messages on the subnetwork.
There is no client-server relationship between the nodes on the network, messages are
spontaneously produced or consumed when data is available.
® ™
