PLC Configuration

Anybus Communicator - EtherCAT Slave to PROFIBUS DP Device
7. PLC Configuration

7.1. Export Product GSD File

Option for PROFIBUS DP Device.
Option if the PLC program requires a product file, GSD (General Station Description) file, describing how the
Communicator can be used on the high level network.

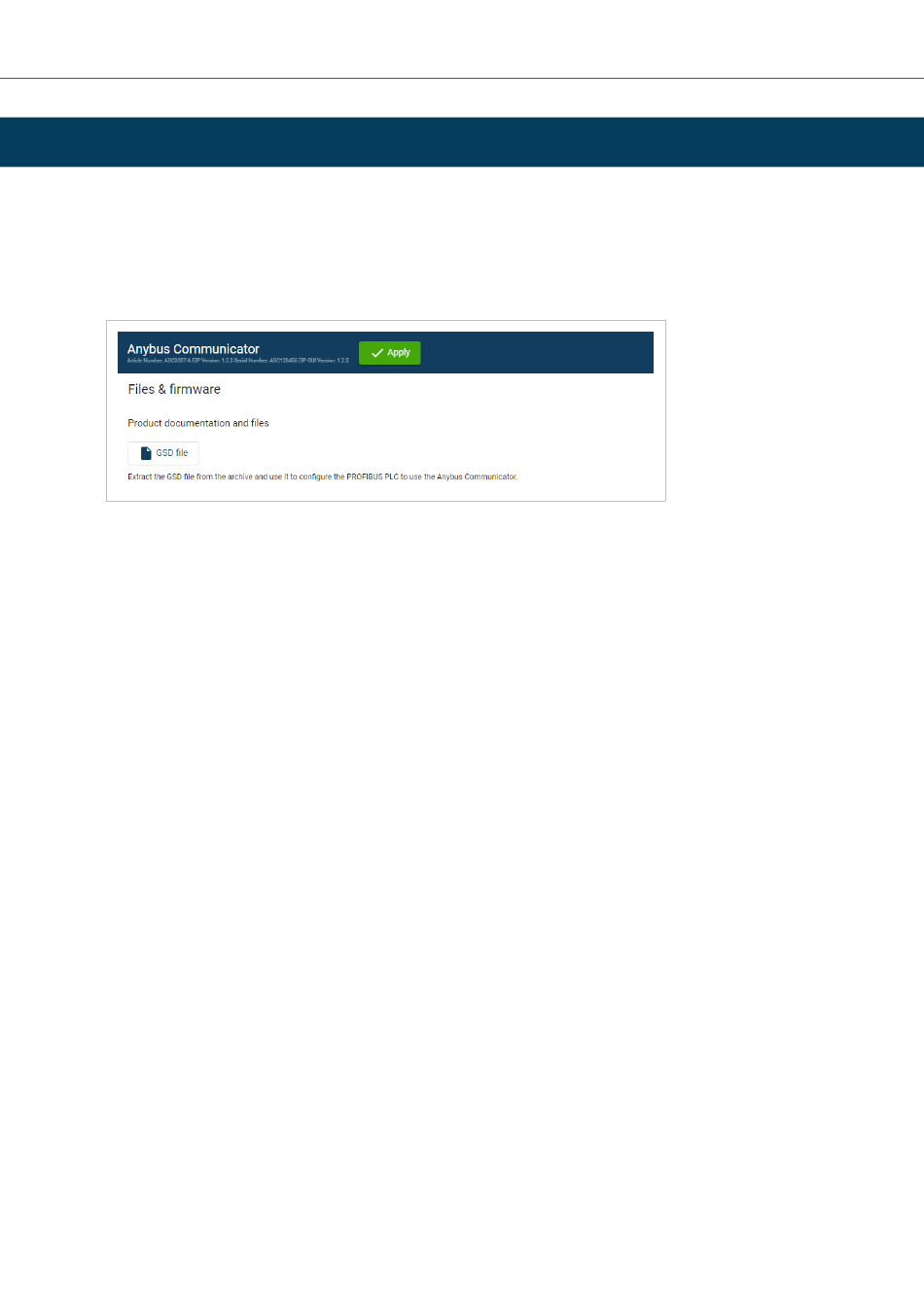

Figure 31. Export Product GSD File
You find the PROFIBUS GSD file on the Communicator built-in web interface PROFIBUS page, Files & firmware
page and on the Support page.
To export the GSD file:
1. Click GSD file.
The GSD file is downloaded to your PC.
