Appendix A: Reference Guides
A.6

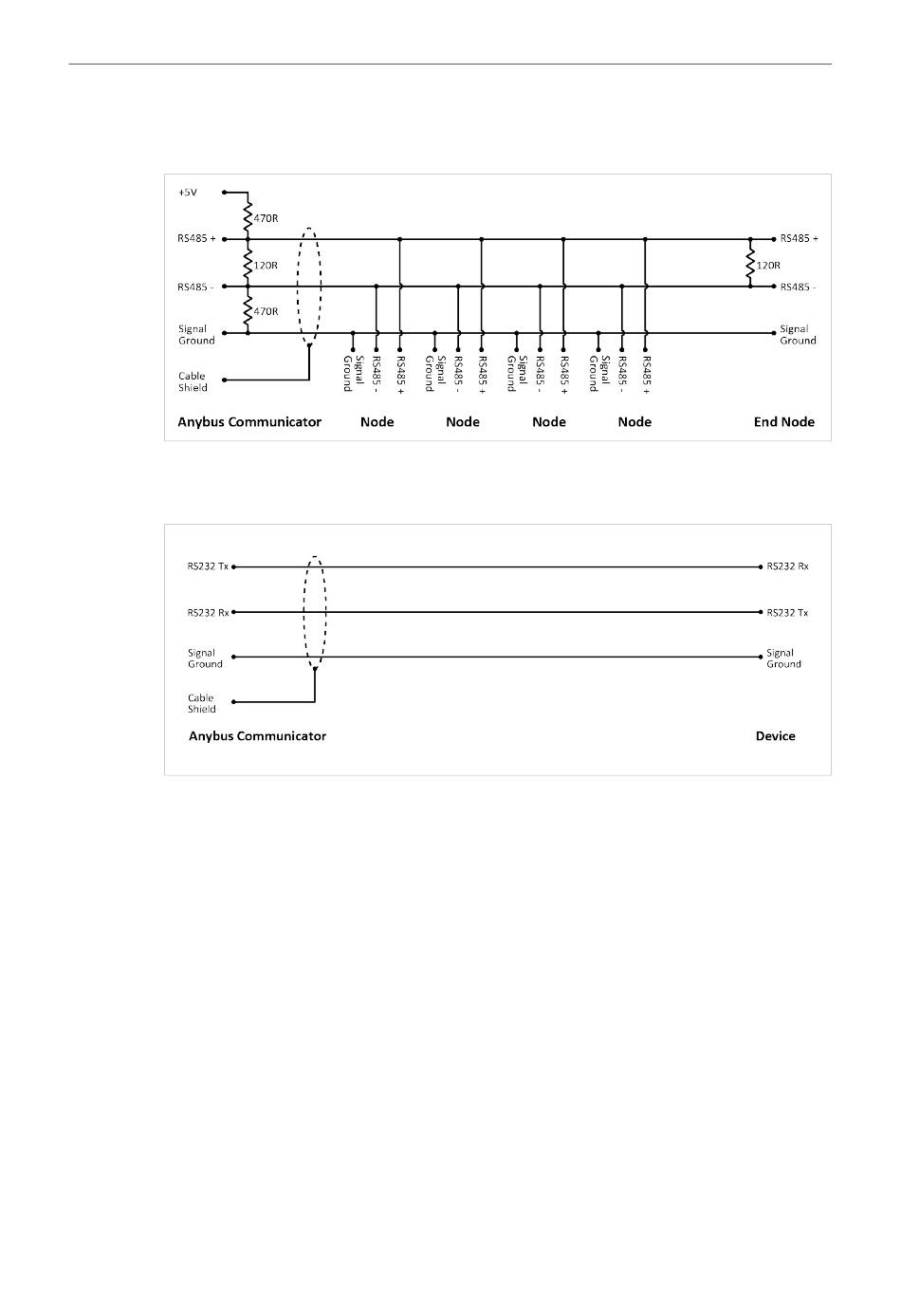

RS485/RS232 Electrical Connection

A.6.1
RS485 Typical Connection
A.6.2
RS232 Typical Connection
®
™
Anybus
Communicator
User Manual
123 (124)
SCM-1202-152 1.10 en-US
