Use Cases
10.2.3 Choose Serial Protocol Type
My Drive is using a request/response protocol to access parameters addressed with index and
sub index.

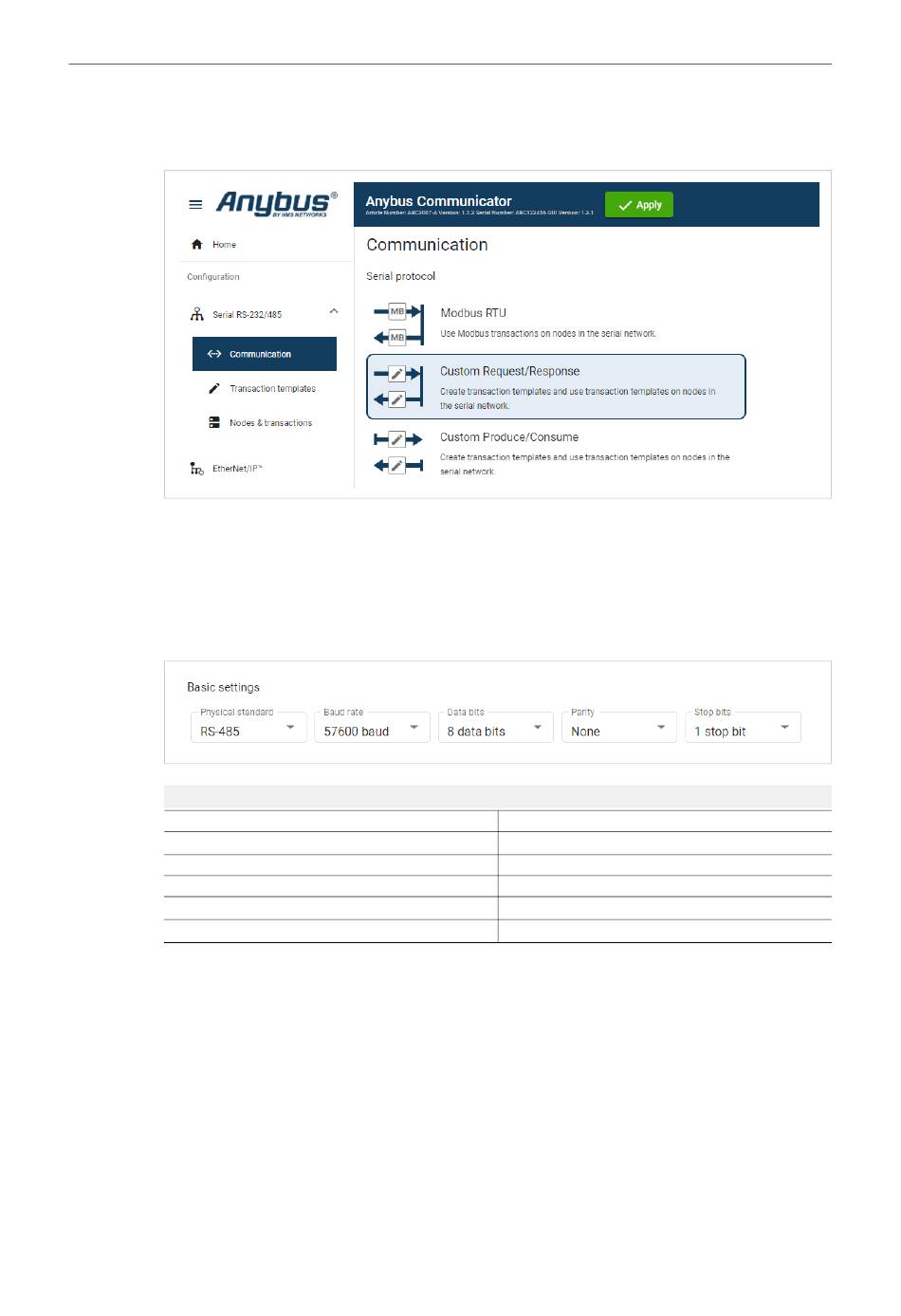

On the Serial RS232/485 page, select Custom Request/Response.
►
10.2.4 Set Up Serial Communication
Set up the communication between the Communicator and My Drive.
In the Serial RS232/485 page, configure the Communication settings.
Used the following settings:
Frame fields
Physical standard
Baud rate
Data bits
Parity
Stop bits
® ™
Anybus Communicator User Manual
Value
RS-485
57600 baud
8 bits
None
1 stop bit
