Use Cases
10.3.3 Choose Serial Protocol Type
The Barcode Scanner is using a produce/consume protocol to access parameters addressed with
index and sub index.

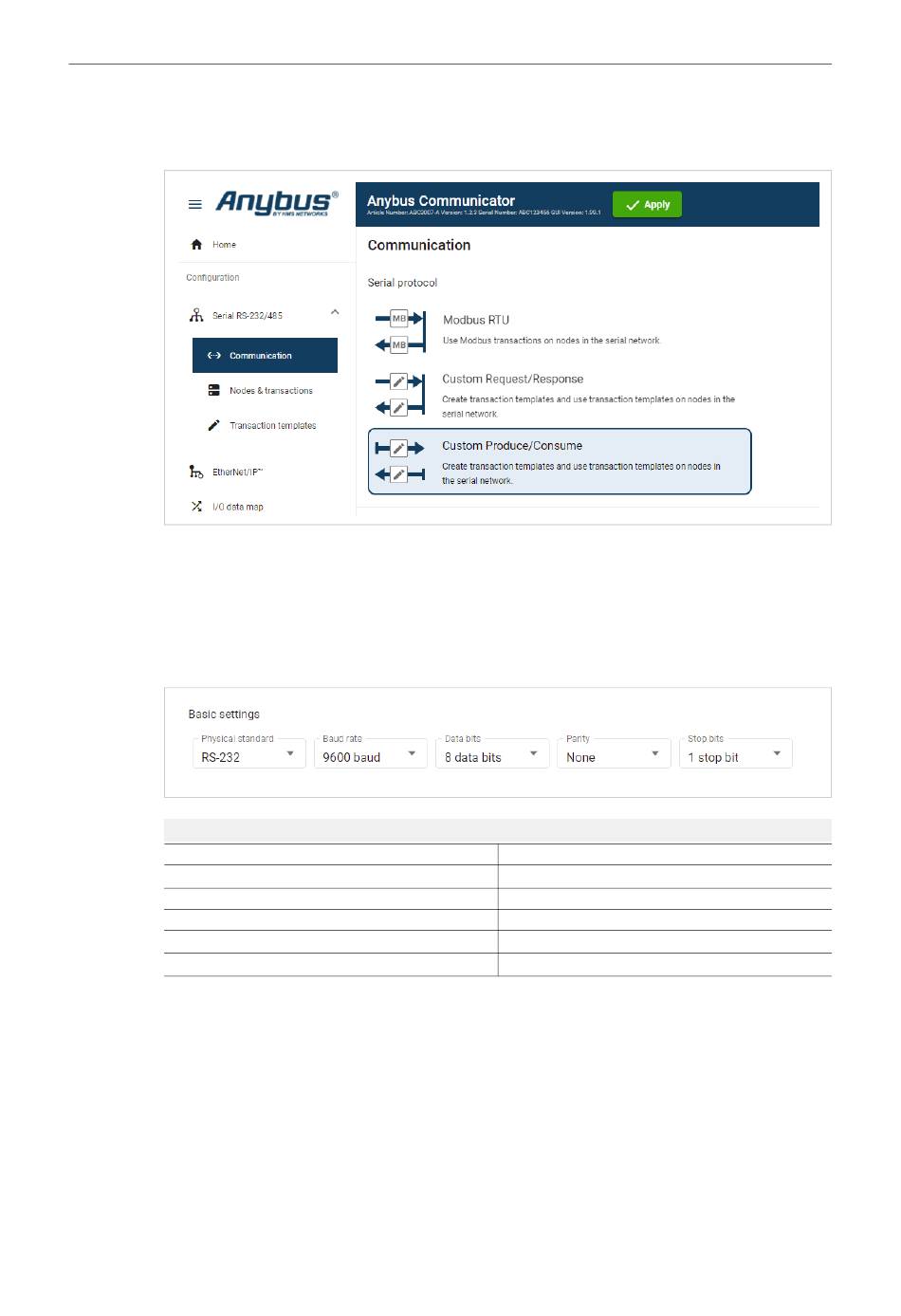

On the Serial RS232/485 page, select Custom Produce/Consume.
►
10.3.4 Set Up Serial Communication
Set up the communication between the Communicator and the Barcode Scanner.
In the Serial RS232/485 page, configure the Communication settings.
Used the following settings:
Frame fields
Physical standard
Baud rate
Data bits
Parity
Stop bits
® ™
Anybus Communicator User Manual
Value
RS-232
9600 baud
8 bits
1
1 stop bit
