About Transaction Templates

This section applies when the Custom Request/Response or Custom Produce/Consume serial
protocol is applied, refer to
7.6.1 Transaction Template Example
Custom Request/Response

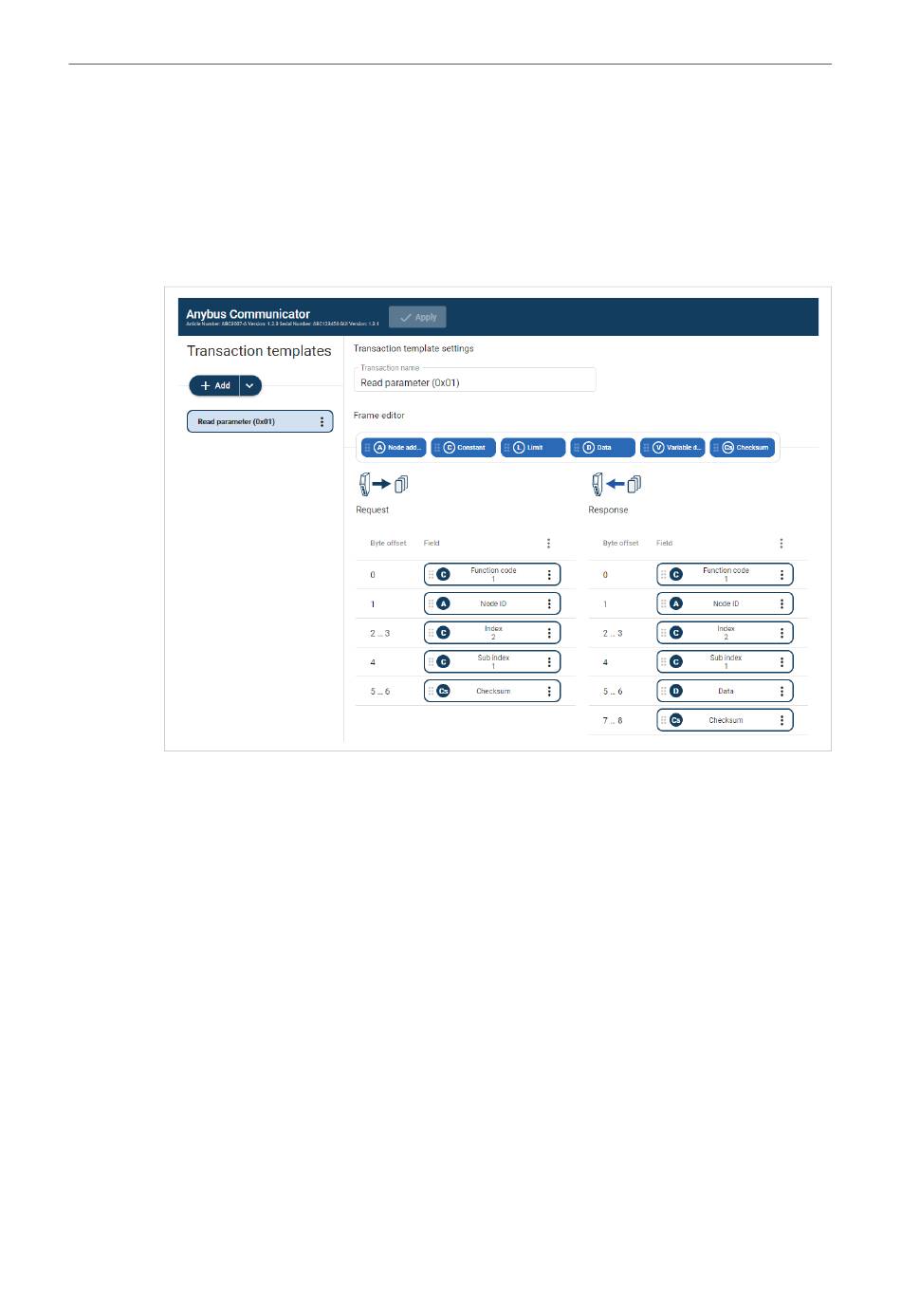

Request/Response transaction template example:
The transaction named Read parameter (0x01) consists of a number of frame fields.
In the Request field there are three Constants, a Node address and a Checksum field.
In the Response field there are three Constants, a Node address, a Data field and a Checksum
field.
® ™
