HMS Networks Anybus Communicator User Manual page 68

Communicator Configuration

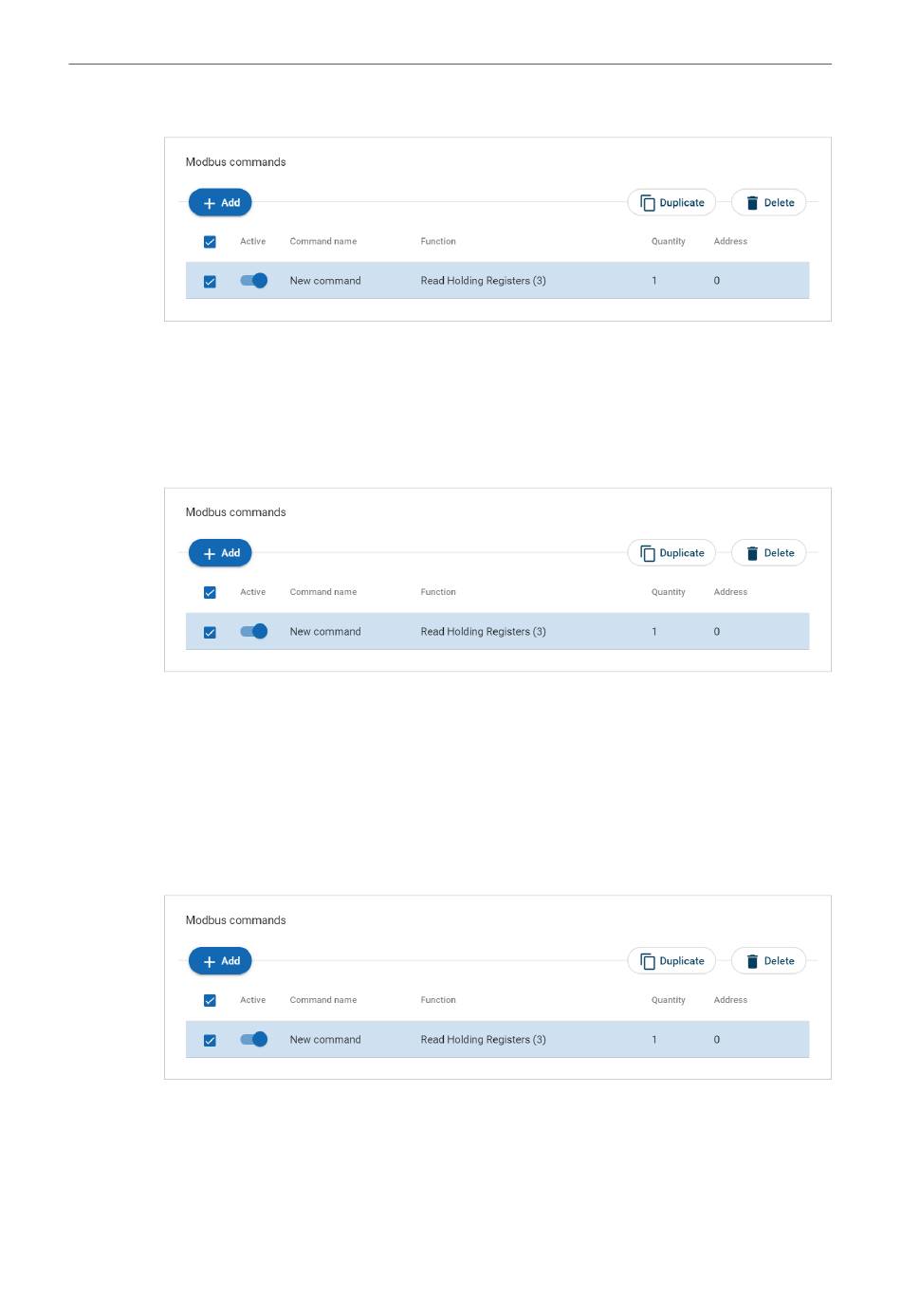

7.8.6 Activate/Deactivate Transaction
The transaction default status is Active.
To deactivate/activate a transaction, select the transaction and click the slide toggle.
7.8.7 Duplicate Transaction
When you duplicate a transaction, all settings are preserved.
To duplicate:
• One transaction, select the transaction and click Duplicate.
• Multiple transactions, select the checkbox in front of each transaction you want to duplicate
and click Duplicate.
→ The duplicated transaction are added at the bottom of the transactions list.
7.8.8 Delete Transaction
1. To delete:
– One transaction, select the transaction and click Delete.
– Multiple transactions, select the checkbox in front of each transaction and click Delete.
2. To confirm, click Yes.
® ™
Anybus Communicator User Manual
66 (124)
SCM-1202-152 1.10 en-US
