High Level Network Settings

Configure the EtherNet/IP network settings.
7.9.1 To Use Automatic I/O Sizes
By default, the Communicator is set to use automatic I/O sizes.
The size of the input data, Data Size to EtherNet/IP
EtherNet/IP

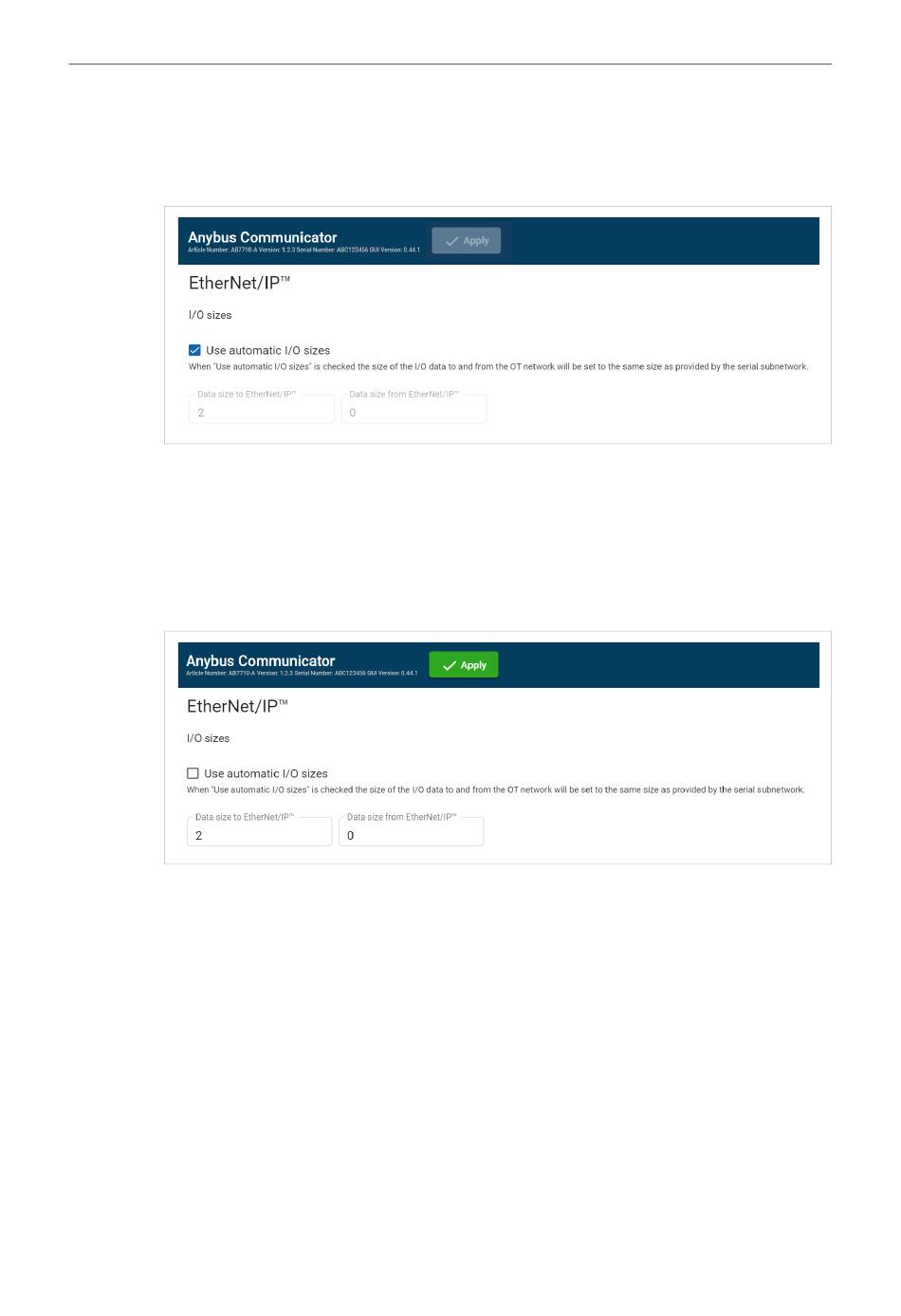

In the Communicator built-in web interface, the Use Automatic I/O Sizes checkbox is selected.
7.9.2 To Configure I/O Sizes Manually
1. Deselect the Use Automatic I/O Sizes checkbox.
2. Enter a value for Data Size to EtherNet/IP
® ™
Anybus Communicator User Manual
™ , is determined by the subnetwork configuration.
™
, and the output data, Data Size from
™
and a value for Data Size from EtherNet/IP
