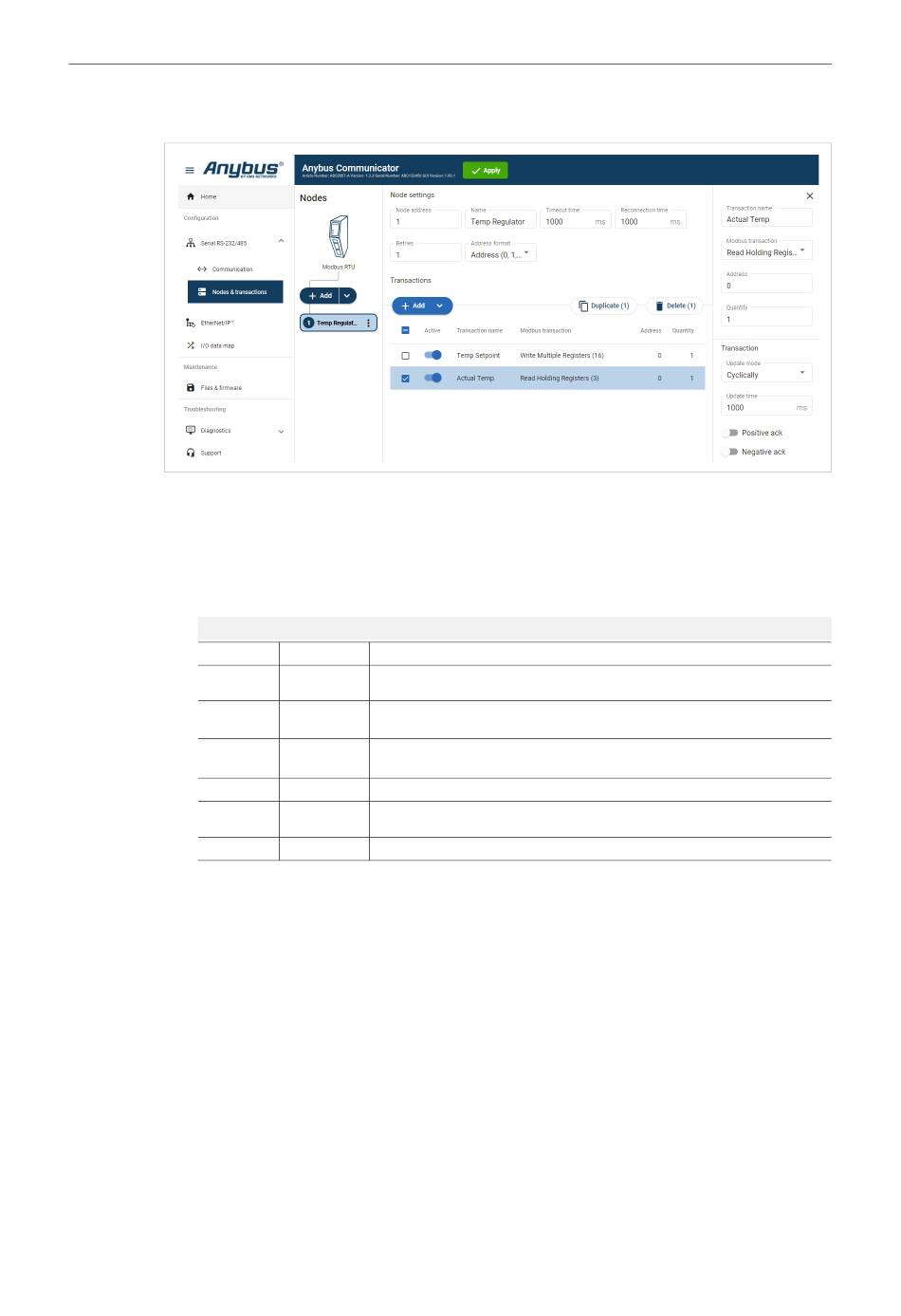

Configure the actual temperature transaction:
5. To add a second transaction, click Add.
6. Select the transaction to configure.
7. In the transaction sidebar, on the right side of the screen.
Enter values for the transaction settings.
Actual temperature transaction settings:
Setting
Transactio
name
Modbus
transaction
Address
Quantity
Update
mode
Update time 1000 ms
® ™
Anybus Communicator User Manual
Description
Value
Actual Temp Give the transaction a name.
Read Holding This register read the actual temperature from the temperature regulator to the
Registers (3) PLC.
Address: 0 Address 0 is Register 1.
Register: 1
1
The transaction will address one data object.
Cyclically Default value, can not be changed.
The update cycle is 1000 ms.
