General Subnetwork Settings

7.5.1 Communication Serial Protocol
Before You Begin
Before starting the configuration, select the Serial protocol you want to use:
• Modbus RTU: Default setting. Use for serial devices that conform to the Modbus
communication specification.
• Custom Request/Response: Create your own custom request/response transactions.
The transactions can be based on the Modbus communication specification or fully
customized.
• Custom Produce/Consume: Create your own custom produce/consume transactions.
Procedure

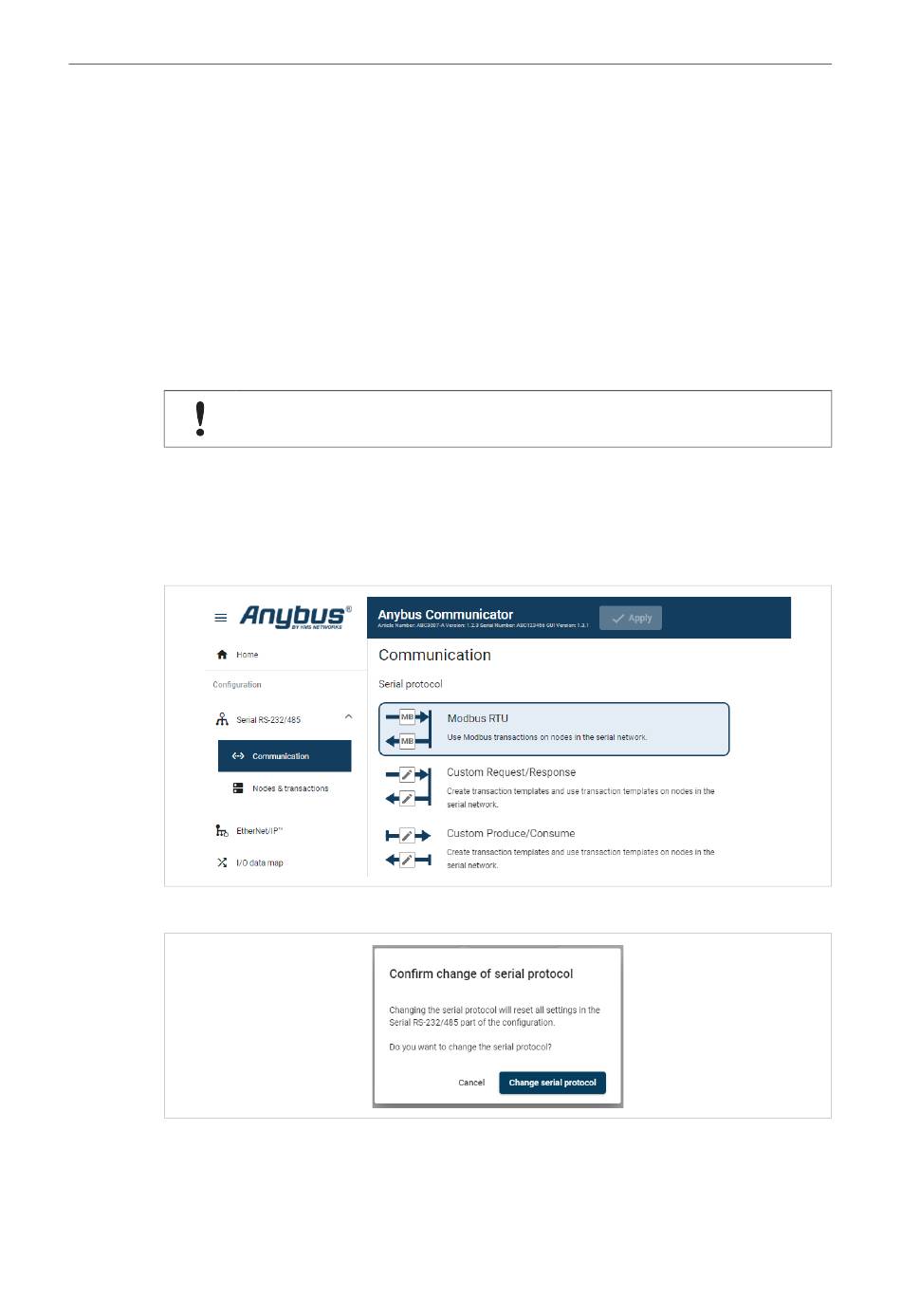

On the Communication page, Serial protocol:
1. To choose a Serial protocol, select Modbus RTU, Generic Request/Response or Custom
Produce/Consume.
2. To confirm the selected protocol, click Change serial protocol.
Apply configuration
3. To apply the settings, click Apply in the web-interface header, and follow the instructions.
® ™
Anybus Communicator User Manual
When changing the serial protocol, all settings are reset to default and all added nodes,
transactions, and transaction templates are deleted.
