Communicator Configuration
7.10.3
Map Area

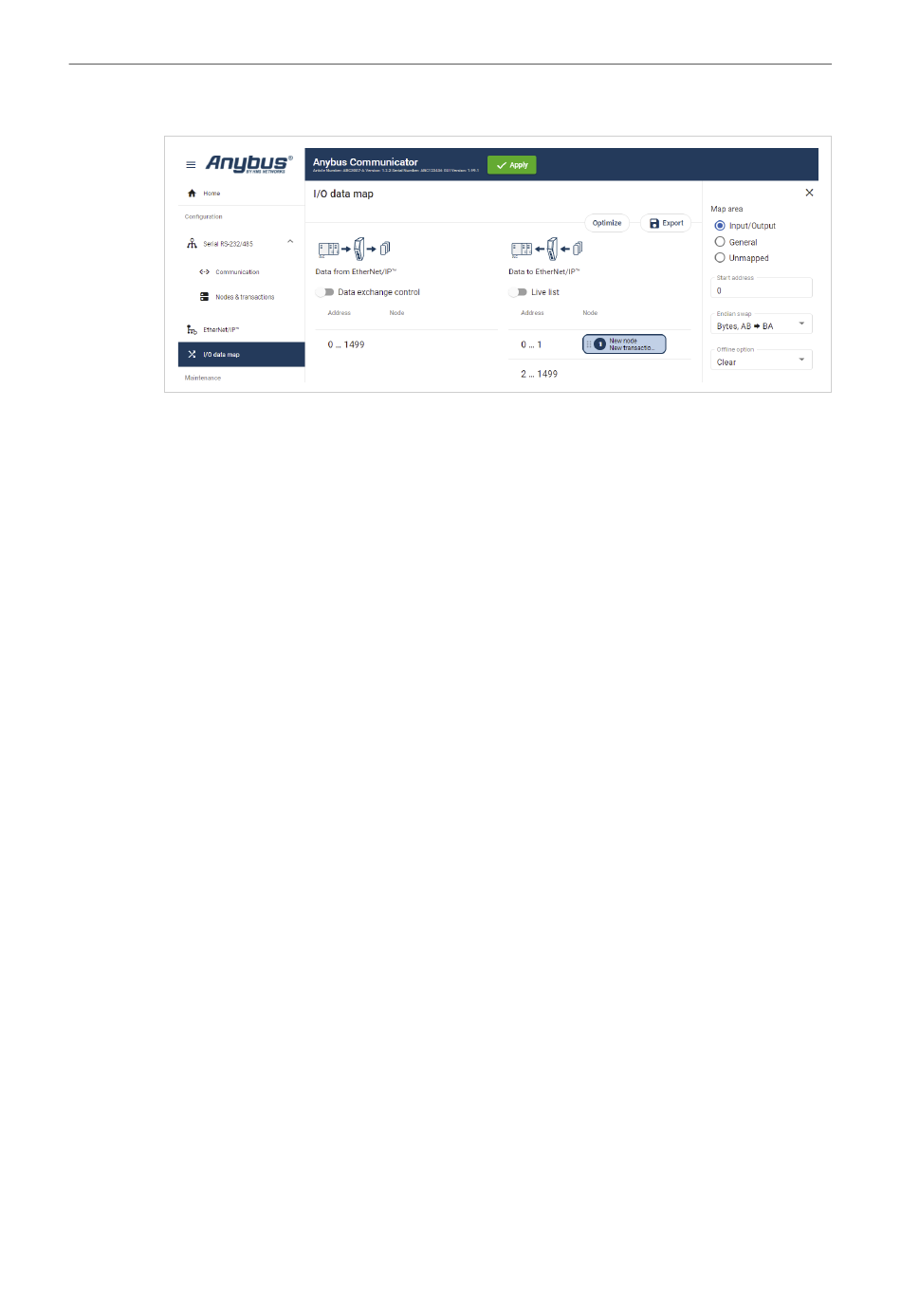

Map area options
You must specify the map area to use for each transaction in the I/O data map.
Select one of the following Map area options:
•
Input/Output: The transaction data is sent/recieved to/from the high level network.
•
General: This area is used for transferring transaction data between individual nodes on the
subnetwork.
When General is selected, the transaction data cannot be accessed from the high level
network.
•
Unmapped: The transaction data is not used.
Start address
For Input/Output and General, you can enter a start address for the transaction data.
®
™
Anybus
Communicator
User Manual
73 (124)
SCM-1202-152 1.10 en-US
