Configuration Quick Guide

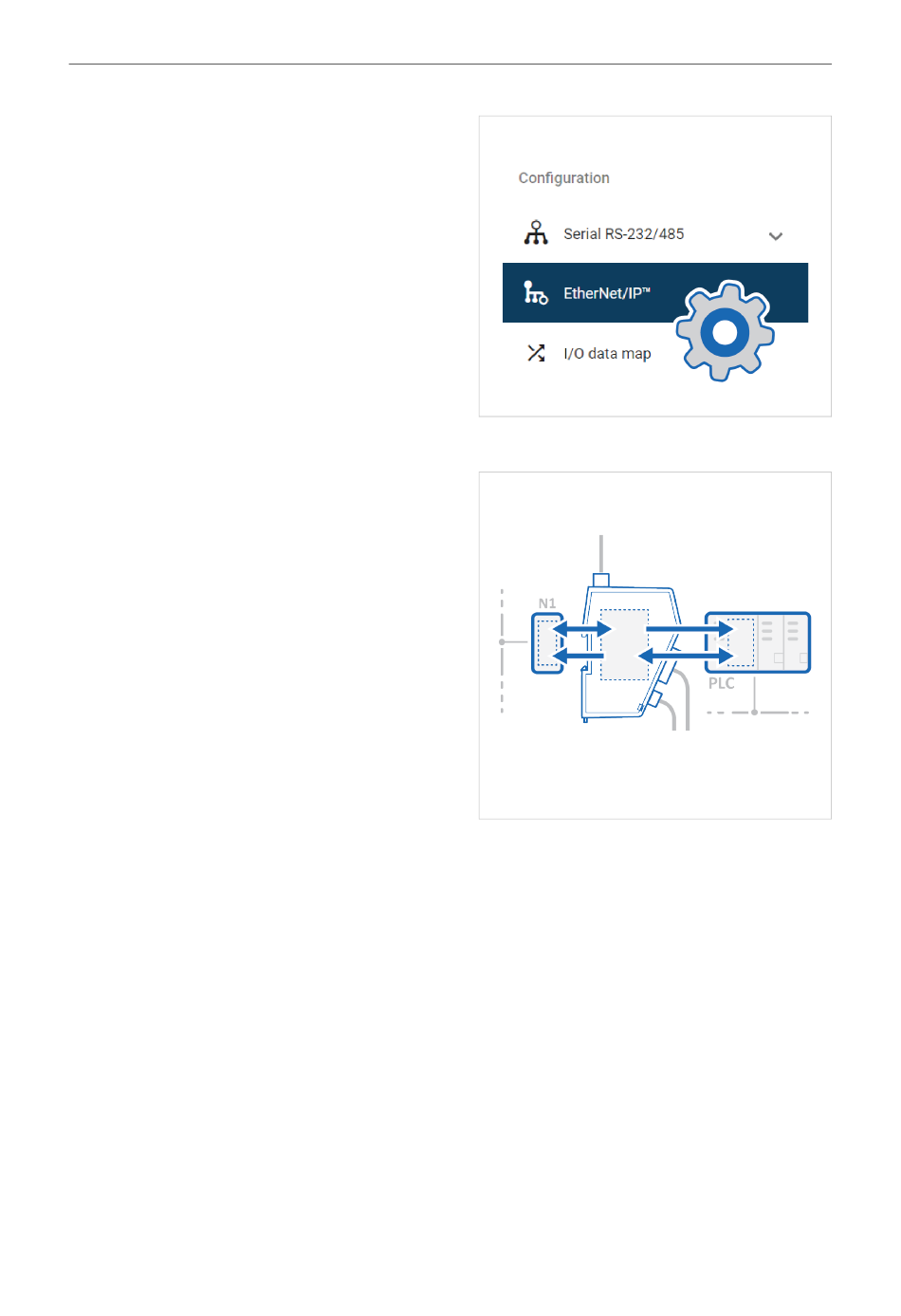

4. High level network configuration
On the EtherNet/IP
a.
Use Automatic I/O sizes provided by
the subnetwork or choose to set
them manually.
b.
Enable DHCP server or choose to set
a specific IP address.
c.
Apply the IP settings.
5. I/O Data Mapping
The transactions you added to the nodes
are automatically mapped to the
Communicator internal memory area.
View the added nodes and transactions
on the I/O data map page.
®
™
Anybus
Communicator
User Manual
™
page:
27 (124)
SCM-1202-152 1.10 en-US
