Installation
5.4
Connecting to Serial RS232/RS485 Subnetwork
Use minimum 90 oC copper (Cu) wire only.
1.

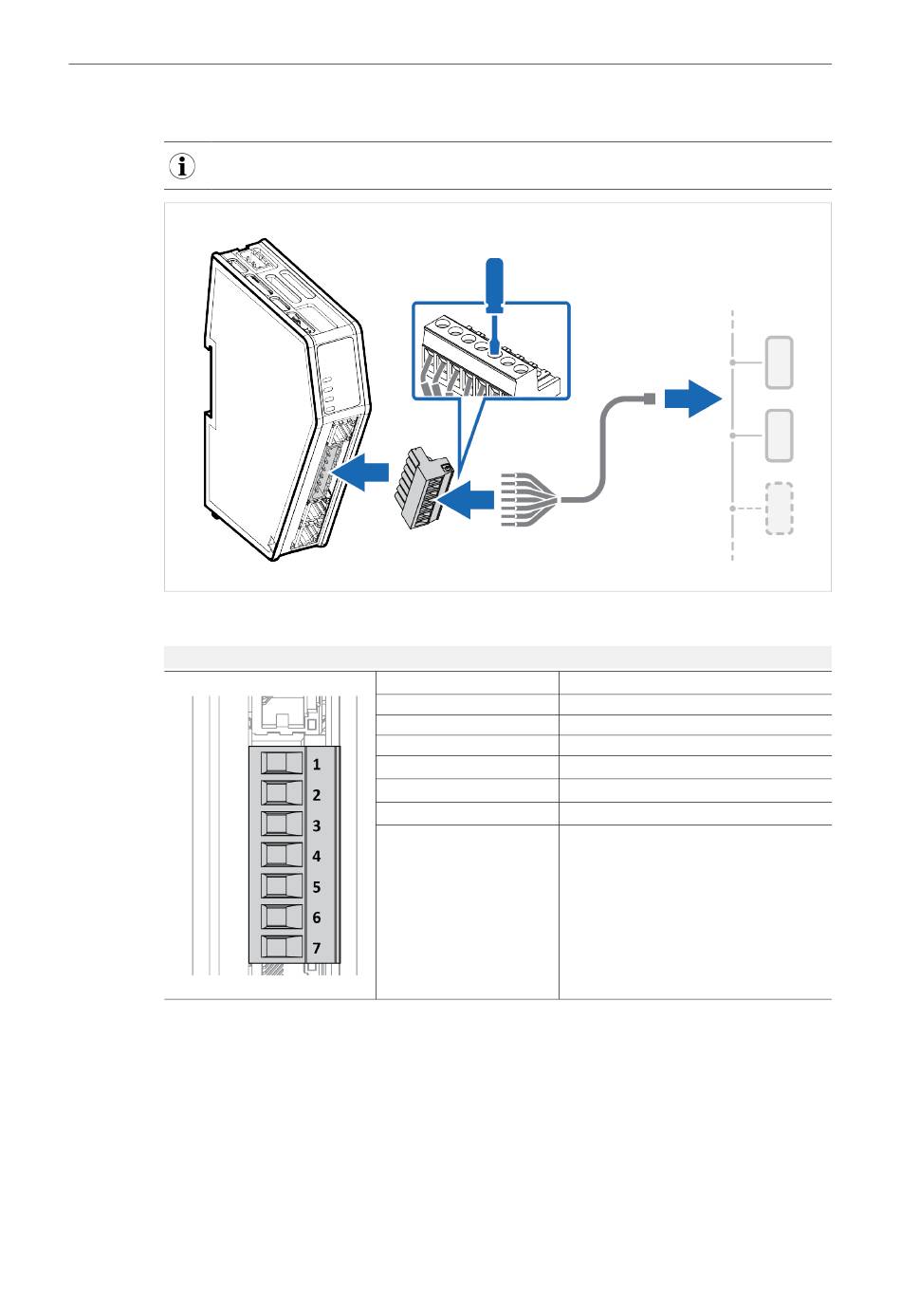

Insert the cable wires into the 7-pin connector and tighten the wire clamp screws.
7-pin connector
2.
Connect the 7-pin connector to the Communicator.
3.
Connect the Communicator to your serial subnetwork.
To Do Next
Connect the Communicator to the EtherNet/IP network and to power.
Check LED status, refer to
®
™
Anybus
Communicator
User Manual
Pin
1
2
3
4
5
6
7
Communicator LED Indicators, p.
Signal
+5 V OUT
RS485- A
RS485+ B
Signal GND
Functional Earth (FE)
RS232 Tx Output
RS232 Rx Input
86.
SCM-1202-152 1.10 en-US
19 (124)
