Communicator Built-In Web Interface Overview

6.4. Communicator Built-In Web Interface Overview
Use the Communicator built-in web interface to configure, maintain and troubleshoot the Communicator.

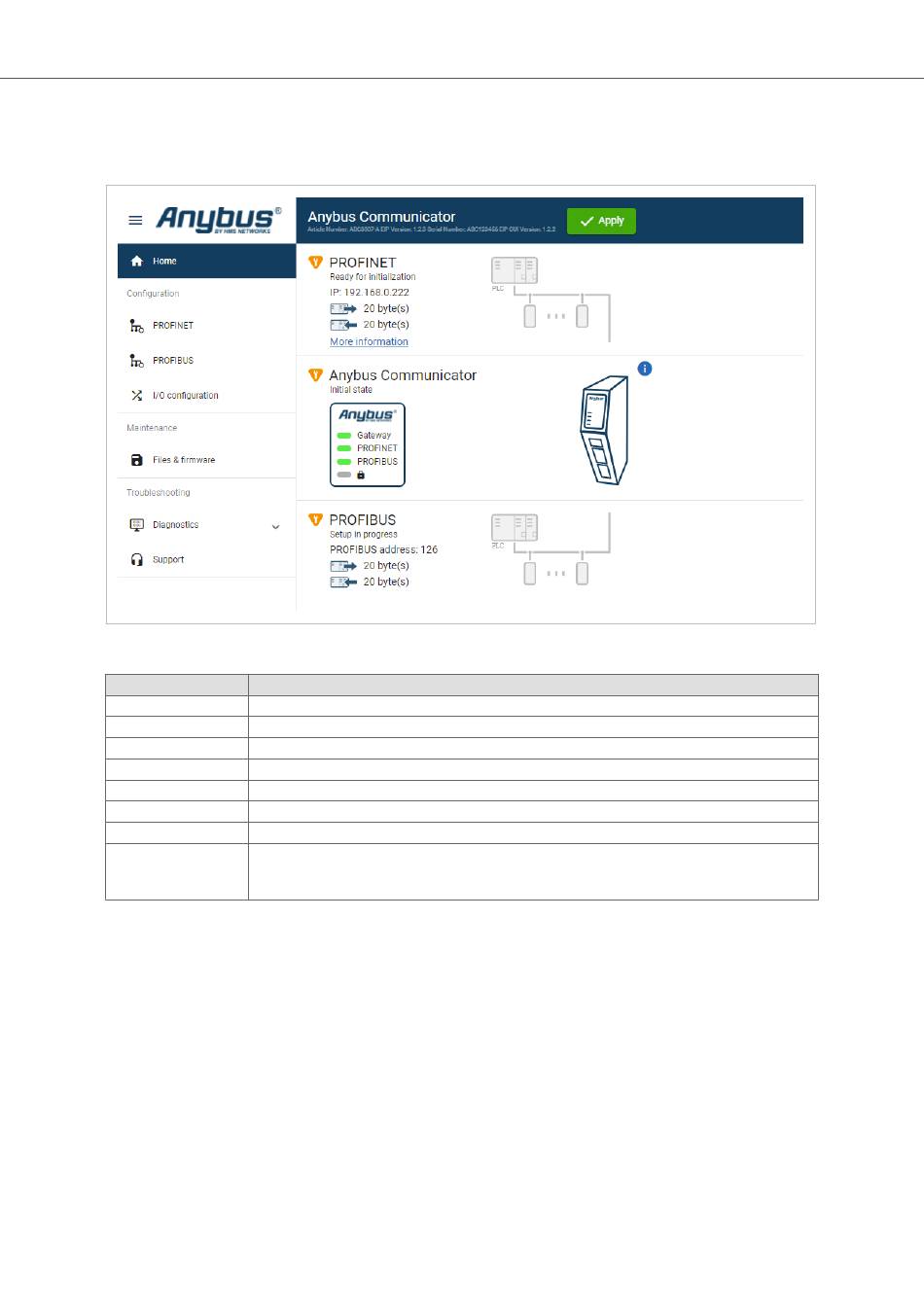

Figure 16. The Communicator built-in web interface Home page
Menu item Description
Home View the Communicator, network and node status.
Apply After configuration changes are made and verified, press Apply to make the settings take effect.
PROFINET Configure the network settings for the PROFINET network.
PROFIBUS Configure the network settings for the PROFIBUS network.
I/O configuration Configure input and output data sizes and endian conversion.
Files & firmware Save settings in a configuration files, upload configuration files and upgrade firmware.
Diagnostics Monitor and troubleshoot the Communicator.
Support Contains Communicator product information, Anybus contact information, link to Anybus support website, and
product file for download.
Here you can generate a support package with product information, to send to your Anybus support technician.
