About Anybus Communicator

4. About Anybus Communicator

4.1. How the Communication Works

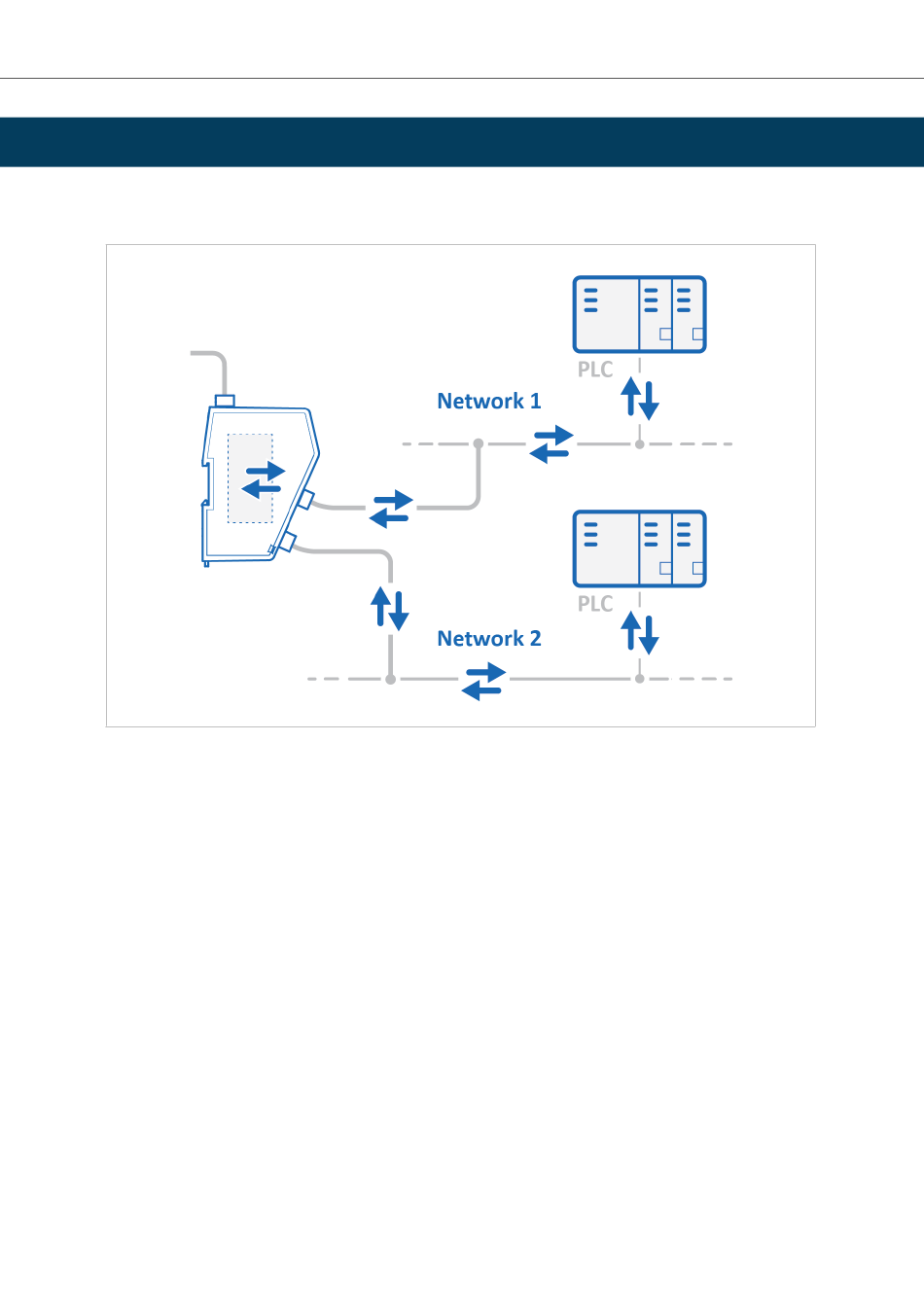

Figure 1. Process data traffic overview
The Communicator enables communication between a Master device connected to a PROFINET network and a
Master device connected to a PROFIBUS network.
The Master device can, for example, be a PLC control system or a Gateway.
The Communicator main task is to transfer cyclic I/O data between the two networks.
