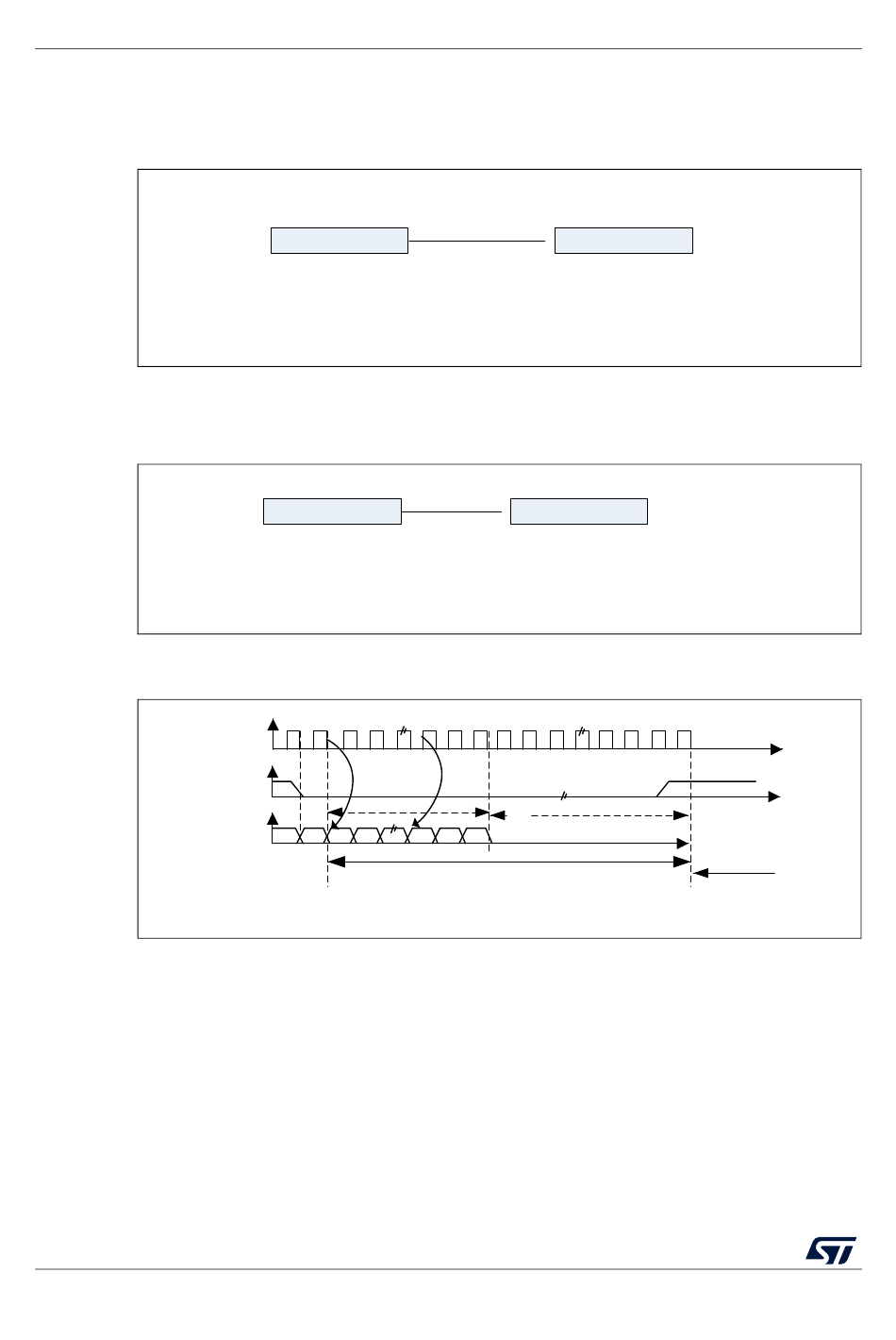

Figure 296. Transmitting 0X8Eaa33; Figure 297. Receiving 0X8Eaa33; Figure 298. I - ST STM32L0x3 Reference Manual

Serial peripheral interface/ inter-IC sound (SPI/I2S)
•
In transmission mode:
If 0x8EAA33 has to be sent (24-bit):
• In reception mode:
If data 0x8EAA33 is received:

Figure 298. I

When 16-bit data frame extended to 32-bit channel frame is selected during the I
configuration phase, only one access to the SPIx_DR register is required. The 16 remaining
bits are forced by hardware to 0x0000 to extend the data to 32-bit format.
If the data to transmit or the received data are 0x76A3 (0x76A30000 extended to 32-bit), the
operation shown in
