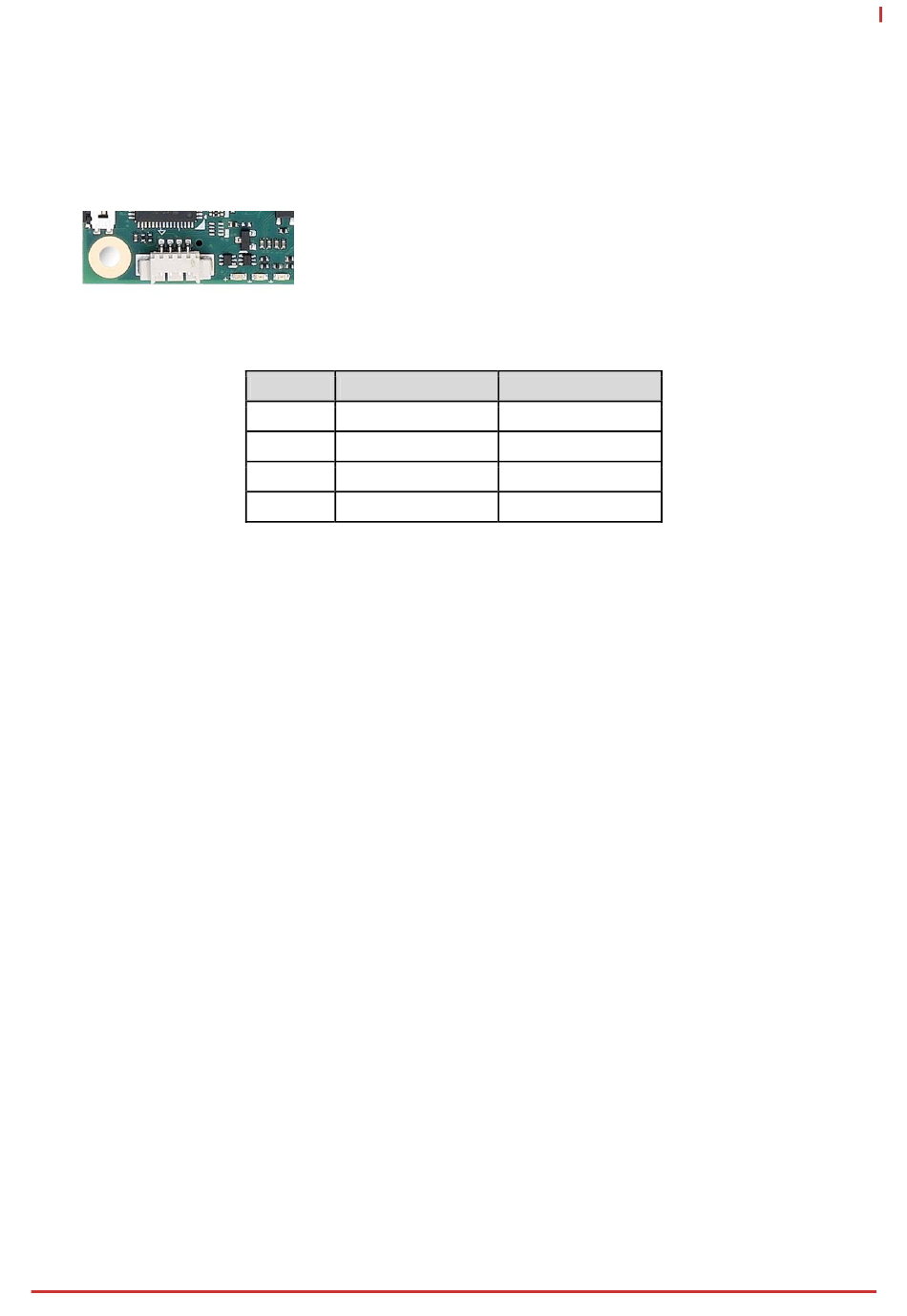

4.5.

Fan Connector

Connector Type: JVE 24W1125A-04M00
Pin Orientation
1 2 3 4
Pin Assignment
Connector Pinouts on Module
Name
Signal
1
BMC_FAN_OUT
2
BMC_FAN_PWM_IN
3
GND
4
P5V_S
Table 5: Fan Connector Pin Definition
Description
FAN_PWMOUT
FAN_TACHIN
Ground
5V
cExpress-KL
33
