COM-HPC-ALT User's Guide

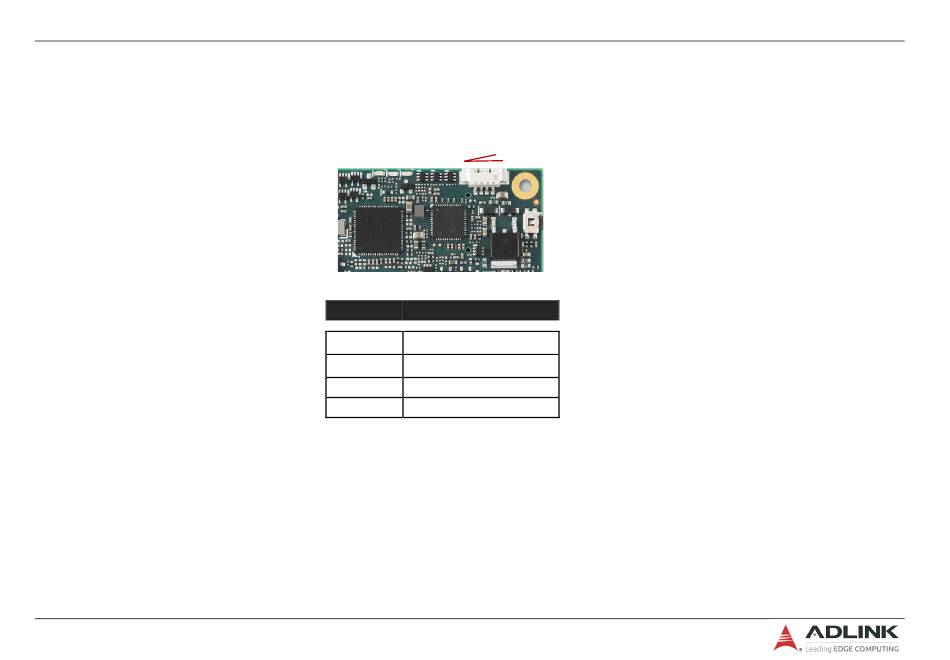

5.3 Fan Connector

Connector Type: JVE 24W1125A-04M00
The supply voltage and maximum current of the fan connector is dependent on the module's input voltage (VCC_12V pins)
If the module's input voltage is 12V or lower, the supply voltage will be equal to the module's input voltage and the maximum supply current of
•
the fan connector will be TBC mA.
If the module's input voltage is from 12V to 20V, the supply voltage will be 12V (± 5%) and the maximum supply current of the fan connector
•
will be TBC mA..
Page 34
4 3 2 1
Name Description
1 FAN_PWMOUT
2 FAN_TACHIN
3 GND
4 12V*
