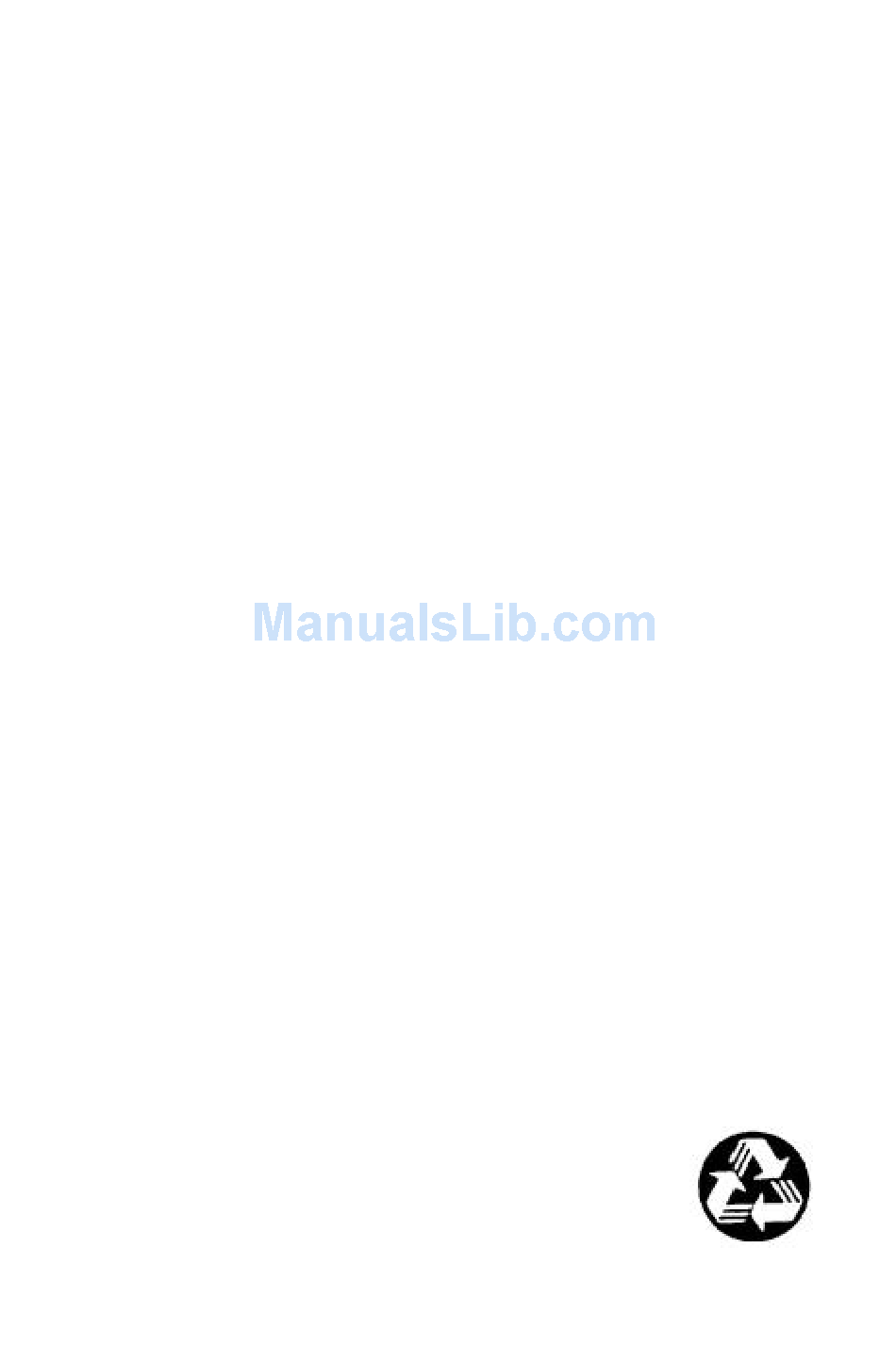

- Page 1 All-in-One Pentium W/Flash Disk CompactPCI 3U CPU Card User Guide Recycled Paper...
- Page 3 No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Acknowledgments cPCI-8586 is trademark of ADLINK Technology Inc. All trademarks and registered trademarks mentioned herein are the property of their respective owners.
-
Page 5: Table Of Contents
Table of Contents Chapter 1 Introduction............1 Specifications ..............2 Chapter 2 Jumpers and Connectors.........4 Jumpers setting ...............4 Connectors..............8 Chapter 3 Installation ............9 Installing the SO-DIMMs...........9 Installing the CPU............10 Completing the Installation..........10 Chapter 4 Award’s BIOS Setup.........11 Entering Setup............... 11 Control Keys .............. -
Page 7: Chapter 1 Introduction
8 HP thickness with hard disk driver or 12 HP with both of hard disk and floppy disk drivers as an option. The cPCI-8586 supports Intel Pentium MMX processor up to 266 MHz or it’s compatible with eliminating of heat in whole system operating, its system memory can support up to 128 MB (by single SO DIMM socket) or 256 MB as maximum when dual SO DIMM is equipped. -
Page 8: Specifications
embedded application requiring a robust mechanical form factor on the space limited and crucial environments. It’s believed to be the main stream of industrial standard in the years of 2000. Specifications . CPU: INTEL P54C/P55C, AMD K5/K6, CRYIX M!/M2 Processor up to 233MHz. - Page 9 . Expansion Bus : Meet PICMG Compact PCI 3U standard bus interface. . Power Supply Voltage : +5V 4.0A. . Operating Temperature : 32 to 140 F (0 to 60 . Board Size : 160mm(L) X 100mm(W ) Introduction • 3...
-
Page 10: Chapter 2 Jumpers And Connectors
Jumpers and Connectors Jumpers setting CPU CORE/BUS RATIO (JP1, 13-18) Core/Bus ratio Jumper Illustration 13-18 2.0x 13-14 2.5x 13-14,15-16 3.0x 15-16 3.5x OPEN (P55C) 4.0x 13-14,17-18 4.5x 13-14,15-1617-18 5.0x 15-16,17-18 1.5x OPEN (P54C) CPU BASE SPEED SELECT (JP2, 15-18) Jumper 15-18 Illustration 50 MHz... - Page 11 CPU VCC3 Select (JP2, 1-6) Jumper Illustration P54C 1-3, 2-4 P55C 3-5, 4-6 USB connector (USB1, USB2) USB1,2 USB - USB + GROUND Watchdog/Power detect (JP1, 9-10) Watchdog time out gen. system reset 9-10 CPU VCORE Select (JP2, 7-14) CPU CORE 7-14 Jumper VOLTAGE...
- Page 12 2.8V CLOSE OPEN OPEN OPEN 2.9V CLOSE OPEN OPEN CLOSE 3.0V CLOSE OPEN CLOSE OPEN 3.1V CLOSE OPEN CLOSE CLOSE 3.2V CLOSE CLOSE OPEN OPEN 3.3V CLOSE CLOSE OPEN CLOSE 3.4V CLOSE CLOSE CLOSE OPEN 3.5V CLOSE CLOSE CLOSE CLOSE Disk On Chip (M-System) Address Select (JP1, 1-8) Jumper Illustration...
- Page 13 COM2 Type Select (JP3, JP4) Jumper 1-12 Illustration RS232 3-5,4-6,9-11,10-12 RS422 1-3, 2-4, 7-9, 8-10 RS485 1-3, 2-4, 7-9, 8-10 Jumpers and connectors • 7...
-
Page 14: Connectors
Connectors The connectors allow the CPU card to connect with other parts of the system. Some problems encountered with your system may be caused by loose or improper connections. Ensure that all connectors are in place and firmly attached. Component Label HDD (IDE) connector FDD connector... -
Page 15: Chapter 3 Installation
Installation This chapter describes the procedures for installing the cPCI-8586 CPU card into your system. The following is a list of typical peripherals required to build a minimum system: • Power supply and 3U Compact PCI backplane • IBM PC/AT keyboard •... -
Page 16: Installing The Cpu
Installing the CPU Match pin one (white dot) on the CPU with pin one of the PGA socket. Note pin one is marked on the board. In addition, the PGA socket has a diagonal corner or may have an arrow marked on the base of the socket denoting the side containing pin one. -
Page 17: Chapter 4 Award's Bios Setup
Award’s BIOS Setup Award's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backup RAM (CMOS RAM). When the power is off, it will retain the Setup information. -
Page 18: Control Keys
Control Keys Up arrow Move to previous item Down arrow Move to next item Left arrow Move to the item in the left hand Right arrow Move to the item in the right hand Main Menu -- Quit and not save changes into CMOS Esc key Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu... -
Page 19: Getting Help
Getting Help Main Menu The on-line description of the highlighted setup function displays at the bottom of the screen. Status Page Setup Menu/Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <F1>... - Page 20 For the more details of the AWARD’s BIOS CMOS Setup Utility, please refer to the “AWDBIOS.DOC” in the “Manual and Software Utility CD Disk”. 14 • AWARD’s BIOS Setup...
-
Page 21: Appendix A Watchdog Timer
Appendix A Watchdog Timer Watchdog Timer Configuration The watchdog timer would reset the system automatically if the system program didn’t refresh the watchdog timer during the watchdog time out interval. It is defined at I/O port 0443H and 043H to enable/disable the watchdog time out function. - Page 22 in al, dx jmp short $+2 or al, 08h out dx, al jmp short $+2 Watchdog Time Out Table: Time Value Time Out (sec) Time Value Time Out (sec) None 0.015 0.03 0.06 0.125 0.25 (2) Enable watchdog output: mov dx, 443h ;...
-
Page 23: Appendix B Connectors' Pin Assignment
Appendix B Connectors’ Pin Assignment Parallel/Printer connector (PRN) Pin no. Signal Pin no. Signal Strobe -Acknowledge Data 0 Busy Data 1 Paper Empty Data 2 + Select Data 3 - Auto Feed Data 4 - Error Data 5 - INIT Printer Data 6 - Select Input Data 7... - Page 24 -IO CS16 N.C. -ACT N.C. FDD Connector (FDD) Pin no. Signal 15,17,23,25 7,11,13,19,21 Unused Index Driver Select A Disk Change High Density 1 High Density 0 Motor Enable A Direction Step Pulse Write Data Write Enable Track 0 Write Protect Read Data Select Head RS-232 Connector (COM1)
- Page 25 RS-232/422/485 Connector (COM2) Pin no. RS232 RS422 RS485 DATA- DATA+ Keyboard connector ( Mini_Din ) PS/2 mouse ( Mini. Din) Pin no. Signal Pin no. Signal KB data MS data KB clock MS clock Compact PCI 64-Bit Connector(P2) Pin Assignments CLK6 CLK5 PRST#...
- Page 26 V(I/O) V(I/O) CLK4 GNT3# REQ4# GNT4# CLK2 CLK3 SYSEN# GNT2# REQ3# CLK1 REQ1# GNT1# REQ2# Compact PCI 64-Bit Connector (P1) Pin Assignments REQ64# ENUM# 3.3V V(I/O) ACK64# 3.3V 3.3V 3.3V C/BE0# AD12 V(I/O) AD11 AD10 3.3V AD15 AD14 AD13 SERR# 3.3V C/BE1# 3.3V...
-
Page 27: Appendix C Installing Diskonchip Of M-Systems
Appendix C Installing DiskOnChip of M-systems On the cPCI-8586 board, you can find the socket, location U7, for DiskOnChip of M -systems. Please follow the procedures as below to install the DiskOnChip you bought: I. For 32-pin DiskOnChip Align the notched end of the chip with the notched end of the socket. -
Page 28: Appendix D Updating Bios
Appendix D Updating BIOS You should find one diskette for updated BIOS program in the package. The updating procedures are as the following: Insert the diskette(There is a file “ AWDFLASH.EXE’) in drive A or B. Type AWDFLASH under the prompt A or B. The screen will ask you to enter the file name for programming. -
Page 29: Product Warranty/Service
Product Warranty/Service ADLINK warrants that equipment furnished will be free from defects in material and workmanship for a period of one year from the date of shipment. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation. This warranty shall not apply to equipment that has been previously repaired or altered outside our plant i n any way as to, in the judgment of the manufacturer, affect its reliability.
