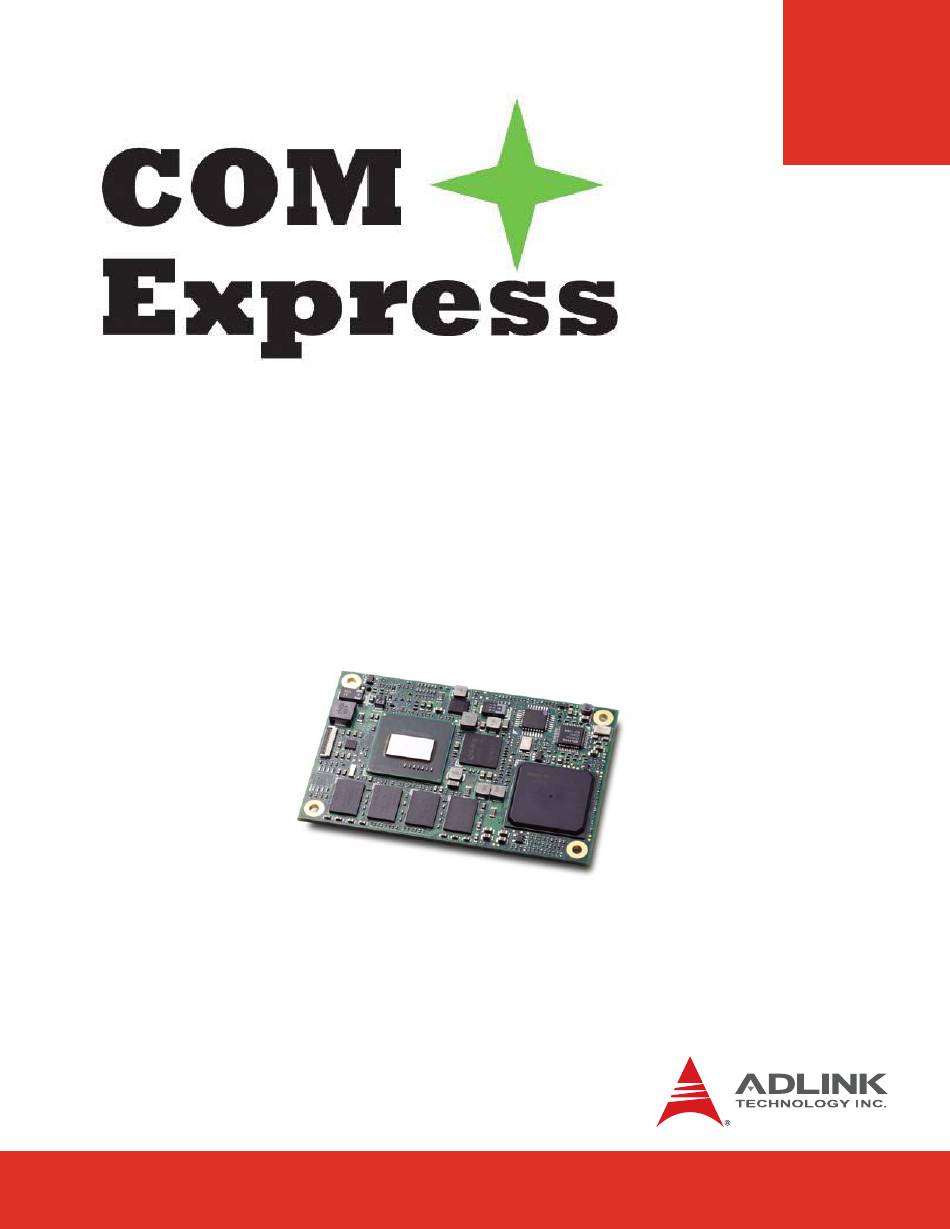

  • Page 1 COM.0 Rev. 2.0 Type 10 nanoX-TC User’s Manual Manual Revision: 2.01 Revision Date: April 1, 2013 Part Number: 50-1J037-1010...
  • Page 2 Revision History Release Date Change 2.00 2011/07/11 Initial release 2.01 2013/04/01 Correct PCIe port used for EG20T PCH Page 2 nanoX-TC User’s Manual...

  • Page 3: Table Of Contents

    Table of Contents Preface ..........................5 1 Introduction ....................... 7 Description ........................... 7 2 Specifications ......................8 Core system ......................... 8 Video ............................ 8 Audio ............................ 9 LAN ............................9 Multi I/O ..........................9 Super I/O ..........................9 SDIO/MMC Extension ......................10 Operating Systems ......................
  • Page 4 Direct Memory Access Channels ..................24 Legacy I/O Map ........................25 Interrupt Request (IRQ) Lines ................... 27 8 BIOS Setup Utility ....................30 Starting the BIOS ........................ 30 UEFI BIOS Setup Navigation ..................... 31 Main Setup ......................... 32 Advanced BIOS Setup ....................... 33 Chipset Configuration ......................

  • Page 5: Preface

    Preface Copyright 2012 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 6 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task.

  • Page 7: Introduction

    1 Introduction Description No bigger in size than a business card, the nanoX-TC is a COM Express™ Mini form factor Type 10 computer-on-module that targets battery powered, mobile and handheld system designs. The new Mini size form factor with a footprint of just 55 mm x 84 mm is the smallest size in ADLINK's COM Express product lineup, next to the Basic size (125 mm x 95 mm) and Compact size (95x95) form factors.

  • Page 8: Specifications

    2 Specifications Core system - Intel® Atom™ E680, 1.6 GHz, 3.9 W TDP - Intel® Atom™ E660, 1.3 GHz, 3.3 W TDP - Intel® Atom™ E640, 1.0 GHz, 3.3 W TDP - Intel® Atom™ E620, 600 MHz, 2.7 W TDP All processors support Intel®...

  • Page 9: Audio

    LVDS Interface: Single channel 18- or 24-bit pixel color depths with maximum resolution of up to 1280x768 @ 60 Hz. Pixel clock rate between 19.75 MHz (minimum) and 80 MHz (maximum) SDVO: Serial digital video output supporting devices for DVI, TV-out, analog VGA. Maximum resolution of up to 1280x1024 @ 85 Hz and pixel clock rate up to 160 MHz.

  • Page 10: Sdio/Mmc Extension

    SDIO/MMC Extension Chipset: Integrated in Intel® Controller Hub Type: Single port SDIO/MMC supports SDIO specification 1.1 and MMC specification 4.0 Connection: Multiplexed over GPIO signals to carrier Operating Systems Standard Support - Windows 7 - Linux 2.6.x Extended Support (BSP) - Linux BSP - AIDI I2C Library for Windows and Linux - WinCE 6.0 / 7.0...

  • Page 11: Power Consumption

    2.11 Power Consumption Power Consumption [W] 5Vsb 5Vsb nanoX-TC-E620 (2G) nanoX-TC-E640 (2G) nanoX-TC-E660 (2G) nanoX-TC-E680 (2G) 2.12 Ordering Codes nanoX-TC-E680-1G: Mini size COM Express Type 10 Module with Intel® Atom™ E680 processor at 1.6GHz, PCH EG20T and 1 GB DDR2 SDRAM nanoX-TC-E660-1G: Mini size COM Express Type 10 Module with Intel®...

  • Page 12: Functional Diagram

    3 Functional Diagram Soldered Memory 512 MB ~ 2 GB DDR2 BIOS LPC bus ® Intel Atom™ 18/24-bit LVDS processor SDVO HDA Audio E6xx 3x PCIe x1 (port 1~3) PCIe x1 (port 0) PCIe x1 (port 0) CAN Bus (Ax/Rx) UART (Tx/Rx) 2x SATA (port 0,1) ®...

  • Page 13: Mechanical Dimensions

    4 Mechanical Dimensions connector on Top View bottom side Side View tolerances ± 0.05 mm Other tolerances ± 0.2 mm Express-IA533 User’s Manual Express-IA533 User’s Manual nanoX-TC User’s Manual Page 13 Page 13 Page 13...

  • Page 14: Pinout And Signal Descriptions

    5 Pinout and Signal Descriptions COM Express Type 10 Pinout ™ All pinouts on AB connector of the nanoX-TC comply with pin-out and signal descriptions used in the “PICMG COM.0 R2.0: COM Express Module Base Specification Type 2”. ® ® This chapter details pinouts, signal descriptions, and mechanical characteristics of the nanoX-TC.

  • Page 15: Pin Definitions

    Pin Definitions B110 Pinouts comply with A110 COM Express Type 10 Row A Row B Row A Row B GND(F IXE D) G ND(FIXE D) R S VD R S VD GB E 0_ MDI3- G BE 0_ AC T# G ND GPO2 GB E 0_ MDI3+...

  • Page 16: Signal Descriptions

    Row A Signal Descriptions Signal Desc ription Type PU/PD C omment GND(FIXE D) Ground P WR GBE 0_ MDI3- E thernet Media Dependent Interface - I/O - DP GBE 0_ MDI3+ E thernet Media Dependent Interface + I/O - DP GB E 0_ LINK100# E thernet 100 Mbit/sec Link Indicator On at 100Mb/s...
  • Page 17 Row A Signal Descriptions (cont’d) Signal Desc ription Type PU/PD C omment R S VD G ND Ground P WR P CIE _ T X3+ P CIe 3 TX+ (port 0 of CP U, occupied) O - DP used for PC H E G20T P CIE _ T X3- P CIe 3 TX- (port 0 of CPU, occupied) O - DP...
  • Page 18 Row B Signal Descriptions (cont’d) Signal Desc ription Type PU/PD Comment GND(F IXE D) Ground GB E 0_ ACT # E thernet Activity L E D LPC _F R AME # L PC Frame Indicator O-3.3 LPC_ AD0 L PC multiplexed Adress & DATA B us IO-3.3 LPC_ AD1 L PC multiplexed Adress &...
  • Page 19 Row B Signal Descriptions (cont’d) Signal Desc ription Type PU/PD Comment R S VD GPO2 GP O2 or S DIO controller 0 Write Protect IO-3.3 PU 10k 3.3V B IOS s elect P CIE _R X 3+ P CIe 3 R X+ (port 0 of CP U, occupied) I - DP us ed for PCH E G20T P C IE _ R X3-...
  • Page 20 Signal Description Legend Signal Type Le ge nd IO-2,5 Bi-directional 2,5 V Input/Output IO-3,3 Bi-directional 3,3 V Input/Output IO-5 Bi-directional 5 V Input/Output I-3,3 3,3 V Input 5 V Input O-2,5 2,5 V Output O-3,3 3,3 V Output 5 V Output Input/Output Analog Output Digital Output...

  • Page 21: Embedded Functions

    6 Embedded Functions All embedded board functions on ADLINK’s Computer on Modules are supported at the operating system level using the ADLINK Intelligent Device Interface (AIDI) library. The AIDI API programming interface is compatible and identical across all ADLINK Computer on Modules and all supported operating systems.

  • Page 22: Gpio

    GPIO The COM.0 Rev 2.0 Type 10 standard specification allows for optional SDIO signals to be carried over the GPIO pins. On the nanoX-TC, the output mode is set to either SDIO or GPIO by BIOS setup. The nanoX-BASE has no special setting for this and will either output the GPIO signals to the GPIO header or the SDIO signals to the standard SDIO socket.

  • Page 23: Hardware Monitoring

    Hardware Monitoring To ensure system health of your embedded system ADLINK’s COM Express modules come with built in support for monitoring and control of CPU and system temperatures, fan speed and critical module voltage levels. The AIDI Library provides simple APIs at the application level to support these functions and adds alarm functions when voltage or temperature levels exceeds the upper or lower limit set by the user.

  • Page 24: System Resources

    7 System Resources System Memory Map Address Range (decimal) Address Range (hex) Size Description (4GB- 512KB) FFF80000 – FFFFFFFF 512 KB High BIOS area (4GB-16MB) – (4GB-16MB-48KB) FEFD4000 –FED4BFFF 48 KB TPM 1.2 (4GB-19MB) – (4GB-18MB-1KB) FED00000 – FED003FF 1 KB HPET (4GB-20MB) –...

  • Page 25: Legacy I/O Map

    Legacy I/O Map Address (hex) Size Description Comment 0000 - 001F 32 bytes DMA controller 0020 - 0021 2 bytes Interrupt controller 0024 - 0025 2 bytes Interrupt controller 0028 - 0029 2 bytes Interrupt controller 002C - 002D 2 bytes Interrupt controller 002E - 002F 2 bytes...
  • Page 26 Legacy I/O Map (cont’d) Address (hex) Size Description Comment 03F8 - 03FF 8 bytes COM1*** Note (***) 0400 - 041F 32 bytes Onboard SMBus control registers 0480 - 04BF 64 bytes GPIO control registers 04D0 - 04D1 2 bytes Interrupt controller 0900 - 090F 16bytes ACPI control registers...

  • Page 27: Interrupt Request (Irq) Lines

    Interrupt Request (IRQ) Lines PIC Mode IRQ# Typical Interrupt Resource Connected Available Counter 0 Keyboard controller Cascade interrupt from slave PIC Serial Port 2 (COM2) / PCI IRQ3 via SERIRQ Note (1) Serial Port 1 (COM1) / PCI IRQ4 via SERIRQ Note (1) AHCI SATA controller AHCI SATA controller...
  • Page 28 APIC Mode (cont’d) IRQ# Typical Interrupt Resource Connected Available PCI-E Slot #0, 1, 2, 3, VGA controller, Yes (2) High Definition Audio controller, USB controller #1,2,3, Gigabit Ethernet, I2C controller, IEEE1588 controller, GPIO controller, CAN controller, EHCI controller #1 SATA AHCI controller Yes (2) SD Host controller #1, 2 Yes (2)
  • Page 29 7.5 PCI Configuration Space Map Bus # Device # Function # Routing Description Notes Host Bridge (1) Host Bridge (1) Internal Intel Integrated Graphics Device(1) Internal Intel Video controller (1) Internal PCIE Port #0 (1) Internal PCIE Port #1 (1) Internal PCIE Port #2 (1) Internal...

  • Page 30: Bios Setup Utility

    8 BIOS Setup Utility The following chapter describes basic navigation for the AMIBIOS8 BIOS setup utility. Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...

  • Page 31: Uefi Bios Setup Navigation

    UEFI BIOS Setup Navigation The UEFI BIOS Setup Utility is a text-based basic input and output system that provides advance UEFI functionality with a familiar BIOS interface. The UEFI BIOS Setup Utility keyboard-based navigation can be accomplished using a combination of keys: <ENTER>...

  • Page 32: Main Setup

    Main Setup System and Board Information The Main BIOS setup screen reports processor, memory and board information. Project Version: Displays the current BIOS version. Build Data: Displays the BIOS build data. Total Memory: Displays the total memory. Page 32 nanoX-TC User’s Manual...

  • Page 33: Advanced Bios Setup

    Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen to go to the sub menu for that item.
  • Page 34 8.4.1 ACPI Settings CPU Configuration Settings You can use this screen to select options for the ACPI Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 35 8.4.2 CPU Configuration CPU Configuration Settings You can use this screen to select options for the CPU Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 36 Execute Disable Bit Capability This is an Intel hardware-based security feature that can help reduce system exposure to viruses and malicious code. It allows the processor to classify areas in memory where application code can or cannot execute. When a malicious worm attempts to insert code in the buffer, the processor disables its code execution, preventing damage and worm propagation.
  • Page 37 8.4.3 Wake On LAN Configuration You can use this screen to select options for the WOL Configuration Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 38 8.4.4 USB Configuration Legacy USB Support Enables legacy USB support. Auto option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications. Set this value to Enabled/Disabled/Auto. EHCI Hand-off This is a workaround for OS without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.
  • Page 39 8.4.5 H/W Monitor Use this screen to check system health status. Express-IA533 User’s Manual Express-IA533 User’s Manual nanoX-TC User’s Manual Page 39 Page 39 Page 39...
  • Page 40 8.4.6 Super IO Configuration You can use this screen to select options for the Super IO settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.
  • Page 41 8.4.7 Serial Port Console Redirection Console Redirection Set this value to enable/disable console redirection. Console Redirection Settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Express-IA533 User’s Manual Express-IA533 User’s Manual nanoX-TC User’s Manual...
  • Page 42 Terminal Type VT100+ is the preferred terminal type for out-of-band management. Configuration options: VT100, VT100+, VT-UTF8 , ANSI. Bits per second Select the bits per second you want the serial port to use for console redirection. The options are 115200, 57600, 38400, 19200, 9600. Data Bits Select the data bits you want the serial port to use for console redirection.
  • Page 43 8.4.8 Network Stack Enable / Disable the network stack (PXE and UEFI). An example of the Network Stack screen is shown below. Express-IA533 User’s Manual Express-IA533 User’s Manual nanoX-TC User’s Manual Page 43 Page 43 Page 43...

  • Page 44: Chipset Configuration

    Chipset Configuration Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of Chipset BIOS Setup options by highlighting it using the < Arrow > keys. The Chipset BIOS Setup screen is shown below. 8.5.1 North Bridge Chipset Configuration IGD Mode Select...
  • Page 45 Boot Display Configuration Boot Display Device Select the boot display device. Options: Auto, Integrated LVDS, or External DVI/HDMI (SDVO). Flat Panel Type When LVDS is selected from Boot Display Device, this option allows you to select resolution settings as below: LVDS Backlight Control When LVDS is selected from Boot Display Device, this option allows you to select LVDS Backlight settings as below:...
  • Page 46 8.5.2 South Bridge Chipset Configuration Audio Controller The audio controller. Set this value to Enabled/Disabled/Auto. SMBus Controller The SMBus controller. Set this value to Enabled/Disabled. PCI Express Ports Configuration PCI Express Root Ports Options: Enable, Disable. Page 46 nanoX-TC User’s Manual...

  • Page 47: Boot Setup

    Boot Setup Select the Boot tab from the setup screen to enter the Boot Setup screen. Quiet Boot Disabled - Set this value to allow the computer system to display the POST messages. Enabled - Set this value to allow the computer system to display the OEM logo. Fast Boot Disabled - Set this value to allow the BIOS to perform all POST tests.

  • Page 48: Security Setup

    Security Setup Administrator Password Use this option to set a password for administrators with full control of the BIOS setup utility. User Password Use this option to set a password for users with limited access to the BIOS setup utility. Page 48 nanoX-TC User’s Manual...

  • Page 49: Save & Exit

    Save & Exit Save Changes and Exit When you have completed the system configuration changes, select this option to save changes and continue booting the system. New configuration parameters will take effect after the next system restart. Discard Changes and Exit Select this option to quit Setup without saving changes to the system configuration and continue booting.
  • Page 50 Save Changes When you have completed the system configuration changes, select this option to save your system configuration and continue. For some of the options it required to reset the system to take effect. Select YES to Save Changes and continue. Discard Changes Discard any unsaved changes Restore Defaults...

  • Page 51: Bios Checkpoints, Beep Codes

    9 BIOS Checkpoints, Beep Codes This section of this document lists checkpoints and beep codes generated by AMIBIOS. The checkpoints defined in this document are inherent to the AMIBIOS generic core, and do not include any chipset or board specific checkpoint definitions. Checkpoints and Beep Codes Definition A checkpoint is either a byte or word value output to I/O port 80h.

  • Page 52: Status Code Ranges

    Status Code Ranges Status Code Range Description 0x01 – 0x0F SEC Status Codes & Errors 0x10 – 0x2F PEI execution up to and including memory detection 0x30 – 0x4F PEI execution after memory detection 0x50 – 0x5F PEI errors 0x60 – 0xCF DXE execution up to BDS 0xD0 –...
  • Page 53 PEI Status Codes Status Code Description Not used Progress Codes 0x10 PEI Core is started 0x11 Pre-memory CPU initialization is started 0x12 Pre-memory CPU initialization (CPU module specific) 0x13 Pre-memory CPU initialization (CPU module specific) 0x14 Pre-memory CPU initialization (CPU module specific) 0x15 Pre-memory North Bridge initialization is started 0x16...
  • Page 54 PEI Status Codes (cont’d) PEI Error Codes 0x50 Memory initialization error. Invalid memory type or incompatible memory speed 0x51 Memory initialization error. SPD reading has failed 0x52 Memory initialization error. Invalid memory size or memory modules do not match. 0x53 Memory initialization error.
  • Page 55 PEI Beep Codes # of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Reset PPI is not available Recovery failed S3 Resume failed DXE Status Codes Status Code...
  • Page 56 DXE Status Codes (cont’d) Status Code Description 0x92 PCI Bus initialization is started 0x93 PCI Bus Hot Plug Controller Initialization 0x94 PCI Bus Enumeration 0x95 PCI Bus Request Resources 0x96 PCI Bus Assign Resources 0x97 Console Output devices connect 0x98 Console input devices connect 0x99 Super IO Initialization...
  • Page 57 DXE Status Codes (cont’d) DXE Error Codes 0xD0 CPU initialization error 0xD1 North Bridge initialization error 0xD2 South Bridge initialization error 0xD3 Some of the Architectural Protocols are not available 0xD4 PCI resource allocation error. Out of Resources 0xD5 No Space for Legacy Option ROM 0xD6 No Console Output Devices are found 0xD7...

  • Page 58: Oem-Reserved Status Code Ranges

    OEM-Reserved Status Code Ranges Status Code Description OEM SEC initialization before microcode loading OEM SEC initialization after microcode loading 0x1D – 0x2A OEM pre-memory initialization codes 0x3F – 0x4E OEM PEI post memory initialization codes 0x80 – 0x8F OEM DXE initialization codes 0xC0 –...

  • Page 59: Important Safety Instructions

    Important Safety Instructions For user safety, please read and follow all instructions, warnings, cautions, and notes marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference. Read the specifications section of this manual for detailed information on the operating environment of this equipment.

  • Page 60: Getting Service

    5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax:...
  • Page 61 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: 1st Floor, #50-56 (Between 16th/17th Cross) Margosa Plaza, Margosa Main Road, Malleswaram, Bangalore-560055, India Tel: +91-80-65605817, +91-80-42246107 Fax: +91-80-23464606 Email: india@adlinktech.com...
