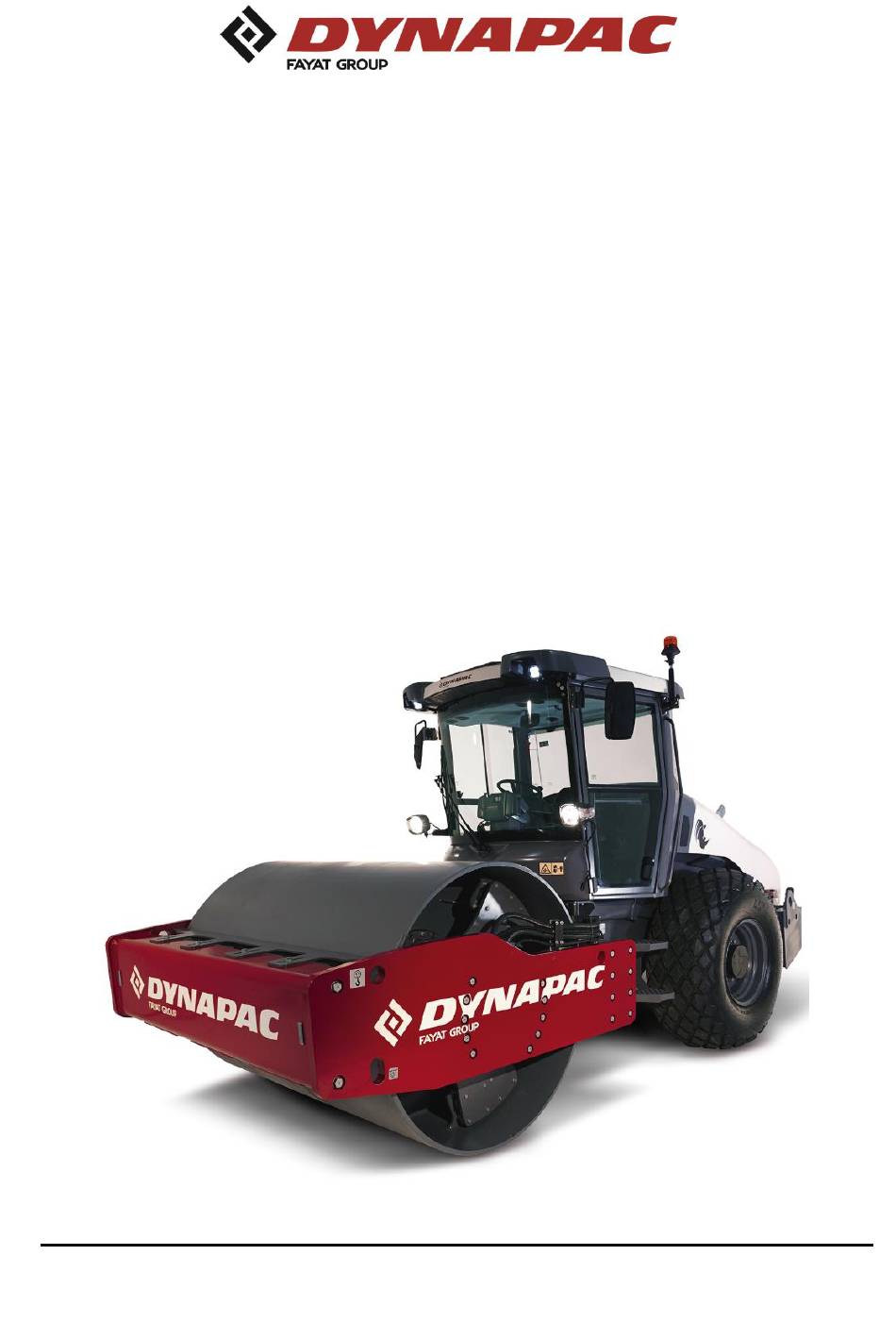

Instruction manual
4812325897EN
Operating & Maintenance
Vibratory Roller
CA25 / 30 / 35
Engine
Cummins QSF 3.8
From the serial number
10000179xxB006062 –
10000181xxB005992 –
10000183xxB006276 –
Reservation for changes
Printed in Brasil
