Selftest of ISP connector

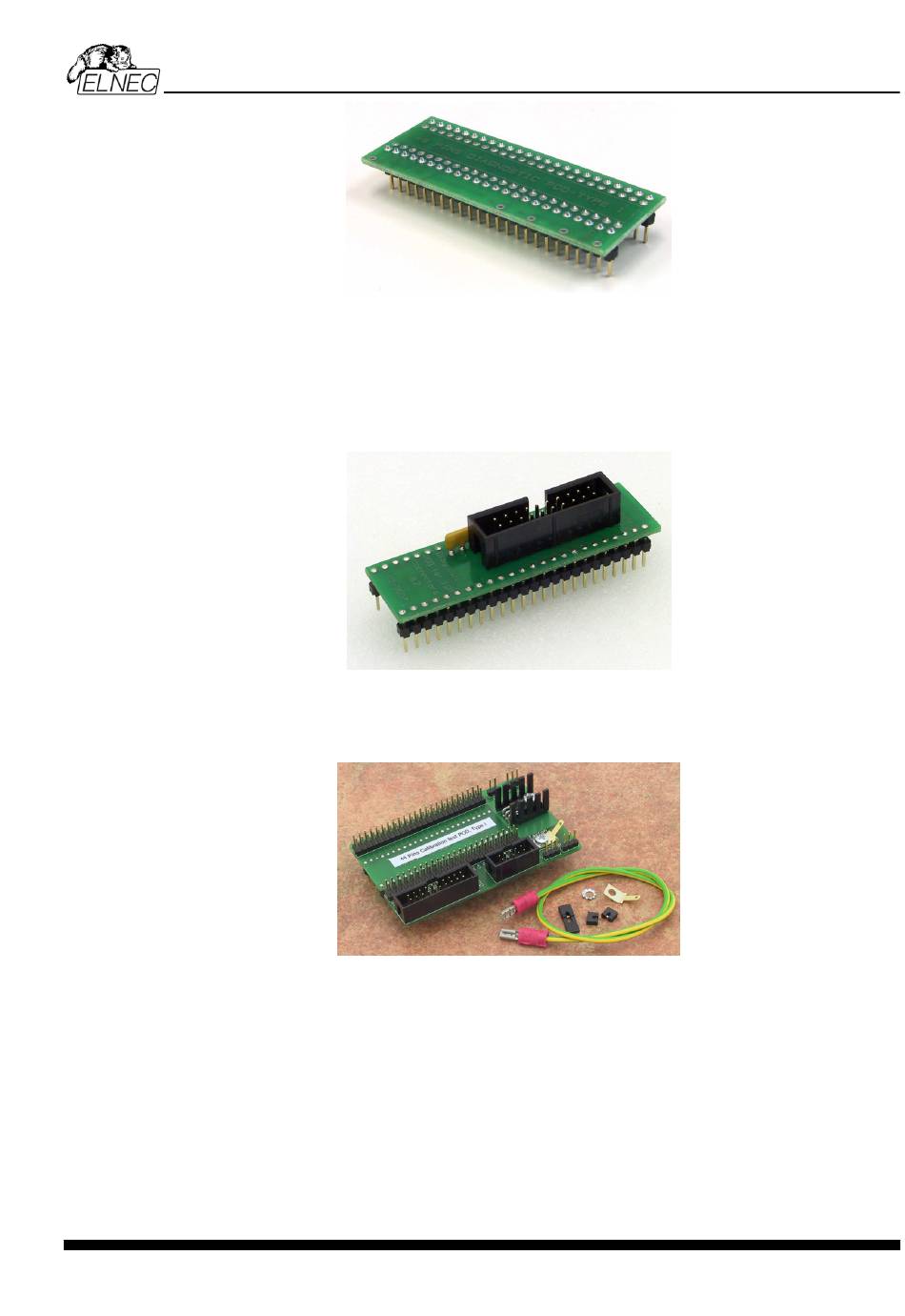

• Insert Diagnostic POD for ISP connectors #2 into ZIF socket of the programmer.
Diagnostic POD for ISP connectors #2 must be inserted as 48 pins device.
• Interconnect 20 pins connector of Diagnostic POD for ISP connectors #2 with an ISP
connector of the programmer with an ISP cable, included in delivery programmer
package. Be sure that pins are interconnected properly (i.e. 1-1, 2-2, ..., 20-20).
• Run selftest of ISP connector in Pg4uw (Programmer / Selftest ISP connector...).
Calibration test
• Insert 48 Pins Calibration test POD, Type I into ZIF socket of the programmer. 48 Pins
Calibration test POD, Type I must be inserted as 48 pins device.
• Run calibration test of programmer in Pg4uw (Programmer / Calibration test).

Technical specification

HARDWARE
Base unit, DACs
• USB 2.0 high-speed compatible port, up to 480 Mb/s transfer rate
• FPGA based IEEE 1284 slave printer port, up to 1MB/s transfer rate
• on-board intelligence: powerful microprocessor and FPGA based state machine
