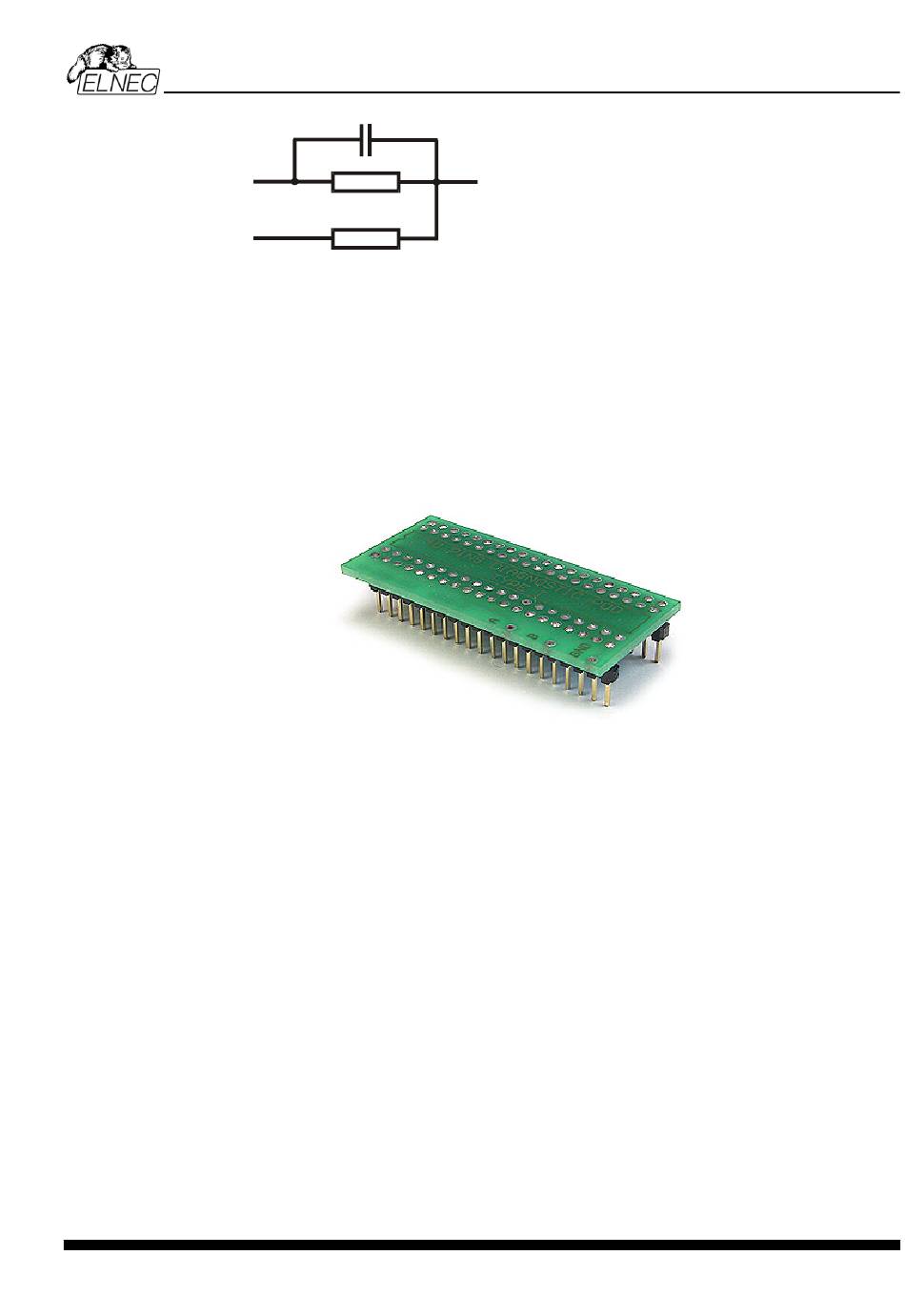

H/L/read driver
in programmer
PU/PD driver
in programmer
C1=1nF, R1=1k3, R2=22k

Selftest

If you feel that your programmer does not react according to your expectation, please run the
programmer selftest using Diagnostic POD, enclosed with the standard delivery package.
• Insert 40 pins diagnostic POD - type I into ZIF socket of the programmer. 40 pins
diagnostic POD - type I must be inserted as 40 pins device.
• Run selftest of programmer in Pg4uw (Programmer / Selftest plus).

Technical specification

HARDWARE
Programmer
• two D/A converters for VCCP and VPP, controllable rise and fall time
• VCCP range 2..7V/350mA
• VPP range 2..25V/200mA
• USB 2.0/1.1 compatible interface
• selftest capability
ZIF socket, pindriver
• 40-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 40-pins
• pindriver: 40 TTL pindrivers, universal GND/VCC/VPP pindriver
• FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins, level H
selectable from 1.8 V up to 5V
• continuity test: each pin is tested before every programming operation
C1
R1
pin of ISP
connector
R2
