The Jam Composer is a program, generally written by a programmable logic vendor, that
generates a Jam file (.jam) containing the user data and programming algorithm required to
program a design into a device.
The Jam Player is a program that reads the Jam file and applies vectors for programming and
testing of devices in a JTAG chain.
The devices can be programmed in ZIF socket of the programmer or in target system through
ISP connector. It is indicated by [PLCC44](Jam) or (ISP-Jam) suffix after name of selected
device in control program. Multiple devices are possible to program and test via JTAG chain:
JTAG chain (ISP-Jam)
More information on the website: http://www.altera.com
See please application notes:
"AN 425: Using the Jam Player to Program Altera Devices",
"AN 100: In-System Programmability Guidelines",
"AN 122: Using Jam STAPL for ISP & ICR via an Embedded Processor"
and related application notes for details.
Software tools:
Altera: MAX+plus II, Quartus II, SVF2Jam utility (converts a serial vector file to a Jam file),
LAT2Jam utility (converts an ispLSI3256A JEDEC file to a Jam file);
Xilinx: Xilinx ISE Webpack or Foundation software (generates STAPL file or SVF file for use
by utility SVF2Jam);

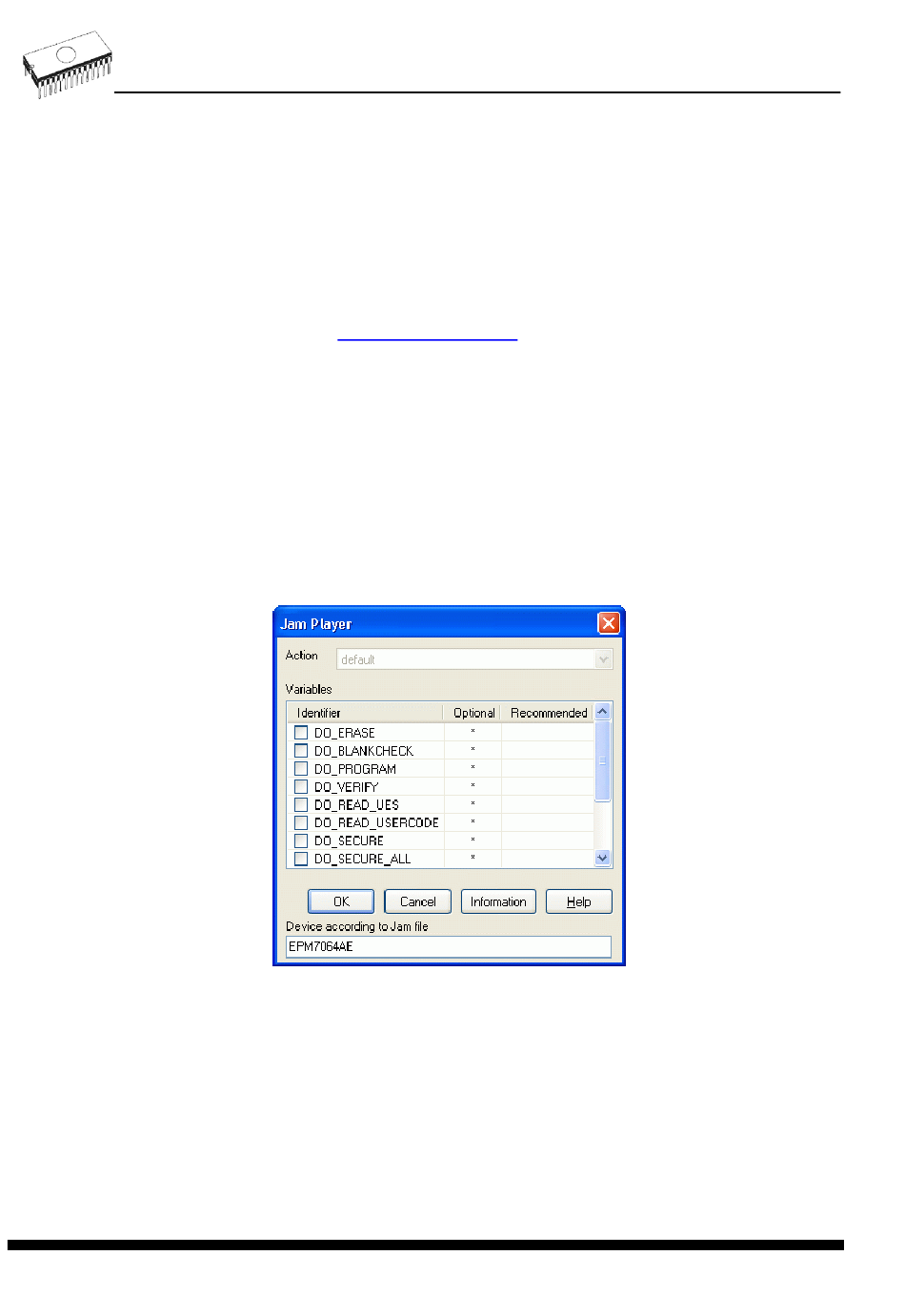

JAM player dialog
Jam Player version 1 (see Action and Variables controls)
