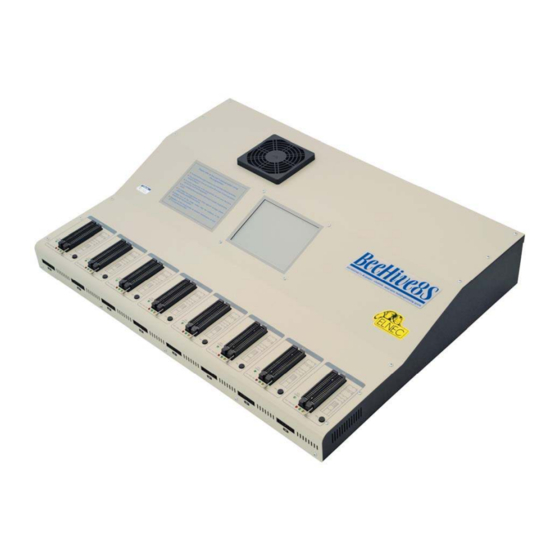

Elnec BeeHive8S User Manual

Fast universal 8x 48-pindrive stand-alone concurrent multiprogramming system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

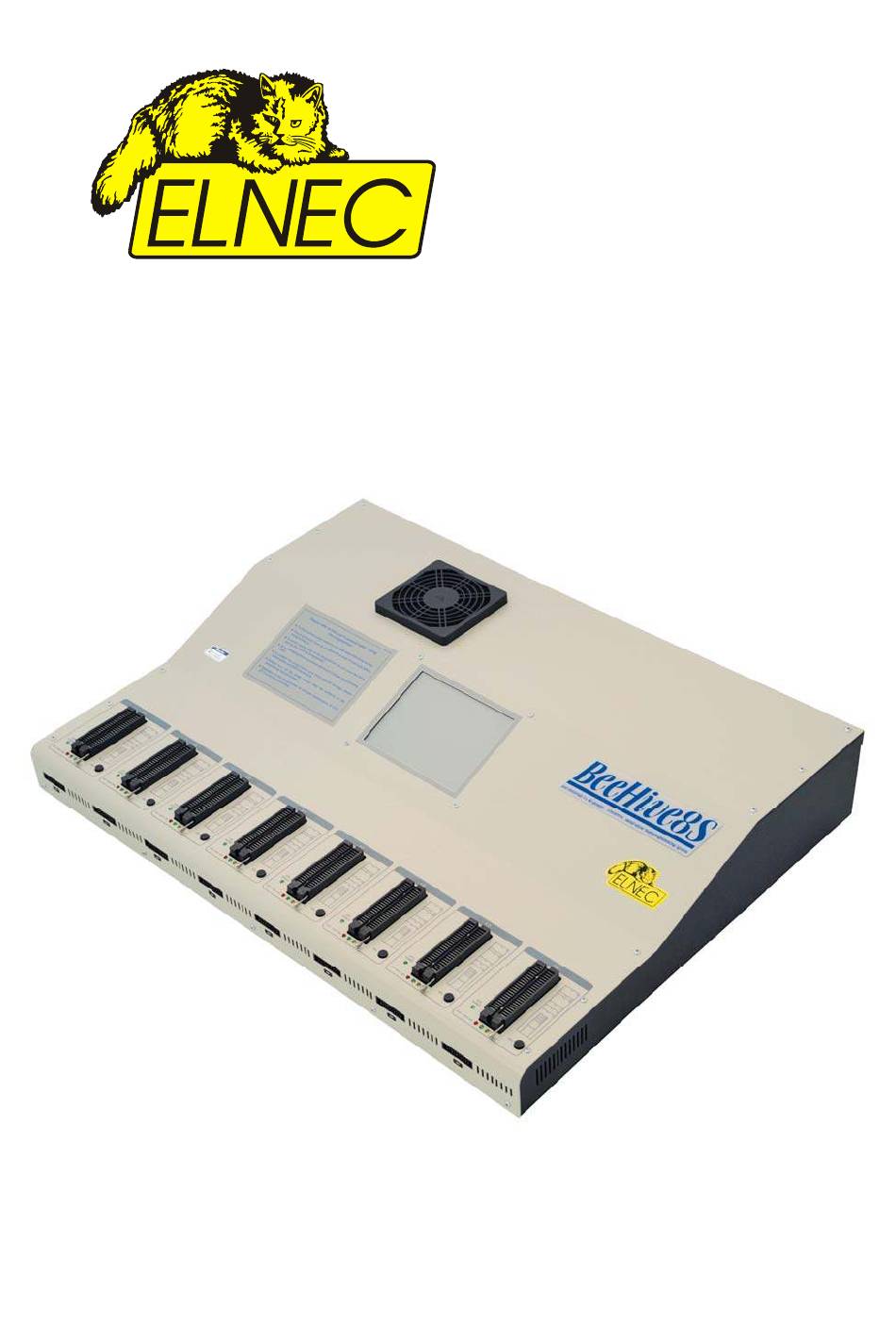

User's Manual for
BeeHive8S
Fast universal 8x 48-pindrive Stand-Alone concurrent multiprogramming system
ELNEC s.r.o.
Presov, Slovakia
March 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BeeHive8S and is the answer not in the manual?

Questions and answers

Related Manuals for Elnec BeeHive8S

Summary of Contents for Elnec BeeHive8S

  • Page 1 User's Manual for BeeHive8S Fast universal 8x 48-pindrive Stand-Alone concurrent multiprogramming system ELNEC s.r.o. Presov, Slovakia March 2009...
  • Page 2 ELNEC s.r.o. assumes no responsibility for misuse of this manual. ELNEC s.r.o. reserves the right to make changes or improvements to the product described in this manual at any time without notice. This manual contains names of companies, software products, etc., which may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    ELNEC s.r.o. Table of contents Introduction ..........................4 BeeHive8S elements ......................7 Manipulation with the programmed device ................8 In-system serial programming by BeeHive8S................ 8 Selftest and calibration check ....................9 Technical specification......................11 Programming a device......................16 Engineering mode........................ 16 Production mode........................

  • Page 4: Introduction

    The operator merely removes the finished chip and inserts a new chip. Operator training is therefore minimized. BeeHive8S supports all kinds and types of silicon technology found in today’s and tomorrows programmable devices without family specific modules. You can be sure that...
  • Page 5 As a result, when used in production this programmer waits for an operator, and not the other way round. BeeHive8S provides the two banana jacks, one for ESD wrist strap connection for easy-to-implement ESD protection and the second one for connection to ground.
  • Page 6 Monday through Friday 8:30 to 17:30 (CET). • Keep-Current is a service by which ELNEC ships to you the latest version of the control program for programmer and the updated user documentation. A Keep- Current service is your hassle-free guarantee that you always have access to the latest software and documentation, at minimal cost.

  • Page 7: Beehive8S Elements

    ELNEC s.r.o. BeeHive8S elements 48 pin ZIF socket work result LEDs power/sleep LED of site YES! Button ISP connector graphical control unit with touch screen fan's grid temperature controlled fans banana jack for connection to ground 10) banana jack for ESD wrist straps connection...

  • Page 8: Manipulation With The Programmed Device

    Don't unplug the target device from the ZIF socket during work with device (BUSY LED on). In-system serial programming by BeeHive8S Optimized advanced pindrivers deliver programming performance without overshoot or ground bounce for all device technologies. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low- voltage devices.

  • Page 9: Selftest And Calibration Check

    • Use only ISP cable from delivery package. When you use other ISP cable (other material, length…), programming may become unreliable. • BeeHive8S can supply power to the programmed device (pin 1 of ISP connector) and the target system (pin 19 and 20 of ISP connector) with some limitations (see Technical specification / ISP connector).
  • Page 10 ELNEC s.r.o. If you feel that y our programmer does not react according to your expecta tion, please run the programmer (ISP connector’s) selftest using D iagnostic POD (Diagnostic POD for ISP connectors #2), enclosed in the standard deliver y package.

  • Page 11: Technical Specification

    ELNEC s.r.o. Technical specification Specification (BeeHive8S multiprogramming system) • 8x universal programming module (8x 48-pin DIL ZIF sockets and 8x ISP connector) • operation result LEDs, LED power • line power input 100-240VAC/60W max. • banana jack for ESD wrist straps connection •...
  • Page 12 ELNEC s.r.o. • programmed chip voltage (VCCP) with both source/sink capability and voltage sense • 1x VPP voltage (range 2V..25V/50mA) • target system supply voltage (range 2V..6V/250mA) • ESD protection on each pin of ISP connector (IEC1000-4-2: 15kV air, 8 kV contact) •...
  • Page 13 ELNEC s.r.o. • Microcontrollers other: EM Microelectronic, Fujitsu, Goal Semiconductor, Hitachi, Holtek, Princeton, Macronix, Winbond, Infineon(Siemens), NEC, Samsung, Toshiba, ... Notes: • For all s upported devices see actual Device list at www.elnec.com rogrammer, through ISP connector • Serial E(E)PROM: IIC series, MW series, SPI series, KEELOQ...
  • Page 14 ELNEC s.r.o. This deceptive approach can "decrease" programming times considerably. If you plan to compare, ask alw ays which pattern they use. • The programming speed de pends on th e PC speed only slightly. SOFTWARE • Algorithms: onl y manufacture r approved or certifie algorithms are used.
  • Page 15 5°C ÷ 35°C (41°F ÷ 95°F) • humidity 20%..80%, non condensing age included Standard acc essories • BeeHive8S programmer • diagnostic POD for ZIF socket selftest of the programmer (1x) • diagnostic POD for ISP connector selfte st o f the programmer (1x) •...

  • Page 16: Programming A Device

    It is the same time proven software, as is used for all other Elnec single-site programmers. Engineers can use all properties of this software and can make a project for mass production.
  • Page 17 Connect external display, keyboard and mouse to PC connectors on back side of programmer. Turn on pr ogrammer. Run the control program: double click on icon. Find BeeHive8S Site (programmer): <Ctrl+F> or right click on panel Programmer...
  • Page 18 ELNEC s.r.o. Select BeeHive8S, Site and then click on “Connect” button. Select site. Select desired BeeHive8S Site# and then click on “OK” button Select device: click on icon and select desired device Load data into buffer from file: click on icon.
  • Page 19 ELNEC s.r.o. Set desired operations for the device and then click on “OK” button To customize device use menu <Alt+S> Set desired settings for the device and en click on “OK” button Note: Menu Device operation op tions and <Alt+S> depend on the selected device.

  • Page 20: Production Mode

    Save project: click on icon and select destination folder, write a description of project etc. You can make a project on other ELNEC programmers (BeeProg+…) too. For more details see Help for PG4UW (single site driver) and “User manual for all ELNEC programmers”.
  • Page 21 ELNEC s.r.o. When the built-in computer is turned on the operating system will start booting- up, cooling fans should start to work, and “Wait please” screen should be displayed on graphical control unit. Starting of the operating system can take some time normally this time is shorter than 1 minute.
  • Page 22 ELNEC s.r.o. Blank check Verify Program Erase For more details about predefined device operations, see chapter Menu Device / Predefined operation. Inser tion of devices in programmer sockets and start device operations Insert devices into programmer sockets and press Run <operation>...

  • Page 23: Software

    ELNEC s.r.o. Softw Detaile d description of Graphics user interface with touch screen Wait p lease screen Wait please screen is displayed on standalone's built-in LCD screen as the first screen after turning-on power. The screen is shown during booting up of operating system and starting of standalone control software Pg4uwMC.
  • Page 24 ELNEC s.r.o. LCD main screen Main screen consists of following parts: • Menu / File Device Programmer Options Help | • Table with information about programmer sites (site and serialization status) • Panel Next serial value • Panel Statistics • Recently selected device name •...
  • Page 25 ELNEC s.r.o. Next serial value When serialization is active, the panel displays current serialization mode and serialization number or label that will be used for next device programmed. Recent serial numbers used for each device are displayed in table Site and serialization status in column Serialization.
  • Page 26 ELNEC s.r.o. When option 1 is selected, dialog with list of project files present in [Projects] folder will appear. User can sele ct desired project and load the project by clicking on 'Load' button. Dialog can be closed by 'Ca ncel' button.
  • Page 27 ELNEC s.r.o. When option 1 is selected, the dialog with list of project files at specified drive and folder will appear. User can select desired drive, folder and project file and copy the selected project to the [Projects] folder by clicking on 'Copy' button. 'Change dir' button is used to change current directory to directory selected in 'Directory' list on the left side of alog.
  • Page 28 ELNEC s.r.o. File / Switch to Engineering mode Command is used to start Pg4uw control program in Engineering mode. In this mode, user can use Pg4uw software to select any device from the list of supported devices, set options for the device, load data files for device, test the device operations on any programmer site and create a project file which can be used in production mode.
  • Page 29 There is no need to use this menu command in normal operation. Situations, when the command is seful are: 1. when first starting BeeHive8S Stand-Alone multiprogramming system . when error message “Programmer Sites not found” is displayed In the dialog “Search Programmers”...
  • Page 30 ELNEC s.r.o. If search result is “No Programmers found”, please try to turn off Stand-Alone programmer, by menu “File / Shut down computer”, turn off the power button on the ack side of programmer, wait for 15 seconds or more and start programmer again. If search result is still “No Programmers found...
  • Page 31 ELNEC s.r.o. • On Automatic YES! Is always On • Off Automatic YES! Is always Off • Use Project settings Automatic YES! setting depends on relevant settings stored in project file When Automatic YES! mode is On, programmer sites are scanning their device sockets after device operation is com pleted.
  • Page 32 ELNEC s.r.o. operations will run on it. If th e check box #n is unchecked, the site #n is unselected, so no device operations will run on the Site. The sites can be s et as selected or unselected nytime needed, except d ng running device operation.
  • Page 33 ELNEC s.r.o. Main Log file name in Stand-Alone programmer can not be modified by user, it has defined value E:\Logs\reportmc.log where drive E: is placed on built-in disk of Stand- Alone programmer. Multiprogramming system generates a few Log files. One main Log file for program Pg4uwMC and Lo g files for each of the running Programmer Sites.
  • Page 34 ELNEC s.r.o. Display settings... Display settings dialog contains check box “Us e invert display mode”. When the checkbo x is checked, LCD scre en will be displayed in “ inverted” mode. Otherwise it will be displa yed in norma l mode.
  • Page 35 ELNEC s.r.o. Dialog Sounds settings allows user to select the sound mode of program. Program generates sounds after some activities, e.g. activities on device (programming, verifying, reading, etc.). Program generates sound also when warning or error message is displayed. User can now select sound from MS Windows system sound (requires installed sound card), PC speaker or No sound.
  • Page 36 ELNEC s.r.o. Statistics panel contains: three statistics values Good, Fail, Total. two Count down information values Ctdn status and value. Meaning of the values is: Good - number of operations which where successfully completed Fail - number of operations which where not successfully completed...
  • Page 37 ELNEC s.r.o. There is also available one special option - Keep "Load project" operation allowed. he option is set to disabled at default - it means the Load project operation button and menu will be disabled when Protected mode is active.
  • Page 38 ELNEC s.r.o. In this dialog user can browse for the “pg4uwarc” installation package he wishes to install. The installation package can be copied before, to shared Stand-Alone folder via network, or it can be stored on a USB key which can be plugged into USB port of Stand- Alone programmer.

  • Page 39: Administration Of Build In Pc

    Administration of build in PC troduction • BeeHive8S Stand-Alone multiprogramming system is powerful programmer equipped with Windows XP Embedded operating system (“OS”). There are two major kinds of administration of the OS – network and local. OS is configured with...
  • Page 40 ELNEC s.r.o. emote control Administering of BeeHive8S Stand-Alone multiprogramming system is performed hrough Microsoft “Remo te Desktop Connection”. Remote desktop offers fast and omfortable way to update software (control software and system ), distribute project iles ... ind and run “Remote Desktop Connection”...
  • Page 41 ELNEC s.r.o. Warning: Connecting to programmer in time, when programming devices is running, programming will be immediately terminated – your devices may not be fully programmed. Restart computer after you finish remote administering. Because work with remote desktop is similar to working on local station, please continue to read chapter “Local administration”.
  • Page 42 ELNEC s.r.o. With arrow keys (up or down) select “Windows Recovery” and press Enter. Recovery system will be started. Please be patient. This can take about four minutes. Then EULA license will show. Please read carefully this license agreement, close window, press “A”...

  • Page 43: Troubleshooting And Warranty

    Send the completed form by mail or fax to ELNEC (fax number in the control program, menu Help / About) or to your local dealer. If you send the form by fax please use black ink, a good pen and large letters! •...

  • Page 44: If You Have An Unsupported Target Device

    • Contact ELNEC direct, filling up a "Device Problem Report" form following the structions at the end of this form. We may need detailed data sheets of your target vice and, if possible, samples. The samples will be returned to you after we clude your target device in a new version of control software.

  • Page 45: Warranty Terms

    Elnec. The warranty conditions of Elnec sellers may differ depending on the targe country law system o r Elnec seller’s warranty policy.
  • Page 46 : +42151/77 34 328, 77 31 007, fax 77 32 797 www.elnec.com, e-mail (nospam version): elnec at elnec dot com ELNEC has used its best efforts to develop hardware and software that is stable and reliable. ELNEC does not guarantee that the hardware and software are free of "bugs", errors or defects.
