Connecting T51prog2 to PC

For T51prog2 order of connecting USB cable and power supply to programmer is irrelevant.
Problems related to the T51prog2
their removing
If you have any problems with T51prog2
notes please.

Manipulation with the programmed device

After selection of desired device for your work, you can insert into the open ZIF socket (the
lever is up) and close socket (the lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket on the programmer's cover. The
programmed device is necessary to insert into the socket also to remove from the socket
when LED BUSY light off.
Warning: T51prog2 programmer hasn't protection devices, which protect the content of
programmed device against critical situations, for example power failures and PC failure
(interrupted cable...). Moreover, a device is usually destroyed in the programming mode due
to forced interruption of the control program run (Reset or switching the computer off) due to
removing the connecting cable, or unplugging the programmed device from the ZIF socket.
Incorrectly placed device in the ZIF socket can cause its damage or destruction.

In-System serial programming by T51prog2

For general definition, recommendation and direction about ISP see section Common notes
/ ISP please.

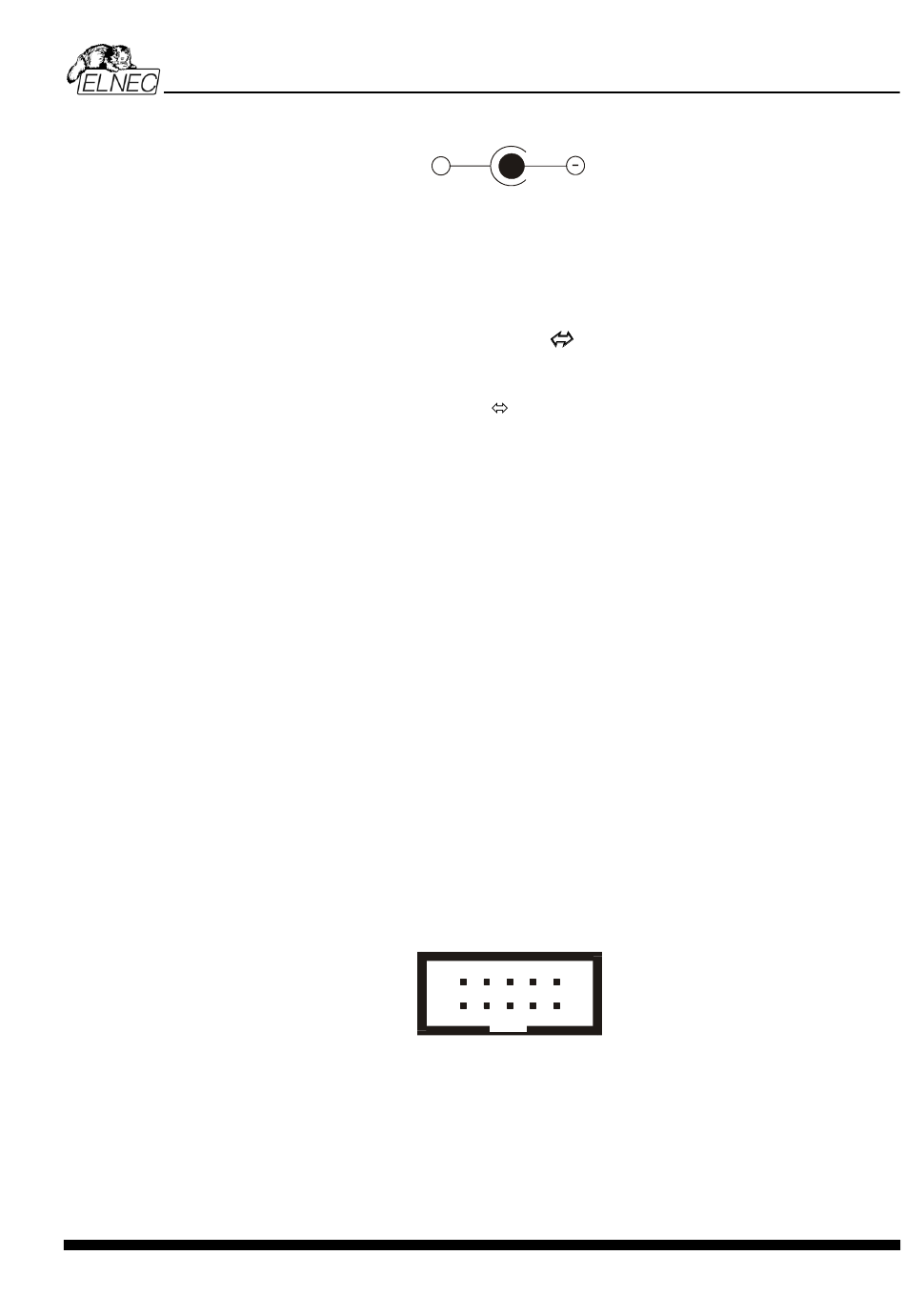

Description of T51prog2 ISP connector
Specification of ISP connector pins depends on the device, which you want to program. You
can find it in the control SW for programmer (Pg4uw), menu Device / Device Info (Ctrl+F1).
Be aware, the ISP programming way of respective device must be selected. It is indicated by
(ISP) suffix after name of selected device.
Power supply connector
+
6
2 4
1 3 5
Front view at ISP connector of programmer.
61
PC interconnection, and
PC interconnection, see section Common
8 10
7 9
T51prog2
