Elnec BeeHive208S User Manual

Extremely fast universal 8x 48-pindrive stand-alone concurrent multiprogramming system. internal pc is driven by microsoft windows embedded 8.1 industry pro
Hide thumbs Also See for BeeHive208S:
Table of Contents

Advertisement

Quick Links

Download this manual

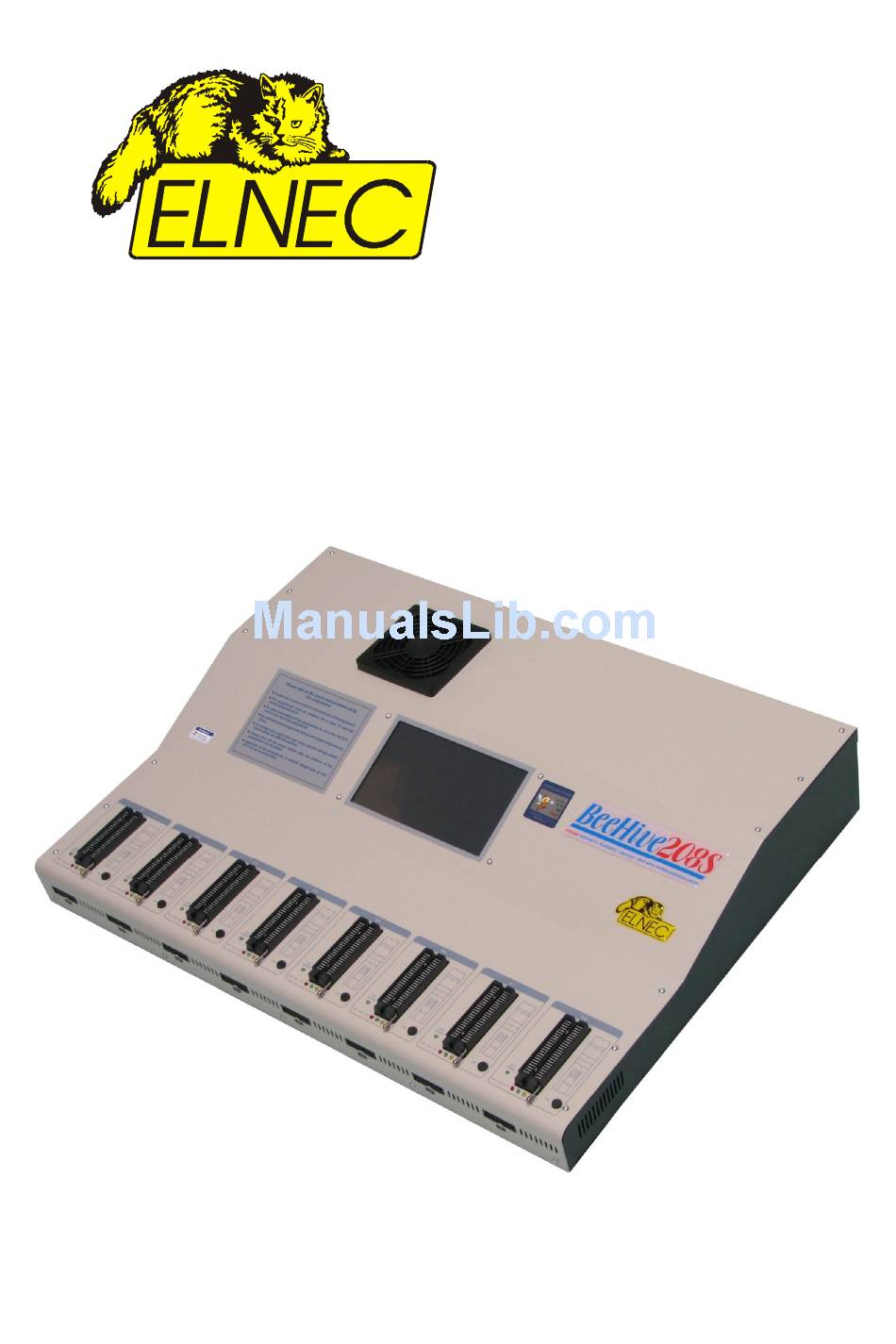

User manual for
BeeHive208S
Extremely fast universal 8x 48-pindrive Stand-Alone concurrent multiprogramming
system
Internal PC is driven by Microsoft Windows Embedded 8.1 Industry Pro
Elnec s.r.o.
Presov, Slovakia
September 2017
th
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BeeHive208S and is the answer not in the manual?

Questions and answers

Related Manuals for Elnec BeeHive208S

Summary of Contents for Elnec BeeHive208S

  • Page 1 User manual for BeeHive208S Extremely fast universal 8x 48-pindrive Stand-Alone concurrent multiprogramming system Internal PC is driven by Microsoft Windows Embedded 8.1 Industry Pro Elnec s.r.o. Presov, Slovakia September 2017...
  • Page 2 Elnec s.r.o. This document is copyrighted by Elnec s.r.o., Presov, Slovakia. All rights reserved. This document or any part of it may not be copied, reproduced or translated in any form or in any way without the prior written permission of Elnec s.r.o.

  • Page 3: Table Of Contents

    Elnec s.r.o. Table of contents Introduction ..........................4 BeeHive208S elements......................7 Manipulation with the programmed device................8 In-system serial programming by BeeHive208S ..............8 Selftest and calibration check ....................10 Technical specification ......................12 Programming a device ......................20 Engineering mode ........................20 Production mode ........................24 Software ............................27 Detailed description of Graphics user interface with touch screen........27...

  • Page 4: Introduction

    The operator merely removes the finished chip and inserts a new chip. Operator training is therefore minimized. BeeHive208S supports all kinds and types of silicon technology found in today’s and tomorrows programmable devices without family specific modules. You can be sure that...
  • Page 5 As a result, when used in production this programmer waits for an operator, and not the other way round. BeeHive208S provides the two banana jacks, one for ESD wrist strap connection for easy-to-implement ESD protection and the second one for connection to ground.
  • Page 6 Online technical support is available within promised 24 hours time limit or you may call us during business hours from Monday through Friday 8:30 to 17:30 (CET). Keep-Current is a service by which Elnec ships to you the latest version of the control program for programmer and the updated user documentation. A Keep- Current service is your hassle-free guarantee that you always have access to the latest software and documentation, at minimal cost.

  • Page 7: Beehive208S Elements

    Elnec s.r.o. BeeHive208S elements 48 pin ZIF socket work result LEDs power/sleep LED of site YES! Button ISP connector graphical control unit with touch screen fan's grid temperature controlled fans banana jack for connection to ground 10) banana jack for ESD wrist straps connection...

  • Page 8: Manipulation With The Programmed Device

    Don't unplug the target device from the ZIF socket during work with device (BUSY LED on). In-system serial programming by BeeHive208S Optimized advanced pindrivers deliver programming performance without overshoot or ground bounce for all device technologies. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low- voltage devices.
  • Page 9 Elnec s.r.o. H/L/read driver pins 3, 5, 7, 9, 11, 13 of ISP connector pin 14 of ISP connector drivers in programmer drivers in programmer pin of ISP connector Float pin of ISP connector Read YES! Pull-up/ Pull-down pins 15, 16 of ISP connector...

  • Page 10: Selftest And Calibration Check

    Use only attached ISP cable. When you use other ISP cable (other material, length…), programming may occur unreliable. BeeHive208S can supply programmed device (pin 1 of ISP connector) and target system (pins 19 and 20 of ISP connector) with limitation (see Technical specification / ISP connector).
  • Page 11 Elnec s.r.o. Selftest of programmer site Insert 48 pin diagnostic POD - type I into ZIF socket of the programmer. Take care about orientation of 48 pin diagnostic POD - type I (see top side of POD). Run selftest of programmer in PG4UW (menu Programmer / Selftest).

  • Page 12: Technical Specification

    Elnec s.r.o. Technical specification Specification (BeeHive208S multiprogramming system) 8x universal programming module (8x 48-pin DIL ZIF sockets and 8x ISP connector) operation result LEDs, LED power line power input 100-240VAC/60W max. banana jack for ESD wrist straps connection banana jack for connection to ground Specification (PC system inside of programmer) Microsoft Windows Embedded 8.1 Industry Pro operation system...
  • Page 13 Elnec s.r.o. ESD protection on each pin of ISP connector (IEC1000-4-2: 15kV air, 8kV contact) two output signals, which indicate state of work result = LED OK and LED Error (active level: min 1.8V) input signal, switch YES! equivalent (active level: max 0.8V)
  • Page 14 Elnec s.r.o. FPGA: FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion FPGA: Lattice: MachXO, MachXO2, LatticeXP, LatticeXP2, ispXPGA FPGA: Xilinx: Spartan-3AN Clocks: TI(TMS), Cypress Special chips: Atmel Tire Pressure Monitoring ATA6285N, ATA6286N; PWM controllers: Zilker Labs, Analog Devices; Multi-Phase ICs: IR(Chil Semiconductor);...
  • Page 15 Elnec s.r.o. Microcontrollers NXP (Philips) ARM7: LPC2xxx, MPT6xx, PCD807xx, SAF7780xxx series Microcontrollers NXP (Philips) ARM9: LPC31xx series Microcontrollers Pasat: TinyModule DIL40, DIL50 series Microcontrollers Scenix (Ubicom): SXxxx series Microcontrollers Syntek: STK6xxx series Microcontrollers Renesas: R8C/Tiny series, RX series, uPD70Fxxx, uPD78Fxxx...
  • Page 16 FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion FPGA: Lattice: MachXO, MachXO2, LatticeXP, LatticeXP2, ispXPGA Notes: For all supported devices see actual Device list at www.elnec.com. Package support support all devices in DIP with default socket package support includes DIP, SDIP, PLCC, JLCC, SOIC, SOP, PSOP, SSOP, TSOP, TSOPII, TSSOP, QFP, PQFP, TQFP, VQFP, QFN (MLF), SON, BGA, EBGA, FBGA, VFBGA, UBGA, FTBGA, LAP, CSP, SCSP etc.
  • Page 17 Elnec s.r.o. Programming speed Device Size [bits] Operation Time K8P6415UQB (parallel NOR Flash) 400100Hx16 (64 Mega) programming and verify 13 sec MT29F1G08ABAEAWP (parallel NAND Flash) *2 8400000Hx8 (1 Giga) programming and verify 51 sec THGBM3G4D1FBAIG (eMMC NAND Flash) *2 2048 MB x8 (16 Giga)

  • Page 18: Supported File Formats

    5°C ÷ 35°C (41°F ÷ 95°F) humidity 20%..80%, non condensing Package included Standard accessories BeeHive208S programmer 48 Pins diagnostic POD – Type I (1x) diagnostic POD for ISP connector #2 (1x) 48 Pins Calibration test POD, Type I (1x)
  • Page 19 Elnec s.r.o. Additional services Keep Current. AlgOR free technical support (phone/fax/e-mail). free lifetime software update via Web site.

  • Page 20: Programming A Device

    It is the same time proven software, as is used for all other Elnec single-site programmers. Engineers can use all properties of this software and can make a project for mass production.
  • Page 21 Elnec s.r.o. Make a project Connect external display, keyboard and mouse to PC connectors on back side of programmer. Turn on programmer. Run the control program: double click on icon. Find BeeHive208S Site (programmer): <Ctrl+F> or right click on panel Programmer...
  • Page 22 Elnec s.r.o. Select BeeHive208S, Site and then click on “Connect” button. Select site. Select desired BeeHive208S Site# and then click on “OK” button Select device: click on icon and select desired device...
  • Page 23 Elnec s.r.o. Load data into buffer from file: click on icon. Set Device operation options Set desired operations for the device and then click on “OK” button To customize device use menu <Alt+S> Set desired settings for the device and then click on “OK” button...

  • Page 24: Production Mode

    You can make a project on other Elnec programmers (BeeProg2…) too. For more details see Help for PG4UW (single site driver) and “User manual for all Elnec programmers”. The latest manual may be found at www.elnec.com...
  • Page 25 Elnec s.r.o. When the built-in computer is turned on the operating system will start booting- up, cooling fans should start to work, and “Wait please” screen should be displayed on graphical control unit. Starting of the operating system can take some time normally this time is shorter than 1 minute.
  • Page 26 Elnec s.r.o. Blank check Verify Program Erase For more details about predefined device operations, see chapter Menu Device / Predefined operation. Insertion of devices in programmer sockets and start device operations 17. Insert devices into programmer sockets and press Run <operation> button on touch screen.

  • Page 27: Software

    Elnec s.r.o. Software Detailed description of Graphics user interface with touch screen Wait please screen Wait please screen is displayed on standalone's built-in LCD screen as the first screen after turning-on power. The screen is shown during booting up of operating system and starting of standalone control software PG4UWMC.
  • Page 28 Elnec s.r.o. LCD main screen Main screen consists of following parts: Menu: File Device Programmer Options Help Table with information about programmer sites (site and serialization status) Panel Next serial value Panel Statistics Recently selected device name Recent project name Checksum of data stored in data buffer for currently selected device button Run...
  • Page 29 Elnec s.r.o. Next serial value When serialization is active, the panel displays current serialization mode and serialization number or label that will be used for next device programmed. Recent serial numbers used for each device are displayed in table Site and serialization status in column Serialization.
  • Page 30 Elnec s.r.o. When option 1 is selected, dialog with list of project files present in [Projects] folder will appear. User can select desired project and load the project by clicking on 'Load' button. Dialog can be closed by 'Cancel' button. Also basic information about selected project file can be displayed by clicking 'File info' button.
  • Page 31 Elnec s.r.o. When option 1 is selected, the dialog with list of project files at specified drive and folder will appear. User can select desired drive, folder and project file and copy the selected project to the [Projects] folder by clicking on 'Copy' button. 'Change dir' button is used to change current directory to directory selected in 'Directory' list on the left side of dialog.
  • Page 32 Elnec s.r.o. File / Switch to Engineering mode Command is used to start PG4UW control program in Engineering mode. In this mode, user can use PG4UW software to select any device from the list of supported devices, set options for the device, load data files for device, test the device operations on any programmer site and create a project file which can be used in production mode.
  • Page 33 Situations, when the command is useful are: 1. when first starting BeeHive208S Stand-Alone multiprogramming system 2. when error message “Programmer Sites not found” is displayed In the dialog “Search Programmers” use button “Search” to search for attached programmers.
  • Page 34 Elnec s.r.o. If search result is “No Programmers found”, please try to turn off Stand-Alone programmer, by menu “File / Shut down computer”, turn off the power button on the back side of programmer, wait for 15 seconds or more and start programmer again. If the search result is still “No Programmers found”, please refer to troubleshooting...
  • Page 35 Elnec s.r.o. When Automatic YES! mode is On, programmer sites are scanning their device sockets after device operation is completed. The control program can detect removing of programmed device and insertion of new device and afterwards automatically start (repeat) recent operation on new device. So operator does not need to press any key or button, to program next device.
  • Page 36 Elnec s.r.o. Menu Options Options / Switch to Operator Mode... Switch to Administrator Mode Program PG4UWMC is set by default to Administrator Mode. It means, no operation blocking for user is applied. But in production, there is suitable to block some menu commands, to ensure, user does not modify important program settings or configuration.
  • Page 37 Elnec s.r.o. project load. To enable Load project command again, Administrator Mode of PG4UWMC must be entered. To switch program from Operator Mode back to Administrator Mode, use the menu command Options / Switch to Administrator Mode... The "Password required" dialog appears.
  • Page 38 Elnec s.r.o. Log file... Log file settings screen looks as following: Log file is text file containing information about PG4UWMC control program operation flow, which means information about loading project files, device operation types and device operation results. Main Log file name in Stand-Alone programmer can not be modified by user, it has defined value E:\Logs\reportmc.log where drive E: is placed on built-in disk of Stand-...
  • Page 39 Elnec s.r.o. < log_file_name><-yyyy-mmm-dd>.<log_file_extension> The new part representing the date consists of yyyy - year, mmm - month and dd - day. Example: Log file name is E:\Logs\reportmc.log The final log file name with added date will look like this July, 7th, 2007): E:\Logs\reportmc-2007-jul-07.log...
  • Page 40 Elnec s.r.o. Display backlight allows user to control backlight intensity. Border style offers options to set color for unused part of LCD screen (left and right borders). Touchpad calibration... Command is used for calibration of built-in touch pad, part of built-in LCD touch screen.
  • Page 41 Elnec s.r.o. Options / Statistics... Command displays dialog “Statistics”. Statistics gives the information about actual count of device operations, which were proceeded on selected type device. If one device is corresponding to one device operation, e.g. programming, the number of device operations will be equal to the number of programmed devices.
  • Page 42 Elnec s.r.o. Options / View Log... Command displays content of current Log window. At top right corner is the button [x], which is used for closing the Log window and displaying of main screen. Options / Reset all settings... When menu Reset all settings is used, Password required dialog will appear, and user will be prompted to enter randomly generated number.
  • Page 43 Elnec s.r.o. Help / Update software... This important menu command allows users to make software updates. After selecting this item, program will display question “Are you sure?”. If user confirms the question with answer Yes, dialog “Select installation package” will be displayed.

  • Page 44: Administration Of Build In Pc

    Windows Embedded 8.1 Industry Pro operating system (“OS”). There are two major kinds of administration of the OS – network and local. OS is configured with two users accounts admin operator. Credentials for BeeHive208S Stand-Alone multiprogramming system users are: Login Password Administrator admin...

  • Page 45: Remote Control

    Elnec s.r.o. Remote control Administering of BeeHive208S Stand-Alone multiprogramming system is performed through Microsoft “Remote Desktop Connection”. Remote desktop offers fast and comfortable way to update software (control software and system), distribute project files ... Find and run “Remote Desktop Connection” program on your computer. In “Computer”...
  • Page 46 How to make changes in system permanent If you want persistently save changes on your BeeHive208S follow these steps: run "uwfmgr.exe filter disable" (needed admin rights if you are login as operator, for example with "runas" command from operator account, or login as admin).
  • Page 47 Elnec s.r.o. System restore System restore performs refreshing of programmer operating system to state as it was shipped from factory. Before operating system recovery, connect monitor to programmer, and kindly report what you see to programmer manufacturer. To perform operating system recovery you must have connected keyboard, mouse and display.
  • Page 48 Elnec s.r.o. Recovery starts formatting of disks, and installation of control program. When first part of recovery finish, press any key, and system will be restarted. First start of the operating system after recovery may be a bit longer, with two additional restart.

  • Page 49: Troubleshooting And Warranty

    Send the completed form by mail or fax to Elnec (fax number in the control program, menu Help / About) or to your local dealer. If you send the form by fax please use black ink, a good pen and large letters! •...

  • Page 50: Hardware Warnings

    • Contact Elnec direct, filling up a "Device Problem Report" form following the instructions at the end of this form. We may need detailed data sheets of your target device and, if possible, samples. The samples will be returned to you after we include your target device in a new version of control software.

  • Page 51: Maintenance

    The warranty does not apply to any damage of programmer or its part caused by dust or dirt. Contact Elnec if you prefer to order this service by manufacturer. Warning: The ZIF socket of the programmer and the socket converters are considered as consumables.
  • Page 52 So there is a limited warranty of one year on all computer parts such as touch screen, motherboard, CPU, HD, ..If the product is diagnosed as defective, Elnec s.r.o. or the authorized repair centre will repair or replace defective parts at no charge. Parts used for replacement and/or whole programmer are warranted only for the reminder of the original warranty period.
