These specifications correspond with Microchip application note: In-Circuit Serial
Programming™ (ICSP™) Guide. Used application note you may find on www.elnec.com,
section Support / Application Notes.
Note: Pin no. 1 is signed by triangle scratch on ISP cable connectors.
Warnings:
• When you use PIKprog2 as ISP programmer, don't insert device to ZIF socket.
• When you program devices in ZIF socket, don't insert ISP cable to ISP connector.
• Use only attached ISP cable. When you use other ISP cable (other material, length...),
programming may occur unreliable.
• PIKprog2 can supply programmed device only, but target system cannot supply
PIKprog2.
• PIKprog2 apply programming voltage to target device and checks his value (target system
can modify programming voltage). If the programming voltage is different as expected, no
action with target device will be executed.

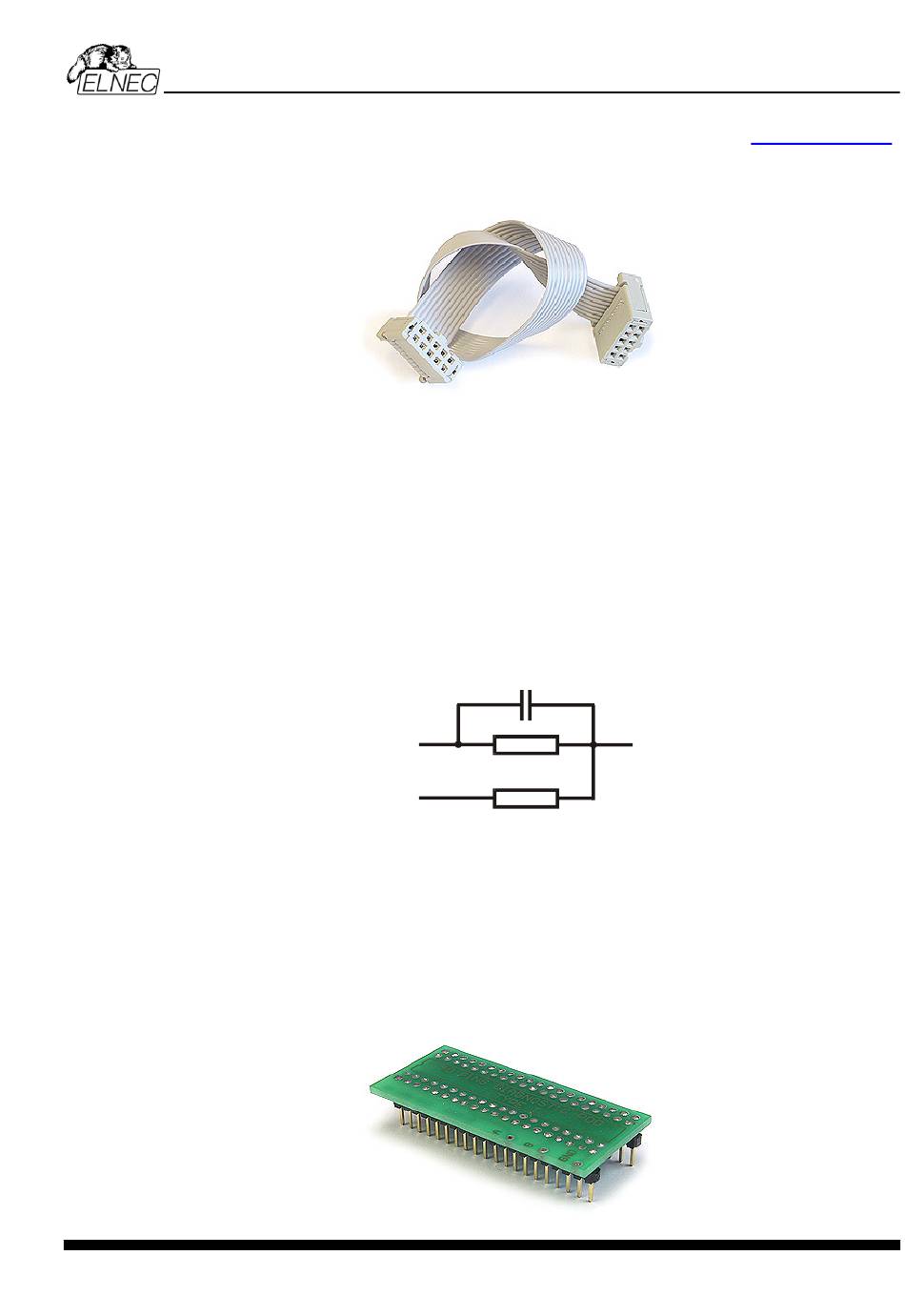

Note: H/L/read PIKprog2 driver

Selftest

If you feel that your programmer does not react according to your expectation, please run the
programmer selftest using Diagnostic POD, enclosed with the standard delivery package.
• Insert 40 pins diagnostic POD - type I into ZIF socket of the programmer. 40 pins
diagnostic POD - type I must be inserted as 40 pins device.
• Run selftest of programmer in Pg4uw (Programmer / Selftest plus).
ISP cable of PIKprog2
H/L/read driver
in programmer
PU/PD driver
in programmer
C1=1nF, R1=1k3, R2=22k
69
C1
R1
pin of ISP
connector
R2
PIKprog2
