Button Help
Button is used to display this help.

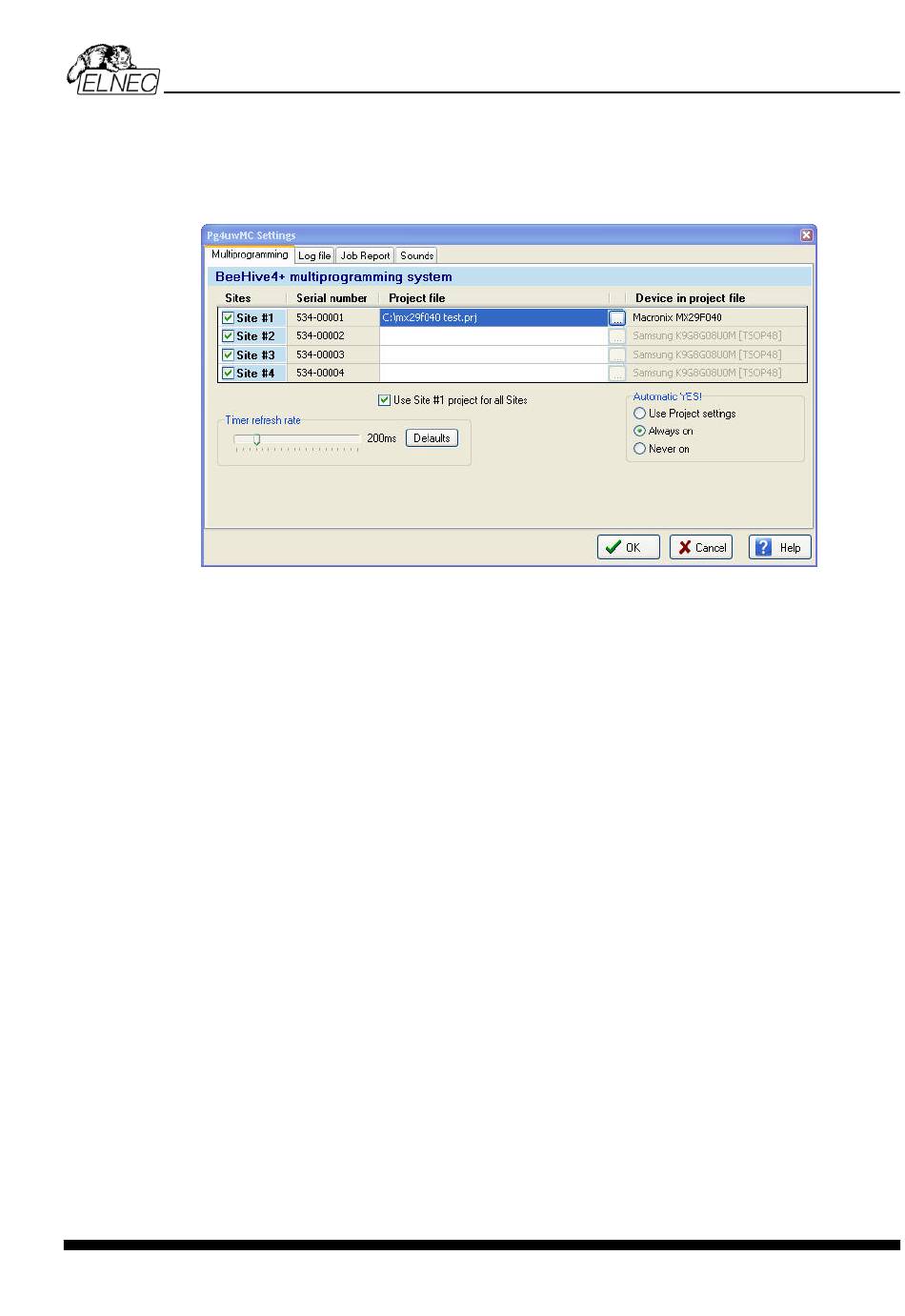

Pg4uwMC Settings dialog
Pg4uwMC Settings dialog is used to set or display following options:
• table containing information / settings for Programmer Sites: Site numbers, Site serial
numbers, Site associated Project files
• checkbox Use Site #1 project for all Sites
• checkbox Automatic YES!
• panel Timer refresh rate settings
• panel Log file settings
Table containing information / settings for Programmer Sites
On the top of Pg4uwMC Control panel is table which contains three columns:
• column Sites contains checkboxes with Site numbers #1, #2, #3, #4 used to
enable/disable using individual Programmer Site with specified Site number
• column Serial number contains information about serial numbers for Programmer Sites
• column Project file contains edit lines Project: #1, Project: #2, ...Project: #4 for setting
individual projects to be loaded after running each Pg4uw. Project file names can be
entered manually or by dialog Select project file, which can be opened for each Site by
clicking on button "..." placed on the right side of each project edit line. If the project name
edit line is blank, the automatic project load will not be performed.
Checkbox Use Site #1 project for all Sites
Checkbox Use Site #1 project for all Sites placed under the Sites numbers and Projects table.
When there is requirement to program the same device types with the same data, the
checkbox should be checked.
• If the checkbox is checked, the project file for Site #1 will be used also for all other
Programmer Sites. In this mode all Sites are using the same shared buffer of project data
and program the same device type.
