C) Connection of pins 15 and 16 when are configured as logical signal needed for ISP
programming
D) E) When pins 15 and 16 are configured as status of LED OK and LED ERROR
D) before first action with desired ISP device
E) after first action with desired ISP device
Notes: When LED OK or LED ERROR ON (shine), this status is presented as logical H, level
of H is 1,8V - 5V depend on H level of desired ISP device.
When LED OK or LED ERROR OFF (not shine), this status is presented as logical L, level of
L is 0V - 0,4V.
The above mentioned values are provided to understand (and also to exactly calculate) the
value of resistors, which isolate (separate) the programmed chip and target system.
Specification of ISP connector pins depends on the device, which you want to program. You
can find it in the control SW for programmer (Pg4uw), menu Device / Device Info (Ctrl+F1).
Be aware, the ISP programming way of respective device must be selected. It is indicated by
(ISP) suffix after name of selected device.
These specifications correspond with application notes published of device manufacturers.
Used application notes you may find on www.elnec.com, section Support / Application
Notes.
Note: Pin no. 1 is signed by triangle scratch on ISP cable connectors.
Warnings:
• Use only attached ISP cable. When you use other ISP cable (other material, length...),
programming may occur unreliable.
• BeeHive204 / BeeHive4+ can supply programmed device (pin 1 of ISP connector) and
target system (pin 19, 20 of ISP connector) with limitation (see Technical specification /
ISP connector).
• BeeHive204 / BeeHive4+ apply programming voltage to target device and checks his
value (target system can modify programming voltage). If the programming voltage is
different as expected, no action with target device will be executed.

Selftest and calibration check

If you feel that your programmer does not react according to your expectation, please run the
programmer (ISP connector) selftest using Diagnostic POD (Diagnostic POD for ISP
connectors #2), enclosed with the standard delivery package.

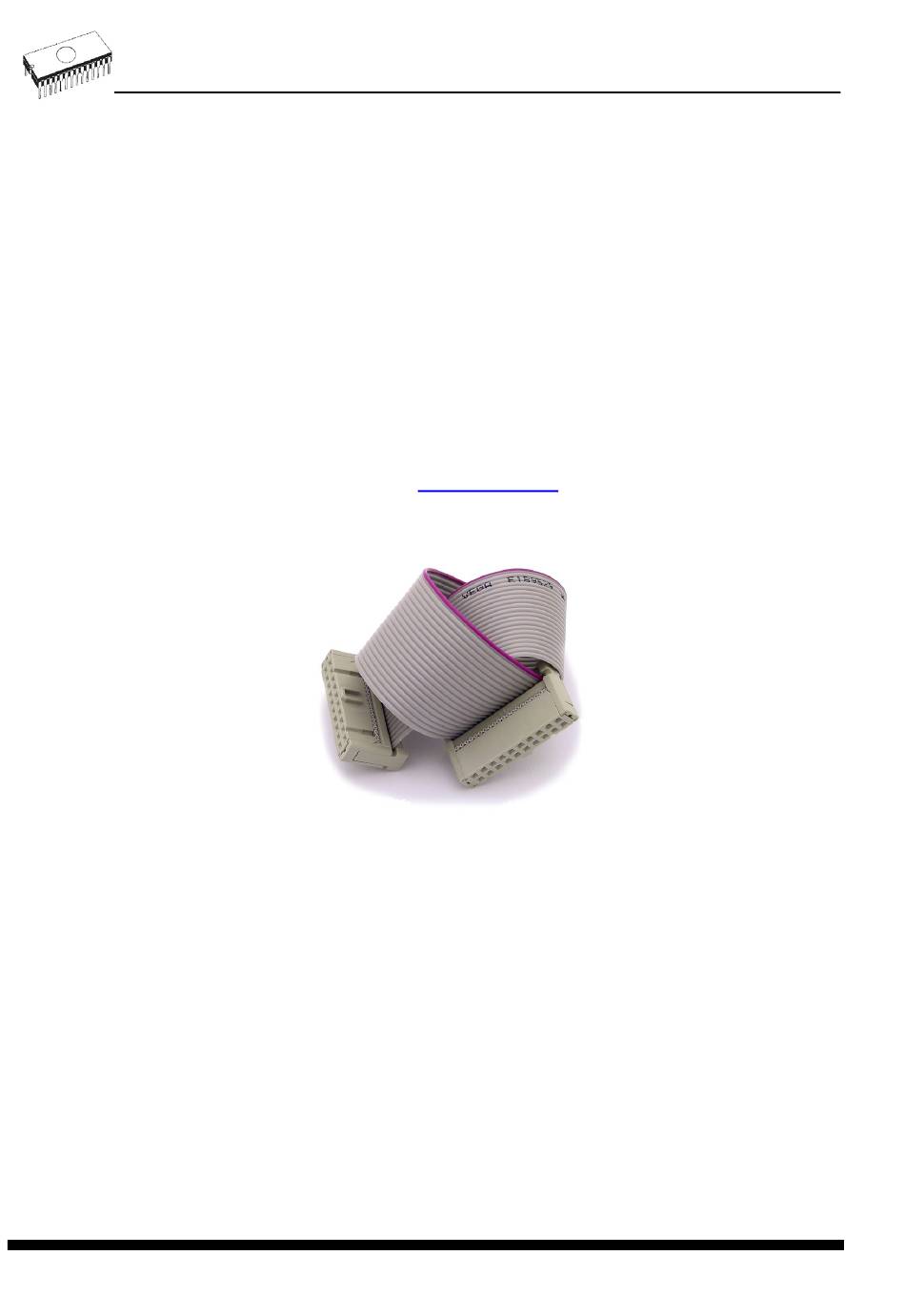

BeeHive204 / BeeHive4+ ISP cable
