Note: When using device socket adapters with some passive or active parts, for example
capacitors for bypassing supply voltage, the Automatic YES! function may need to set these
pins to Pins with capacitors list. This is necessary to make Automatic YES! function working
properly. Otherwise Automatic YES! function will "think" the pins are still connected and it will
not allow user to insert new device and start new programming.
Programmer / Selftest
Command executes a selftest of current programmer without diagnostic POD. We strongly
recommend execute also Programmer / Selftest plus of programmer, because Selftest
procedure without diagnostic POD is not able to check whole programmer and to discover (if
exist) some special errors.
Programmer / Selftest plus
Command executes a selftest plus of current programmer using diagnostic POD, which is
included in standard delivery of programmer.
Recommendations how often run Selftest plus you can find at Maintenance section.
Programmer / Self test ISP connector
Command executes a selftest of ISP connector of current programmer using diagnostic POD
for ISP connectors.
Diagnostic POD for ISP connectors is necessary to use for testing 6 and 10-pin ISP
connectors of programmers. Diagnostic POD for ISP connectors is available as optional
accessories for programmers with 6-pin and 10-pin ISP connector (BeeProg, SmartProg2,
SmartProg, PIKprog2, PIKprog+, T51prog2 and T51prog). The order number: 70-0208

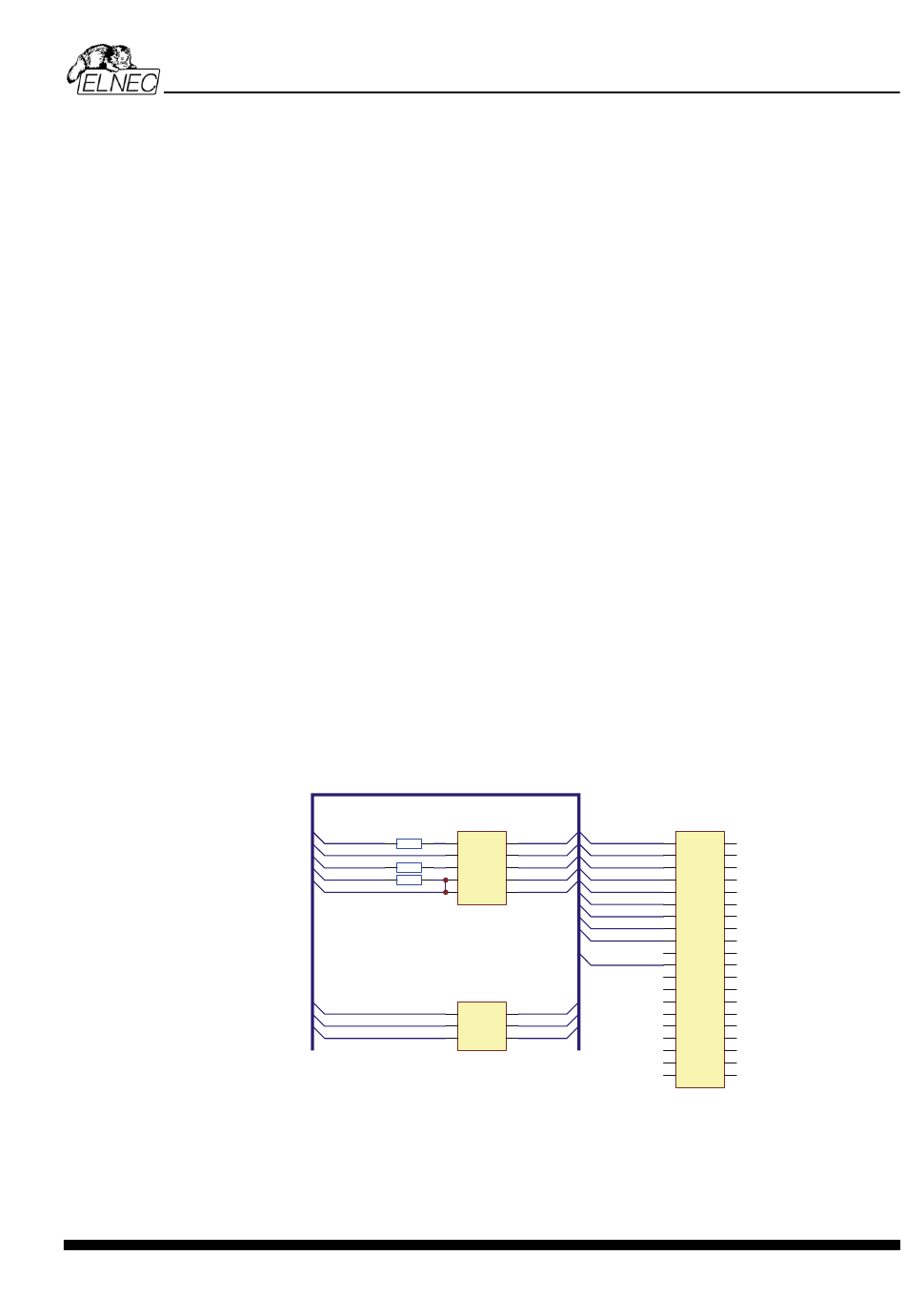

Schematic of Diagnostic POD for ISP connector (if you are in hurry):
HR1A 47R
HR1B 47R
HR1C 47R
Sequence for testing 6 pins ISP connector:
1. Insert Diagnostic POD for ISP connectors into ZIF socket of the programmer. Diagnostic
POD for ISP connectors must be inserted as 40 pins device.
1 2
ZIF7
1 2
ZIF4
3 4
3 4
ZIF9
5 6
6 5
ZIF1
7 8
ZIF2
9 10
J2
HARTING 09185106324
ZIF3
1 2
ZIF5
3 4
ZIF4
5 6
J3
HARTING 09185066324
135
J1
DIP40 to ZIF socket
ZIF3 ZIF1
1 40
ZIF5
ZIF2
2 39
ZIF6
ZIF3
3 38
ZIF8 ZIF4
4 37
ZIF11 ZIF5
5 36
ZIF6
6 35
ZIF7
7 34
ZIF8
8 33
ZIF9
9 32
10 31
ZIF11
11 30
12 29
13 28
14 27
ZIF6
15 26
ZIF8
16 25
ZIF2
17 24
18 23
19 22
20 21
