Connecting Smartprog2 To Pc; Manipulation With The Programmed Device - Elnec MEMprog2 User Manual

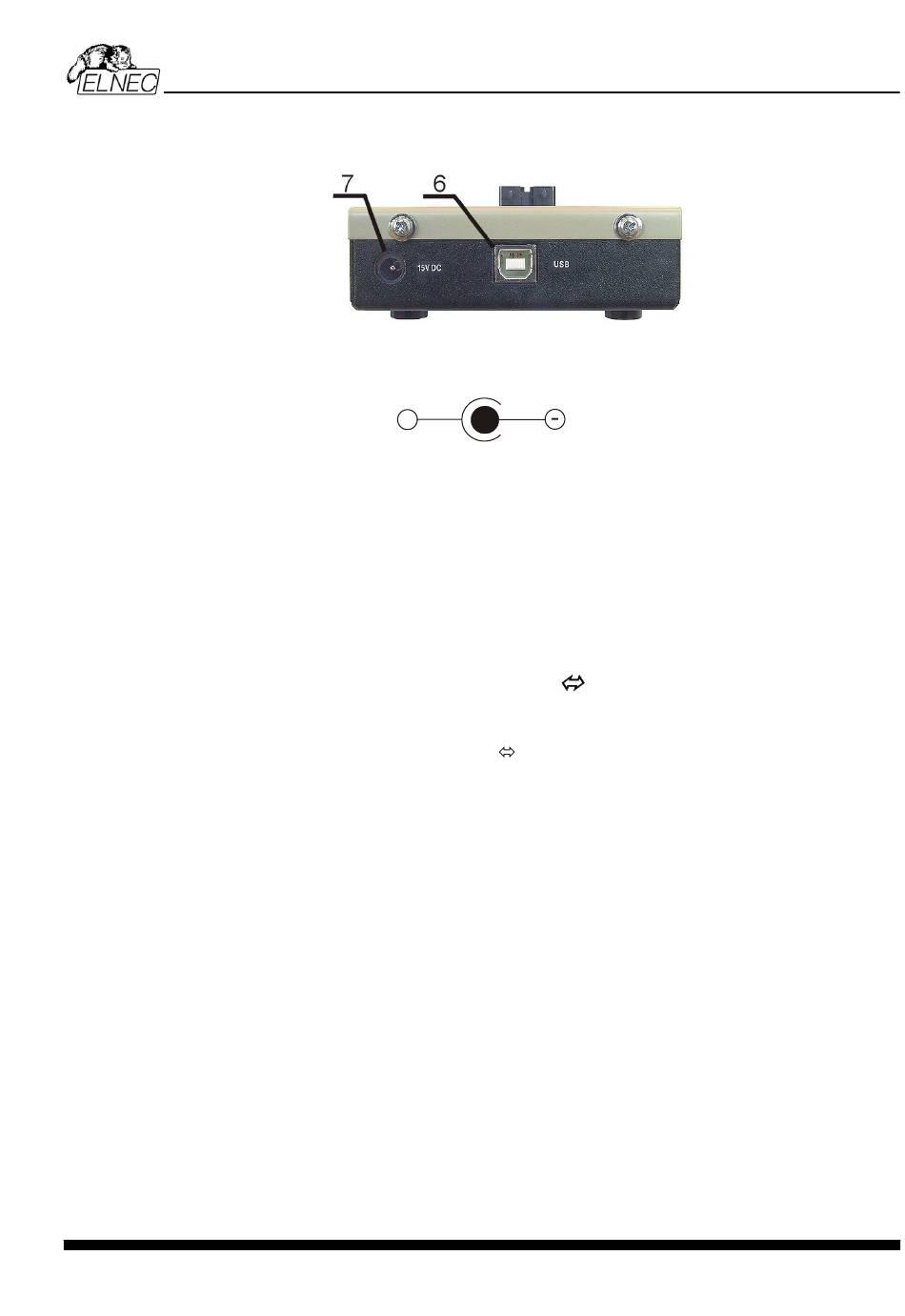

USB connector for PC ↔ SmartProg2 communication cable
6)
7) Power supply connector
Note: Due to low power consumption of SmartProg2 in inactive state, it doesn't require power
switch. When the power LED indicator glows with a low intensity the SmartProg2 is in inactive
mode.

Connecting SmartProg2 to PC

For SmartProg2 order of connecting USB cable and power supply to programmer is
irrelevant.
Problems related to the SmartProg2
their removing
If you have any problems with SmartProg2
notes please.

Manipulation with the programmed device

After selection of desired device for your work, you can insert into the open ZIF socket (the
lever is up) and close socket (the lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket on the programmer's cover. The
programmed device is necessary to insert into the socket also to remove from the socket
when LED BUSY light off.
Warning: SmartProg2 programmer hasn't protection devices, which protect the content of
programmed device against critical situations, for example power failures and PC failure
(interrupted cable...). Moreover, a device is usually destroyed in the programming mode due
to forced interruption of the control program run (Reset or switching the computer off) due to
removing the connecting cable, or unplugging the programmed device from the ZIF socket.
Incorrectly placed device in the ZIF socket can cause its damage or destruction.
Power supply connector
+
PC interconnection, see section Common
45
PC interconnection, and
SmartProg2
