Manipulation With The Programmed Device; In-System Serial Programming By Beeprog2 / Beeprog - Elnec MEMprog2 User Manual

Problems
interconnection, and their removing
If you have any problems with BeeProg2 / BeeProg+
Common notes please.

Manipulation with the programmed device

After selection of desired device for your work, you can insert into the open ZIF socket (the
lever is up) and close socket (the lever is down). The correct orientation of the programmed
device in ZIF socket is shown on the picture near ZIF socket on the programmer's cover. The
programmed device is necessary to insert into the socket also to remove from the socket
when LED BUSY light off.
Note: Programmer's protection electronics protect the target device and the programmer
itself against either short or long-term power failures and, partly, also against a PC failure.
However, it is not possible to grant the integrity of the target device due to incorrect, user-
selected programming parameters. Target device may be not destroyed by forced interruption
of the control program (reset or switch-off PC), by removing the physical connection to the
programmer, but the content of actually programmed cell may remains undefined. Don't
unplug the target device from the ZIF socket during work with device (LED BUSY shine).
In-system serial programming by BeeProg2 /
BeeProg+
For general definition, recommendation and direction about ISP see section Common notes
/ ISP please.
Description of ISP connector
related to the
2
1

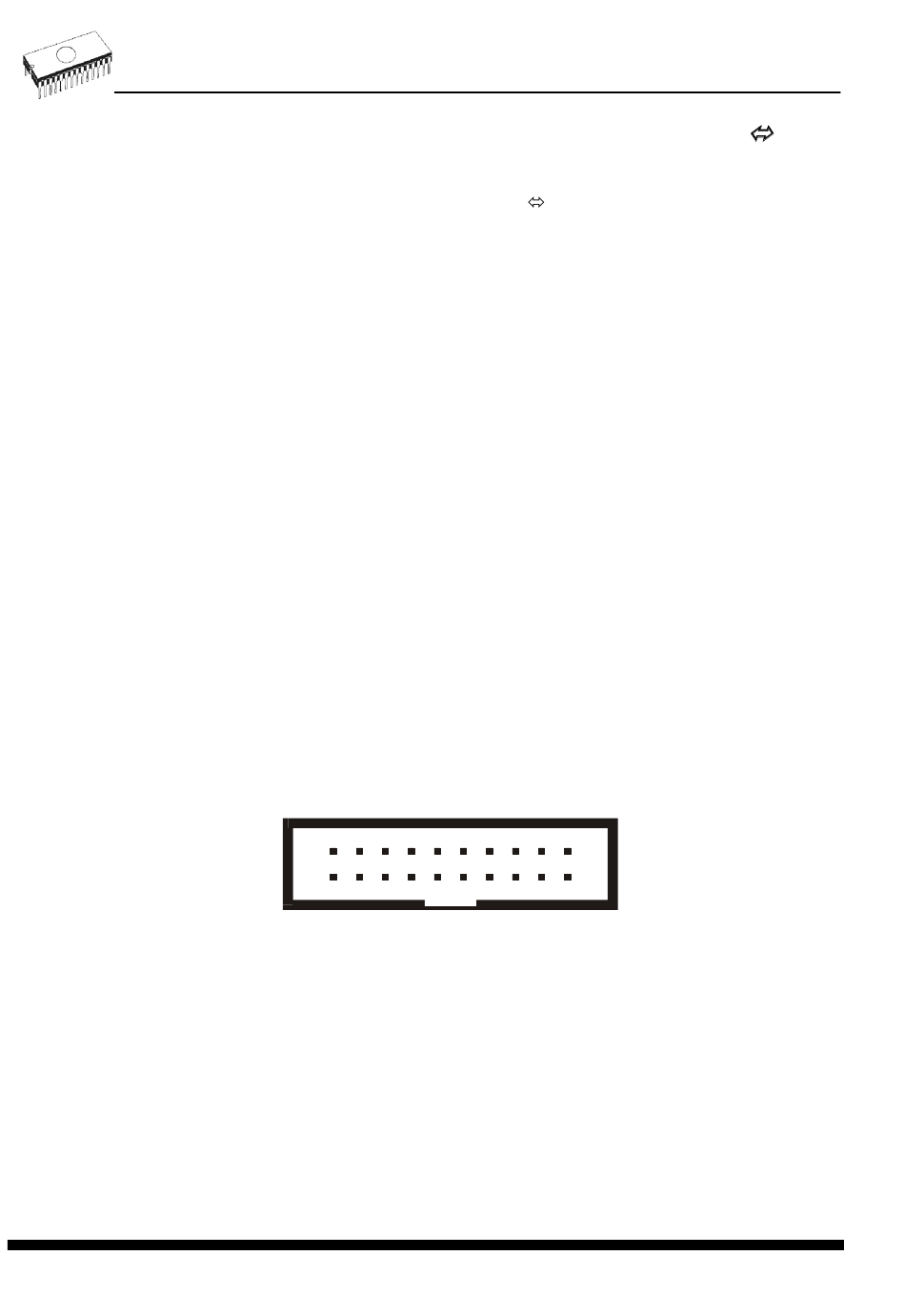

Front view at ISP connector of programmer.
BeeProg2
4 6 8 10 12 14 16
3 5 7 9 11 13 15
34
/ BeeProg+
PC interconnection, see section
18 20
17 19
