Part 3: Power Supply
The power input voltage of the development board is DC5V, The
schematic diagram of the power supply design on the AX7010 FPGA
development board is shown in Figure 3-1
CN1
5V 电源
输入
9 / 48
ZYNQ FPGA Development Board AX7010 User Manual
Figure 2-1: FPGA Size Dimension
SW1
F1
保险丝
电源开关

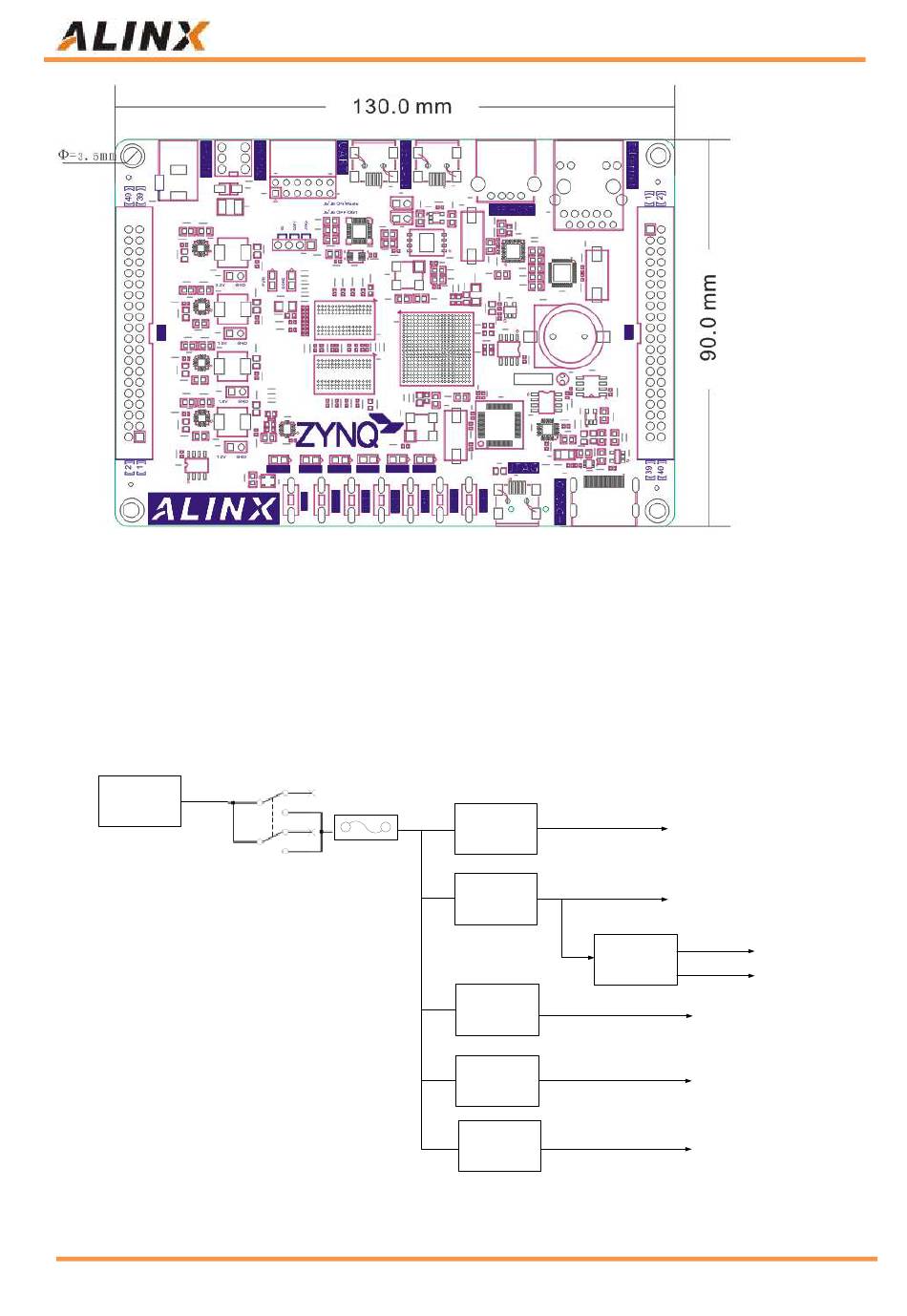

Figure 3-1: Power Supply Schematic
Amazon Store: https://www.amazon.com/alinx
U26
3.3V/3A
TLV62130R
GT
U25
1.5V/3A
TLV62130R
GT
U32
TPS51200
U24
TLV62130R
1.8V/3A
GT
U23
TLV62130R
1.0V/3A
GT
SPX3819M5
VCCIO/0.5A
-3-3
VTT
VREF
