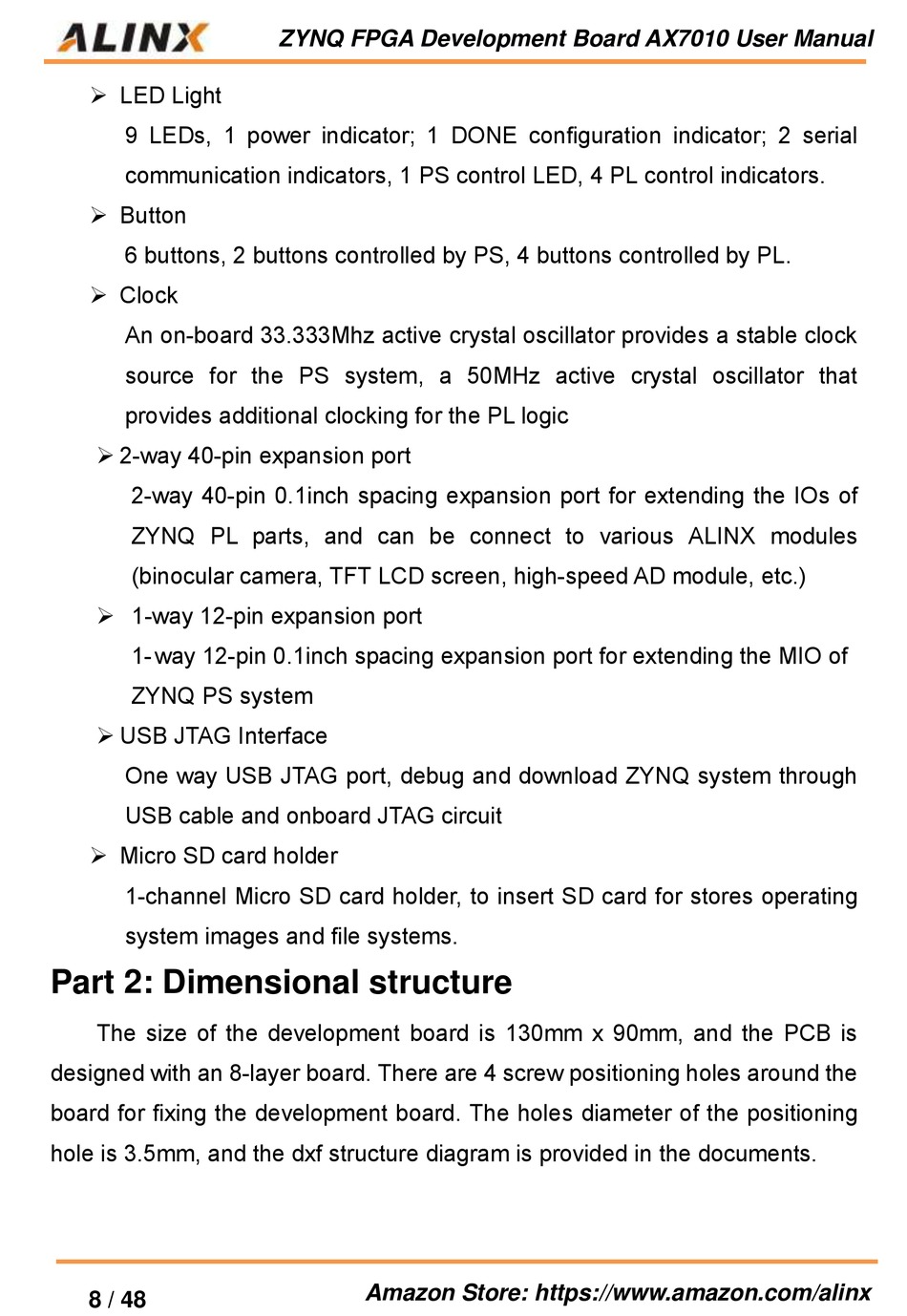

 LED Light
9 LEDs, 1 power indicator; 1 DONE configuration indicator; 2 serial
communication indicators, 1 PS control LED, 4 PL control indicators.
 Button
6 buttons, 2 buttons controlled by PS, 4 buttons controlled by PL.
 Clock
An on-board 33.333Mhz active crystal oscillator provides a stable clock
source for the PS system, a 50MHz active crystal oscillator that
provides additional clocking for the PL logic
 2-way 40-pin expansion port
2-way 40-pin 0.1inch spacing expansion port for extending the IOs of
ZYNQ PL parts, and can be connect to various ALINX modules
(binocular camera, TFT LCD screen, high-speed AD module, etc.)
 1-way 12-pin expansion port
1- way 12-pin 0.1inch spacing expansion port for extending the MIO of
ZYNQ PS system
 USB JTAG Interface
One way USB JTAG port, debug and download ZYNQ system through
USB cable and onboard JTAG circuit
 Micro SD card holder
1-channel Micro SD card holder, to insert SD card for stores operating
system images and file systems.

Part 2: Dimensional structure

The size of the development board is 130mm x 90mm, and the PCB is
designed with an 8-layer board. There are 4 screw positioning holes around the
board for fixing the development board. The holes diameter of the positioning
hole is 3.5mm, and the dxf structure diagram is provided in the documents.
