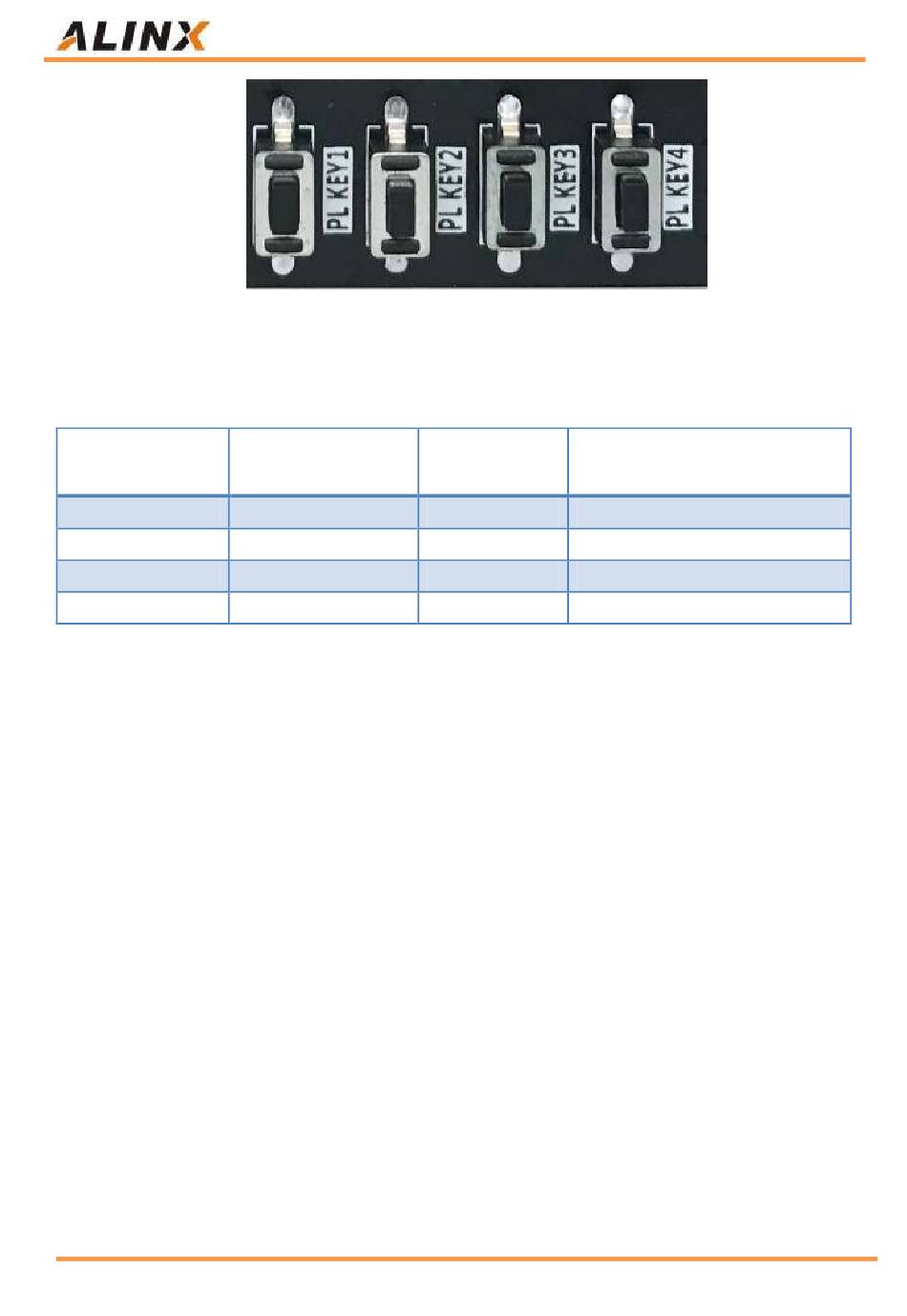

Figure 7-16: PL User Buttons on the FPGA Board
PL User LEDs pin assignment:
Signal Name
KEY1
KEY2
KEY3
KEY4
48 / 48
ZYNQ FPGA Development Board AX7010 User Manual
ZYNQ Pin Name
IO_L21P_T3_35
IO_L21P_T3_35
IO_L20P_T3_34
IO_L19N_T3_34
Amazon Store: https://www.amazon.com/alinx
ZYNQ
Pin
Number
N15
N16
T17
R17
Description
PL User Button PL KEY1
PL User Button PL KEY2
PL User Button PL KEY3
PL User Button PL KEY4
