samples of the clock.

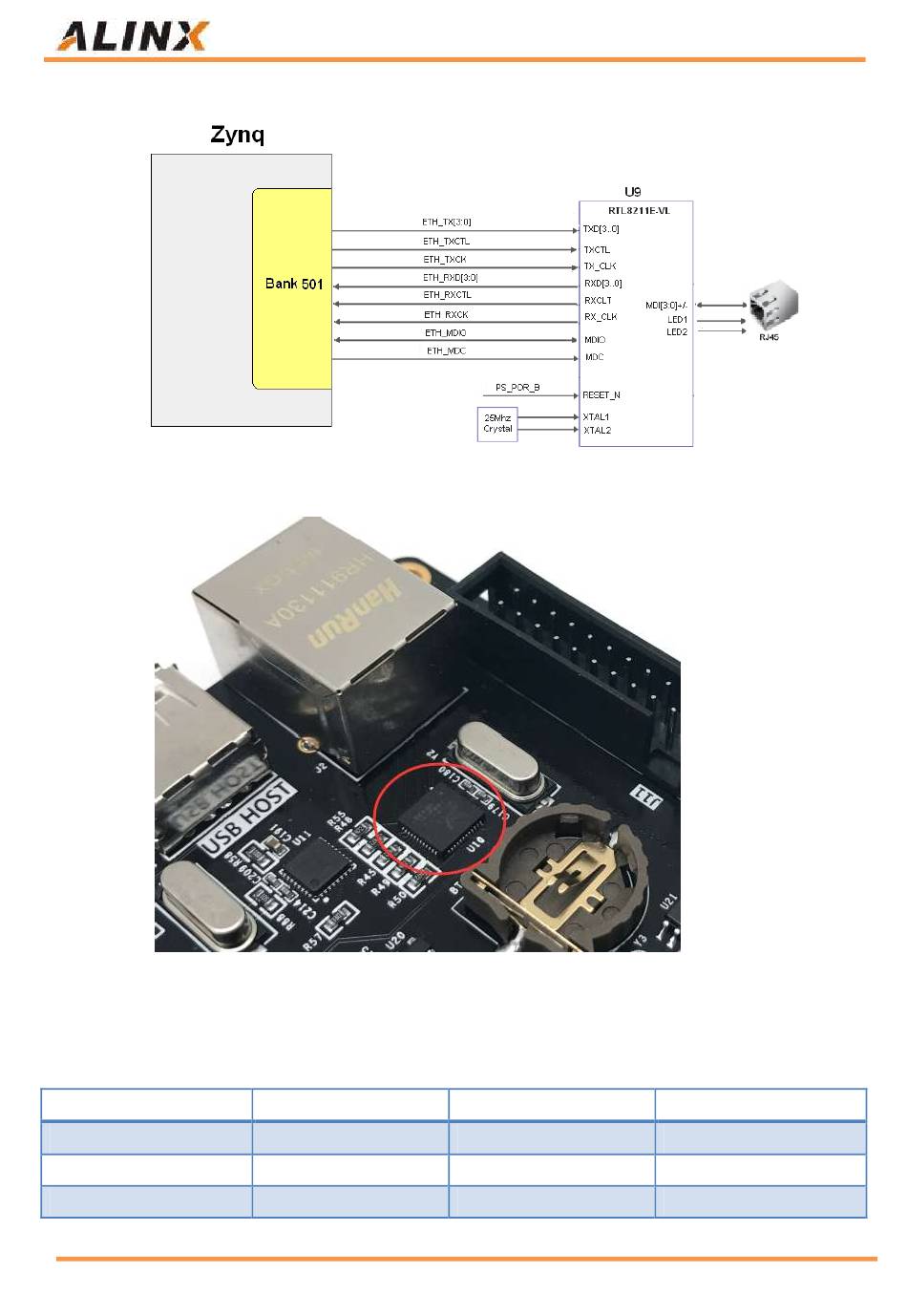

Figure 6-4: The connection of the ZYNQ and GPHY chip
Figure 6-5: The GPHY chip on FPGA Board
The Gigabit Ethernet pin assignments are as follows:
Signal Name
ETH_GCLK
ETH_TXD0
ETH_TXD1
26 / 48
ZYNQ FPGA Development Board AX7010 User Manual
ZYNQ Pin Name
PS_MIO16_501
PS_MIO17_501
PS_MIO18_501
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin Number
A19
E14
B18
Description
RGMII Transmit Clock
Transmit data bit0
Transmit data bit1
