Part 1: FPGA Development Board Introduction

The AX7010 FPGA development board uses Xilinx's Zynq7000 series of
chips, model XC7Z010-1CLG400C, in a 400-pin FBGA package. The
ZYNQ7000 chip can be divided into a processor system part (PS) and a
programmable logic part (PL). On the AX7010 development board, the PS and
PL sections of the ZYNQ7000 are equipped with a wealth of external interfaces
and devices for user convenience and functional verification. In addition, the
Xilinx USB Cable downloader circuit is integrated on the AX7010 FPGA
development board, so users can download and debug the AX7010 FPGA
development board with a USB cable.

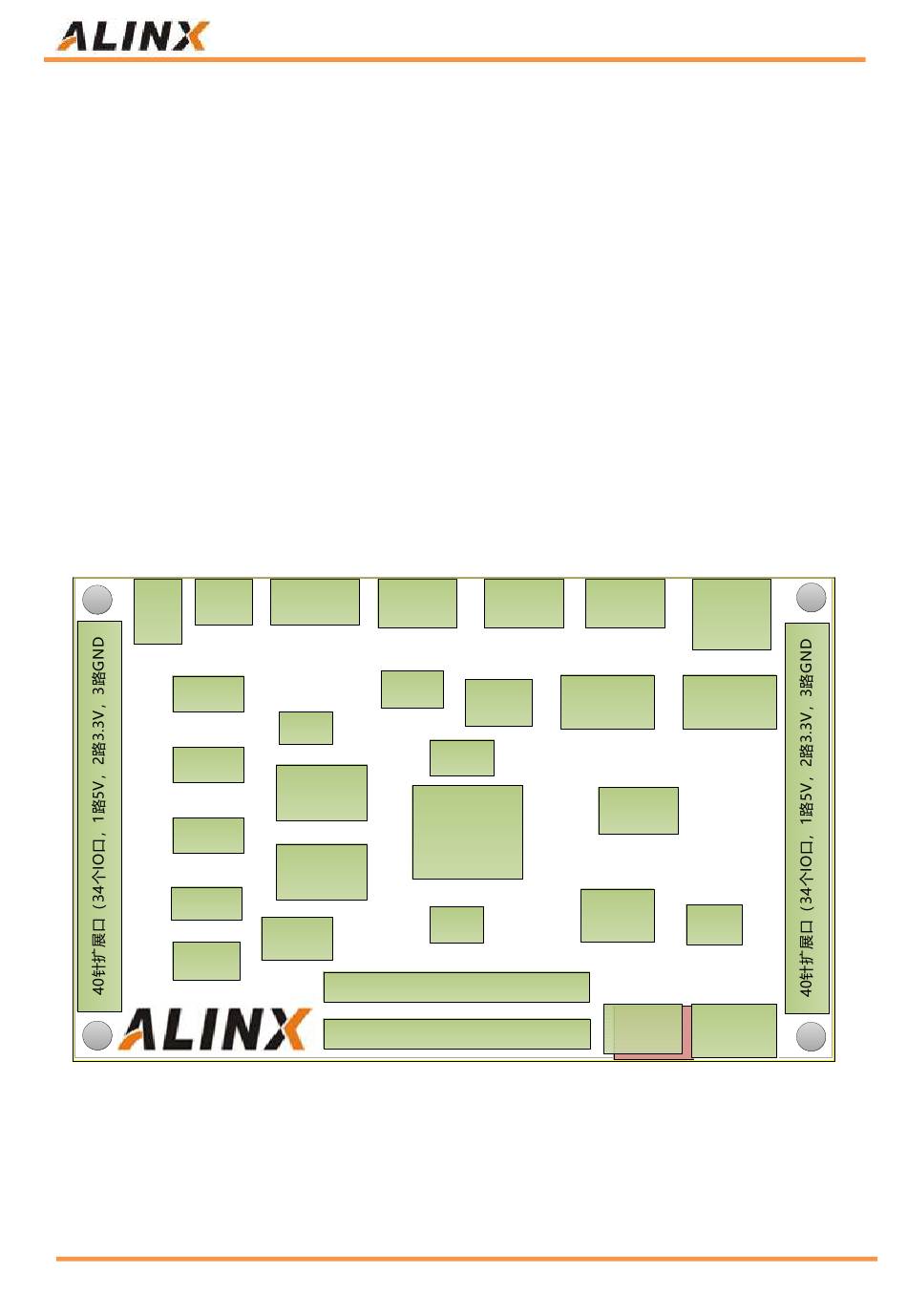

Figure 1-1 is the Schematic diagram of the entire AX7010 FPGA
development board:
电源
+5V
开关
电源
接口
3.3V电源
1.5V电源
1.8V 电源
1.0V电源
EEPROM
24LC04
Figure 1-1: The Schematic Diagram of the AX7010
Through this diagram, you can see the interfaces and functions that the
AX7010 FPGA Development Board contains:
6 / 48
ZYNQ FPGA Development Board AX7010 User Manual
串口
PMOD接口
接口
USB转
串口
电源
指示灯
33.33M
256MByte
DDR3
ZYNQ7000
XC7Z010-
1CLG400C
256MByte
DDR3
DDR电源
2个PS LED灯，4个PL LED灯
1个复位键，2个PS按键，4个PL按键
Amazon Store: https://www.amazon.com/alinx
USB USB
OTG 接口
USB2.0
QSPI
芯片
FLASH
晶振
实时时钟
JTAG调试
50M
芯片
晶振
千兆
网口
千兆以太网
芯片
电平
转换
USB
HDMI Micro
Micro SD
调试口
SD卡座 输出
卡槽
