ZYNQ FPGA Development Board AX7010 User Manual
communicates via the IIC bus. The onboard EEPROM is to learn how to
communicate with the IIC bus. The I2C signal of the EEPROM is connected to
the BANK14 IO port on the ZYNQ PL side. Figure 7-5 below shows the design
of the EEPROM

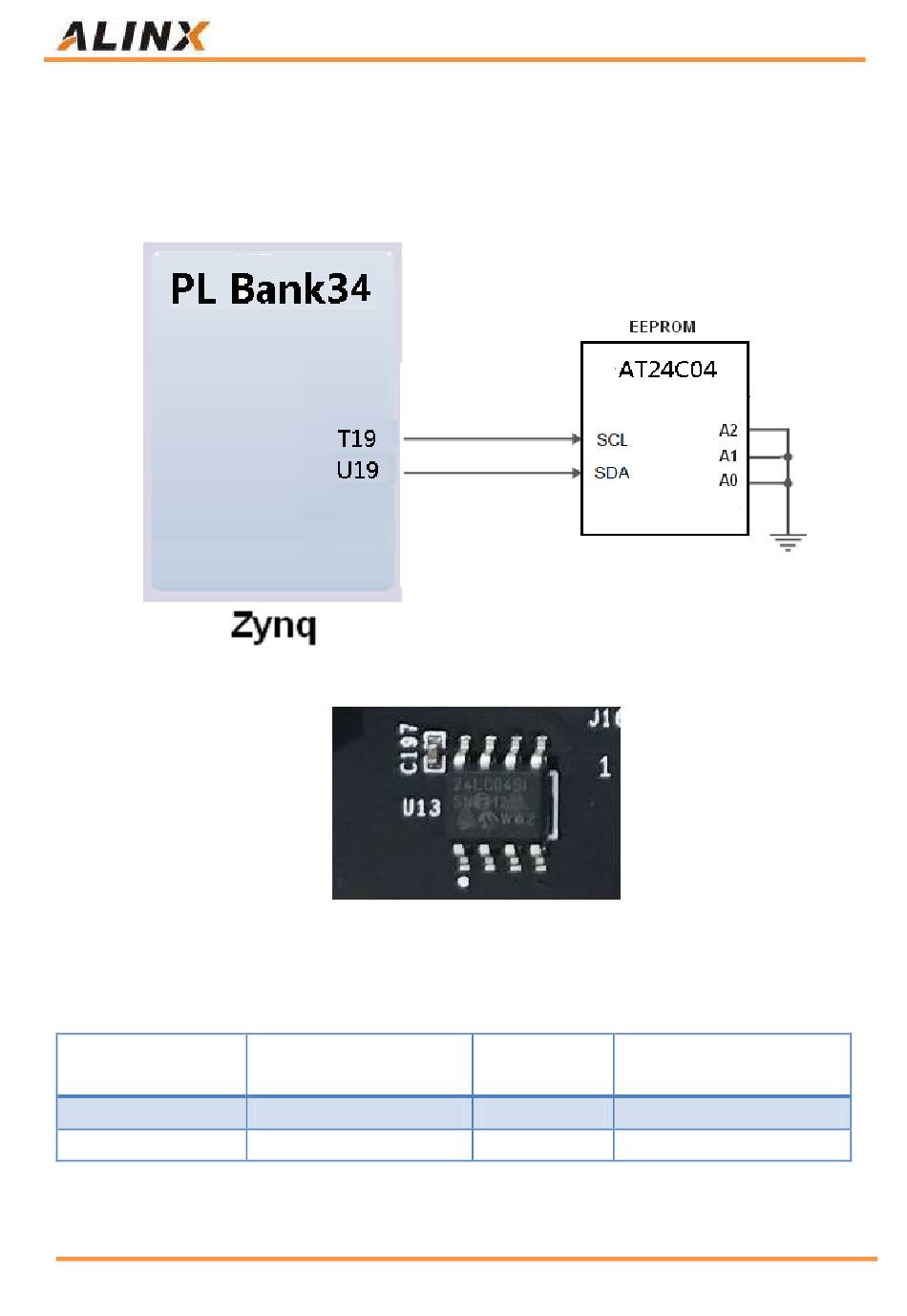

Figure 7-5: EEPROM Schematic
Figure 7-6: EEPROM on the FPGA Board
EEPROM Pin Assignment
Signal Name
ZYNQ Pin Name
ZYNQ Pin
Description
Number
EEPROM_I2C_SCL
IO_25_34
T19
IIC Clock Signal
EEPROM_I2C_SDA
IO_L12N_T1_MRCC_34
U19
IIC Data Signal
Amazon Store: https://www.amazon.com/alinx
38 / 48
