Part 7：ZYNQ Programmable Logic (PL)
peripherals

Part 7.1: HDMI Interface

HDMI, full name is the high definition multimedia video output interface.
AX7010 development board, differential IO of FPGA is directly connected to the
differential signal and clock of HDMI interface, realizes differential transfer of
HMDI signal in parallel and encodes and decodes in FPGA, realizes
transmission solution of DMI digital video input and output, up to 1080P@ 60Hz
input and output functions.
The HDMI signal is connected to the BANK34 of the PL part of ZYNQ.
Figure 7-1 is the HDMI design schematic. When the development board is
used as an HDMI display device (HDMI IN), the HDMI signal is used as an
input, and the HPD (hot plug detect) signal is used as an output. When the
development board is used as an HDMI master (HDMI OUT), the opposite is
true.
35 / 48
ZYNQ FPGA Development Board AX7010 User Manual

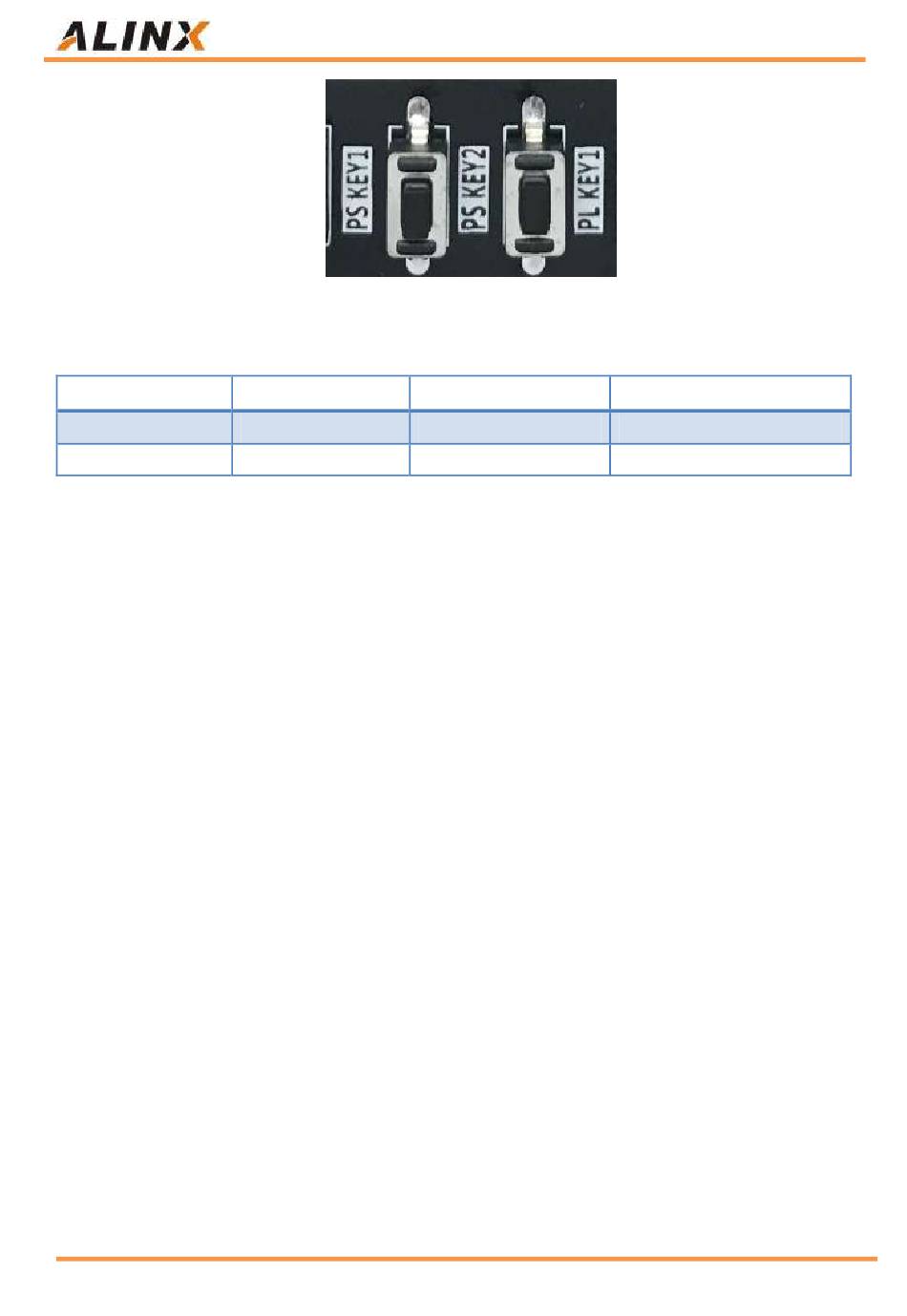

Figure 6-17: PS User Buttons on the FPGA Board
ZYNQ Pin Name
PS_MIO50_501
PS_MIO51_501
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin Number
B13
B9
Description
PS User Button KEY1
PS User Button KEY2
